5-20 Z Master Z400 Service Manual
5
ENGINE

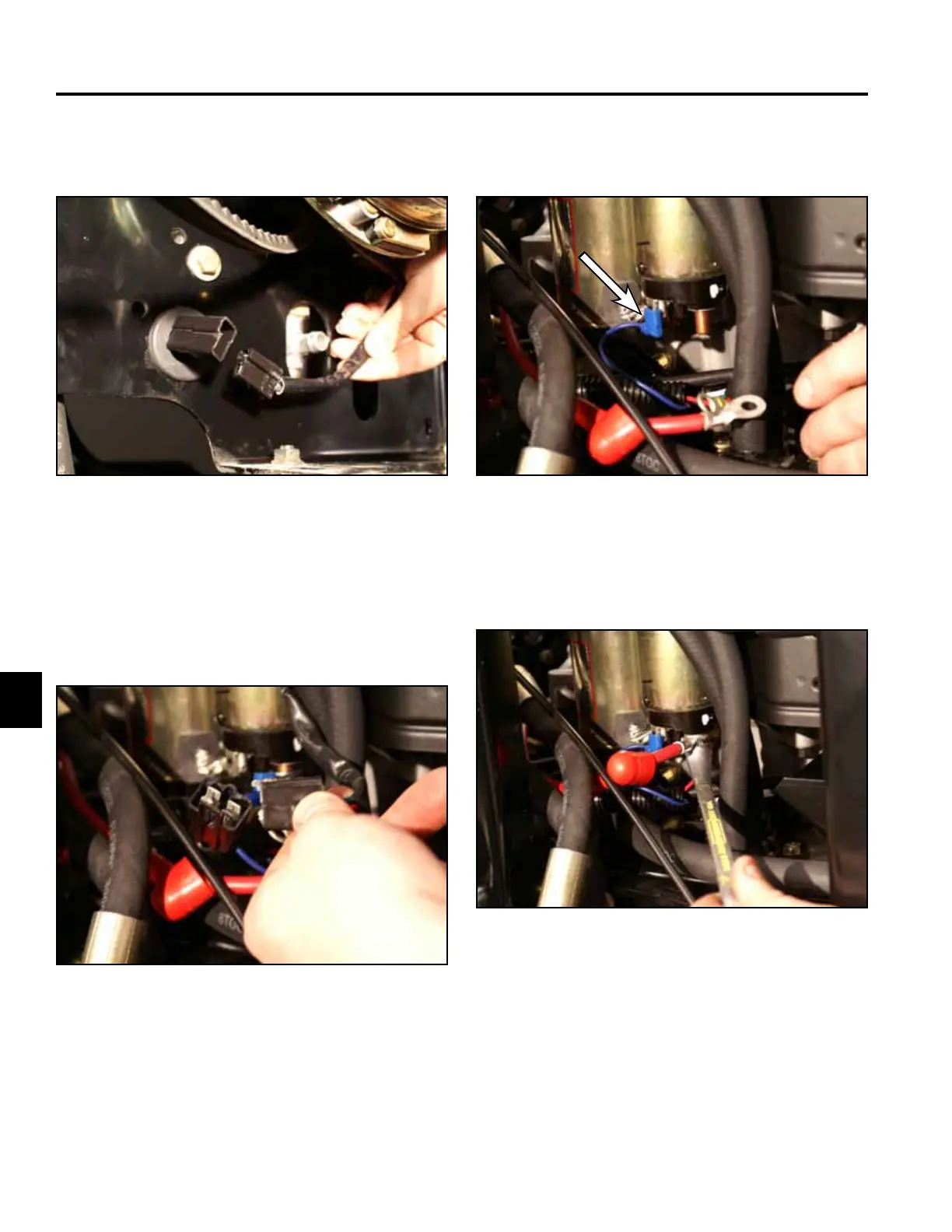

10. Plug the clutch pigtail harness into the main harness
(Fig. 280).
Fig 280 PICT-0100a
11. Install the mower drive belt onto the electric PTO
clutch. Refer to Replacing the Mower Deck Drive
Belt page 7-24.
12. Plug in the engine wiring harness (Fig. 281).
Fig 281 PICT-0285
Fig 283 PICT-0283
14. Connect the red wires onto the starter solenoid (Fig.
283).
Fig 282 PICT-0284
13. Connect the blue wire onto the starter solenoid (Fig.
282).
