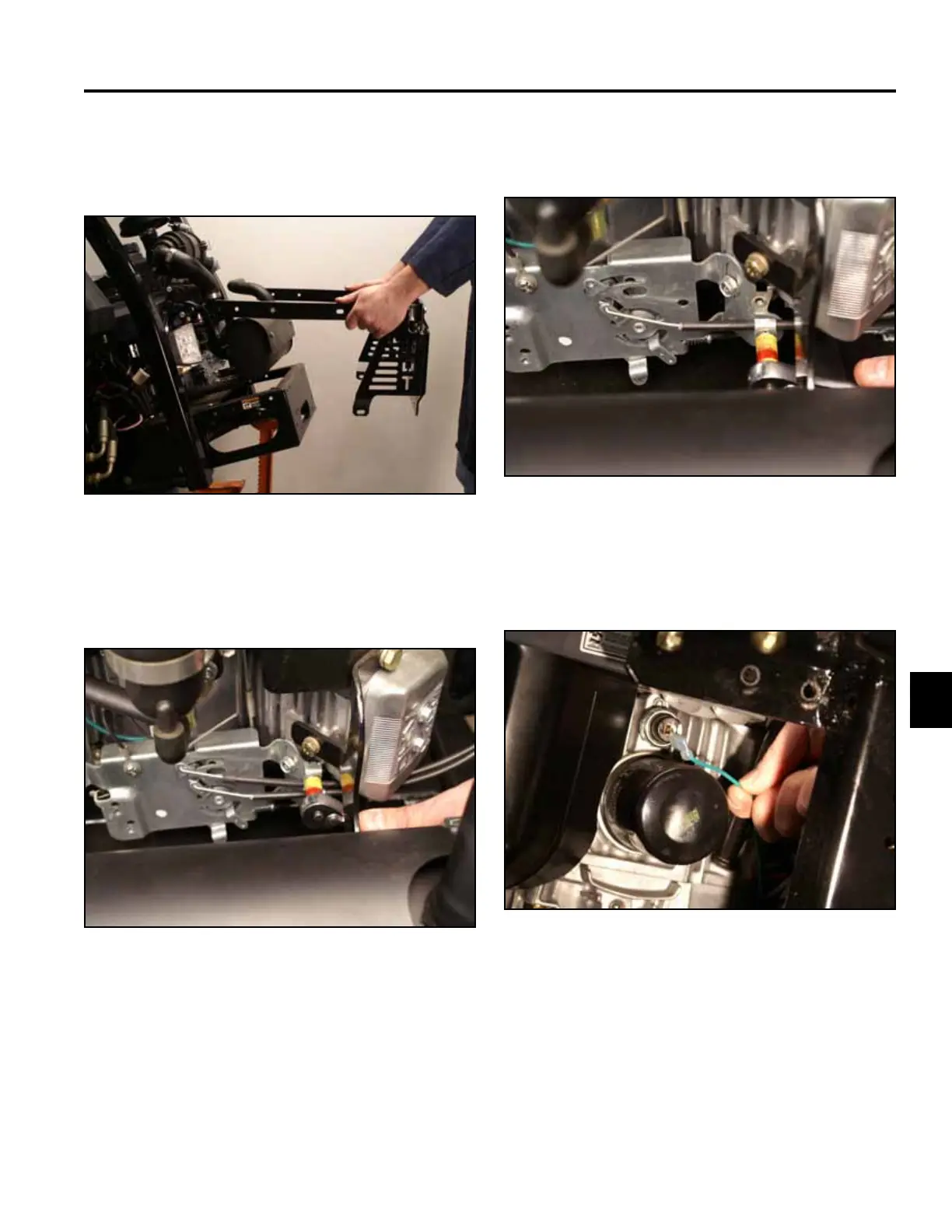

6. Remove the 9 sets of fasteners holding the right
handmuferguardandguardstraptotheframe.
Removethemuferguardassembly(Fig.338).
Fig 338 PICT-0400
ENGINE
Fig 340 PICT-0402
8. Remove the bottom cable clamp and disconnect the
throttle cable (Fig. 340).
Fig 339 PICT-0401
7. Remove the top cable clamp and disconnect the
choke cable (Fig. 339).
9. Remove the green oil sending wire from the oil
pressure switch (Fig. 341).
Fig 341 PICT-0404
