2.7 Loading the Media
This section describes how to load the media in the printer. This printer is
intended for printing label (without liner) rolls. Please use TOSHIBA
TEC CORPORATION approved media.
NOTES:
1. The size of the media which can be loaded inside the printer is as
follows:
Outer roll diameter: Max. 127mm (5”)
Inner core diameter: 40 (1.57”) mm
2. Use the outside wound type media and load it so that the print side
faces up.
Outside wound

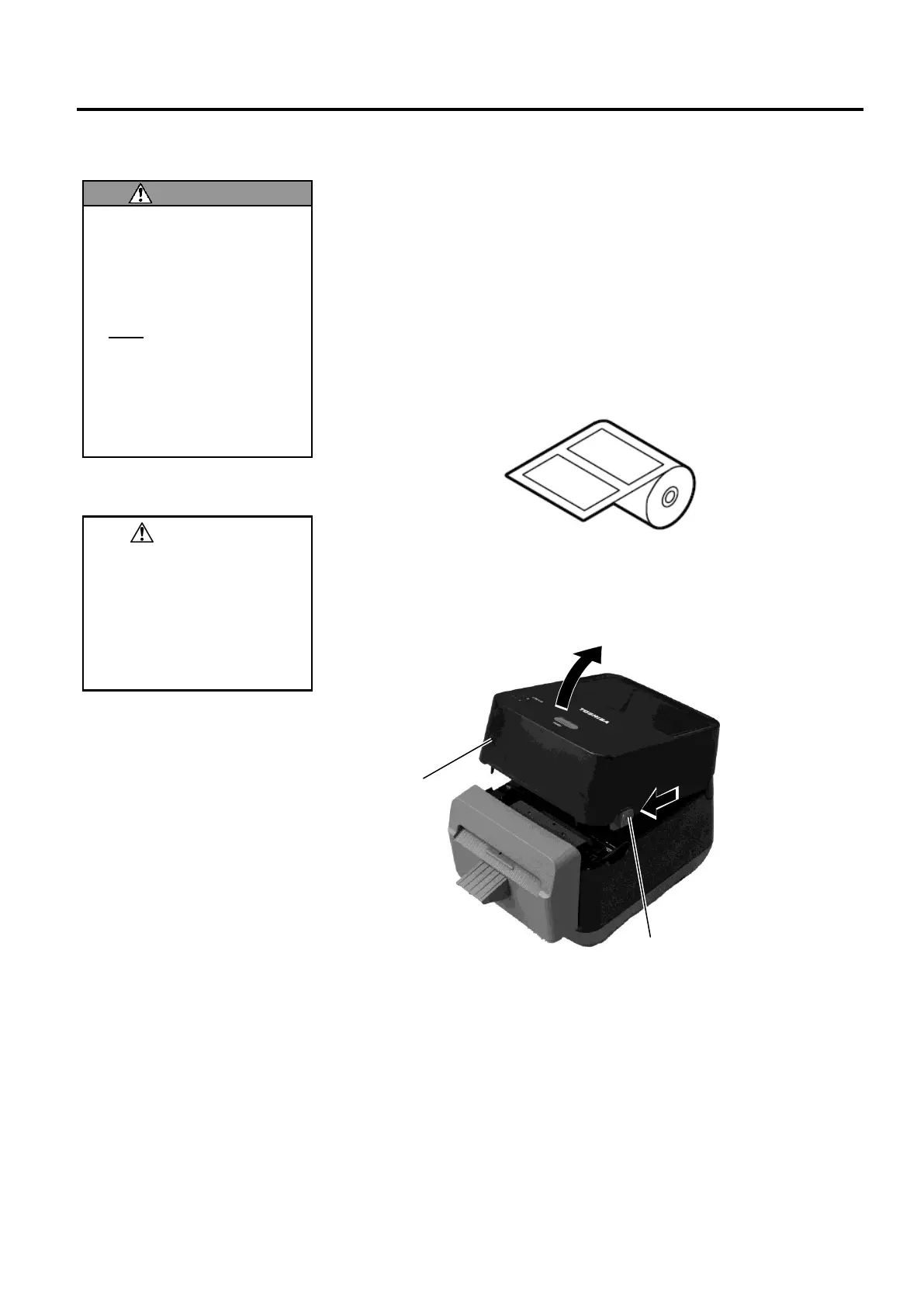

1. Open the Top Cover while pulling the Lock Release Portions as
indicated by the arrows.
WARNING!
WARNING!
WARNING!
WARNING!
1. Do not touch any moving
parts. To reduce the risk
of fingers, jewellery,
clothing, etc. being drawn
into the mechanism, be
sure to load the media
only once the printer has
completely stopped
moving.
2. To avoid injury, be careful
not to trap your fingers
while opening or closing
the Top Cover.
CAUTION!
Be careful not to touch the
Print Head Elements when
opening the Top Cover. Doing
this may cause damage to
some of the dots through
static discharge or other print
quality problems.
To Next Page
