3. OPTIONAL KIT EO10-33016A
3.2 Strip Module: B-SA904-H-QM-R
3- 3

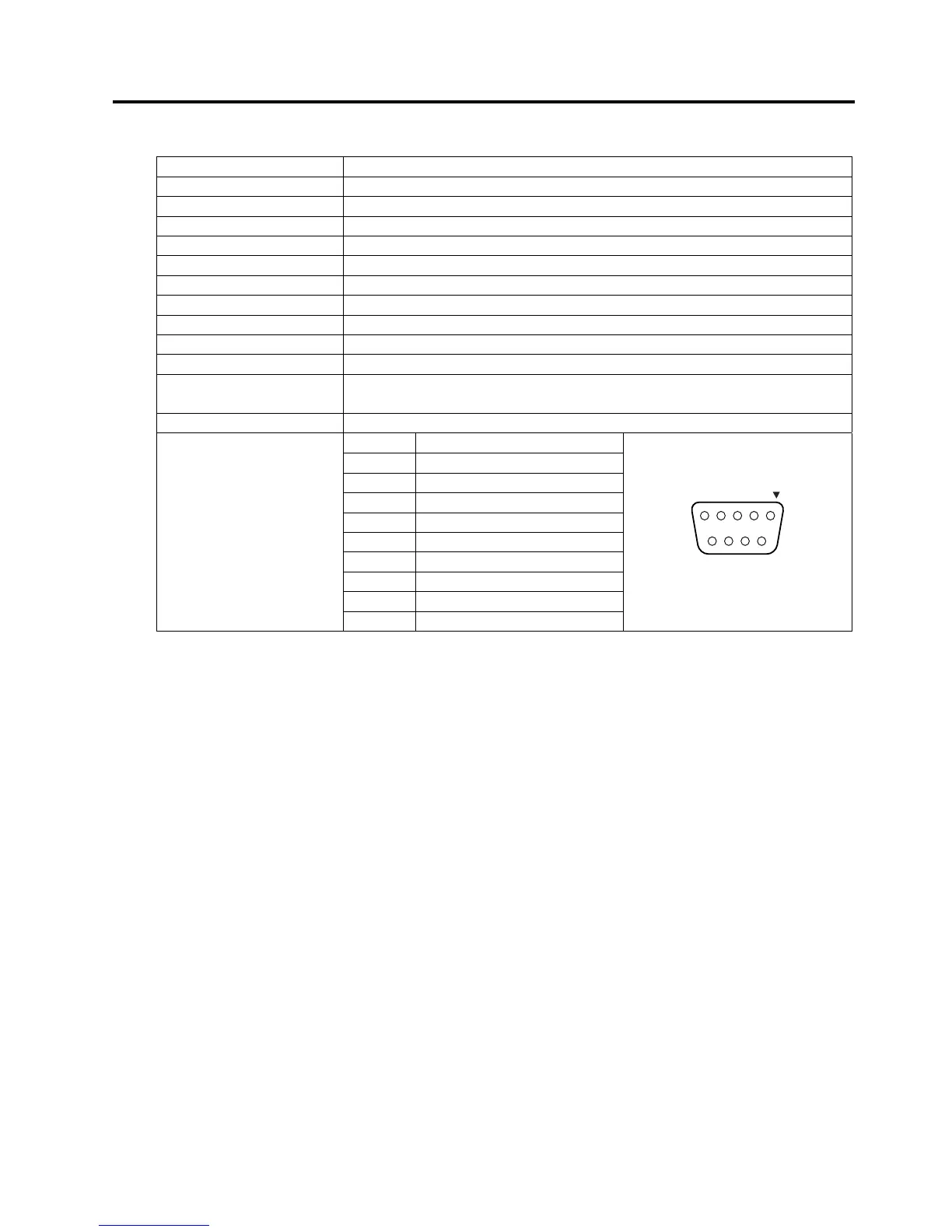

3.3 Serial Interface Board: B-SA704-RS-QM-R
Item Specification
Type RS-232C
Communication mode Full duplex
Transmission speed 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 115200 bps
Synchronization Start-stop synchronization
Start bit 1 bit
Stop bit 1 bit, 2 bit
Data length 7 bit, 8 bit
Parity None, Even, Odd
Error detection Parity error, Framing error, Overrun error
Protocol Unprocedure communication
Data input code ASCII code, European character 8 bit code, Graphic 8 bit code, JIS 8
code, Shift JIS Kanji code, JIS Kanji code
Receive buffer 1M byte (shared with other interface)
Pin No.
Signal
1 N.C
2 TD (Transmit Data)
3 RD (Received Data)
4 DSR (Data Set Ready)
5 SG (Signal Ground)
6 DTR (Data Terminal Ready)
7 CTS (Clear to Send)
8 RTS (Request to Send)
Connector
9 N.C
1
5
6
9
