Toshiba B-SA4T Series Product Description

3. OPTIONAL KIT EO10-33016A
(Revision Date: Jan. 19, 2006)
3.7 Expansion I/O Board: B-SA704-IO-QM-R
3- 9

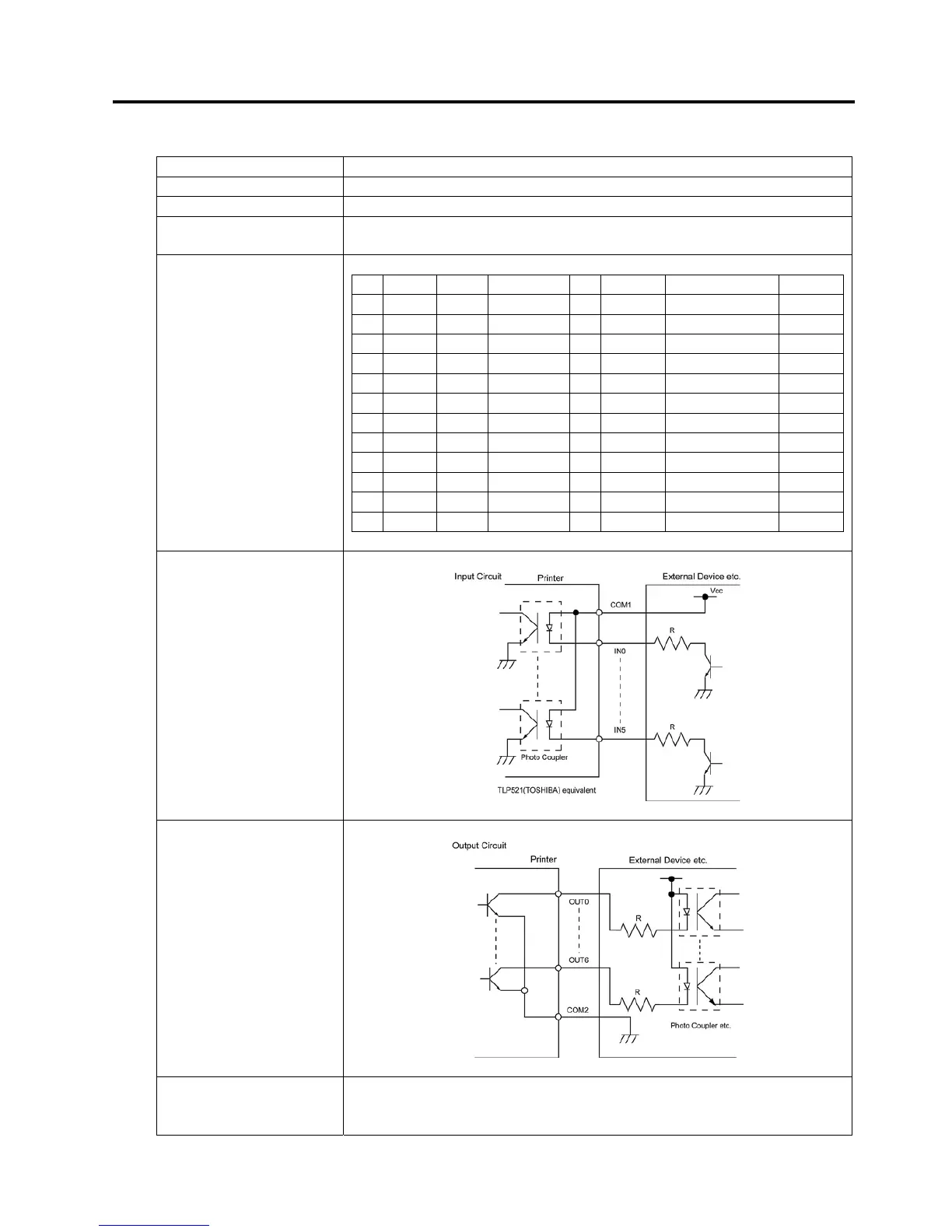

3.7 Expansion I/O Board: B-SA704-IO-QM-R
Item Specification
Input Signal IN0 − IN5
Output Signal OUT0 − OUT6
Connector (External
Device Side)
FCN-781P024-G/P or equivalent
Connector (Printer Side)
FCN-685J0024 or equivalent
Pin
Signal
I/O Function Pin
Signal I/O Function
1
IN0 Input
FEED 13
OUT6 Output
2
IN1 Input
PRINT 14
N.C. -----
3
IN2 Input
PAUSE 15
COM1 Common (Power)
4
IN3 Input
16
N.C. -----
5
IN4 Input
17
N.C. -----
6
IN5 Input
18
N.C. -----
7
OUT0
Output
FEED 19
N.C. -----
8
OUT1
Output
PRINT 20
N.C. -----
9
OUT2
Output
PAUSE 21
COM2 Common (Ground)
10
OUT3
Output
ERROR 22
N.C. -----
11
OUT4
Output
23
N.C. -----
12
OUT5
Output
POWER ON
24
N.C. -----
N.C. : No Connection
Input Circuit
Output Circuit
Operating environment
Temperature
Humidity
0°C to 40°C
20% to 90% (No condensation)

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
