3.2 Setting the Slave Device Configuration Information
When using the PA912, transmission parameters need be set by using the HMS
PROFIBUS configurator tool (Anybus NetTool-PB), besides making settings and
registration in the nv controller.
For the PROFIBUS configurator tool, use the following product.
Table 3-3 HMS PROFIBUS configurator tool
Item Details
Name Anybus NetTool-PB
Manufacturer HMS Industrial Networks
（
http://www.anybus.com/
）
Applicable OS Windows 98/ME/NT/2000/XP/Vista
The PA912 and a computer are connected via the RS-232C interface. Connect
the RS-232C connector on the computer and the CONFIG connector (9-pin,
male) on the PA912 by using the connection cable specified below.

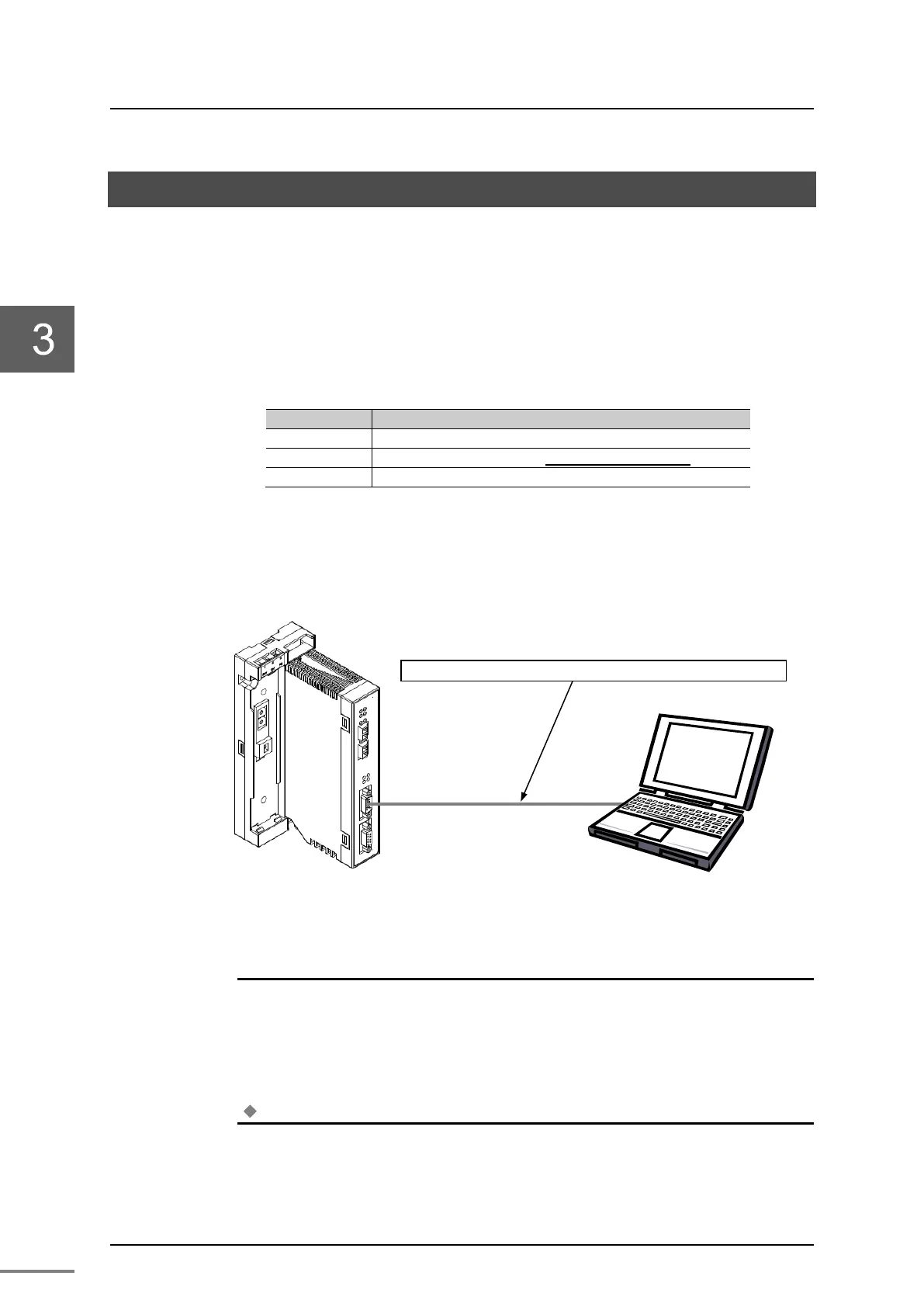

Figure 3-4 PROFIBUS configurator tool connection
◆
◆◆
◆
Important
・
The PA912 uses the Anybus NetTool-PB as a HMS PROFIBUS configurator tool.
・
Note that the HMS PROFIBUS configurator tool (name: Sycon), which is used for the
parallel I/O module PF311, etc. of the Integrated Controller V series, is not applicable to the
PA912.
Note
・
HMS PROFIBUS configurator tool (Anybus NetTool-PB) is not bundled to the PA912
module package. Purchase the tool separately.
・
The Target versions of HMS PROFIBUS configurator tool (Anybus NetTool-PB) is Ver
1.6.1.1 or later versions.
Connection cable: cable bundled to the Anybus NetTool-PB
