E6581697
F-28
6

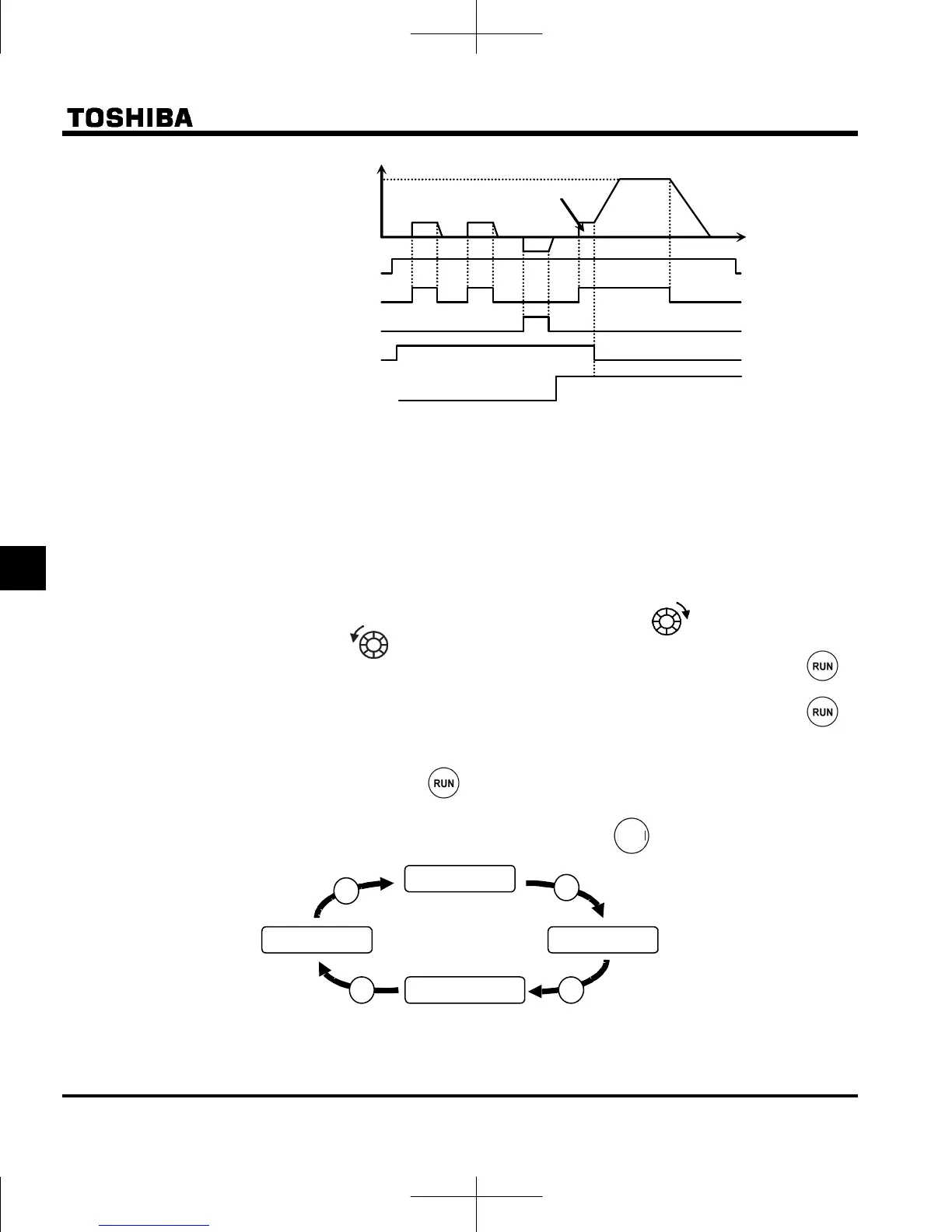

The jog run setting terminal (RES-CC) is enabled when the operation frequency is below the jog run
frequency.
This connection does not function at an operation frequency exceeding the jog run frequency.
The motor can be operated in jog mode while the jog run setting terminals are connnected (RES-CC).
Jog run has priority, even when a new operation command is given during operation.
Even for f261 = 0 or 1, an emergency DC braking becomes enabled when setting f603 = 2.
No limits are imposed to the jog run frequency by the upper-limit frequency (parameter ul).
■ Panel jog mode (if f262 is set to 1)
When the inverter is in panel jog mode, turning the setting dial right displays fjog, turning
the setting dial left displays
rjog.
When fjog is displayed, the inverter will be placed in forward jog run mode as long as the
key is held down.
When rjog is displayed, the inverter will be placed in reverse jog run mode as long as the
key is held down.
During jog run, the direction of rotation can be changed using the setting dial
If you press and hold down the key for 20 seconds or more, the key failure alarm “e-17” will
be displayed.
Here is the sequence in which modes change each time you press the key.
Standard monitor
mode
Status monito
mode
Setting monitor
mode
MODE
MODE
Panel jog mode
MODE MODE
Note: When the inverter is in operation (RUN lamp is blinking) or when an operation command is issued
(RUN lamp is lighting), the inverter cannot be switched to panel jog mode.
MODE
ST-CC
F-CC
R-CC
RES-
Normal operation frequency
setting signal input
Reverse
Forward
Forward
Set frequency
(=18)
Forward
