Toshiba TOSVERT VF-MB1 - Applied Operations by an I;O Signal (Operation from the Terminal Block

E6581697
G-2
7

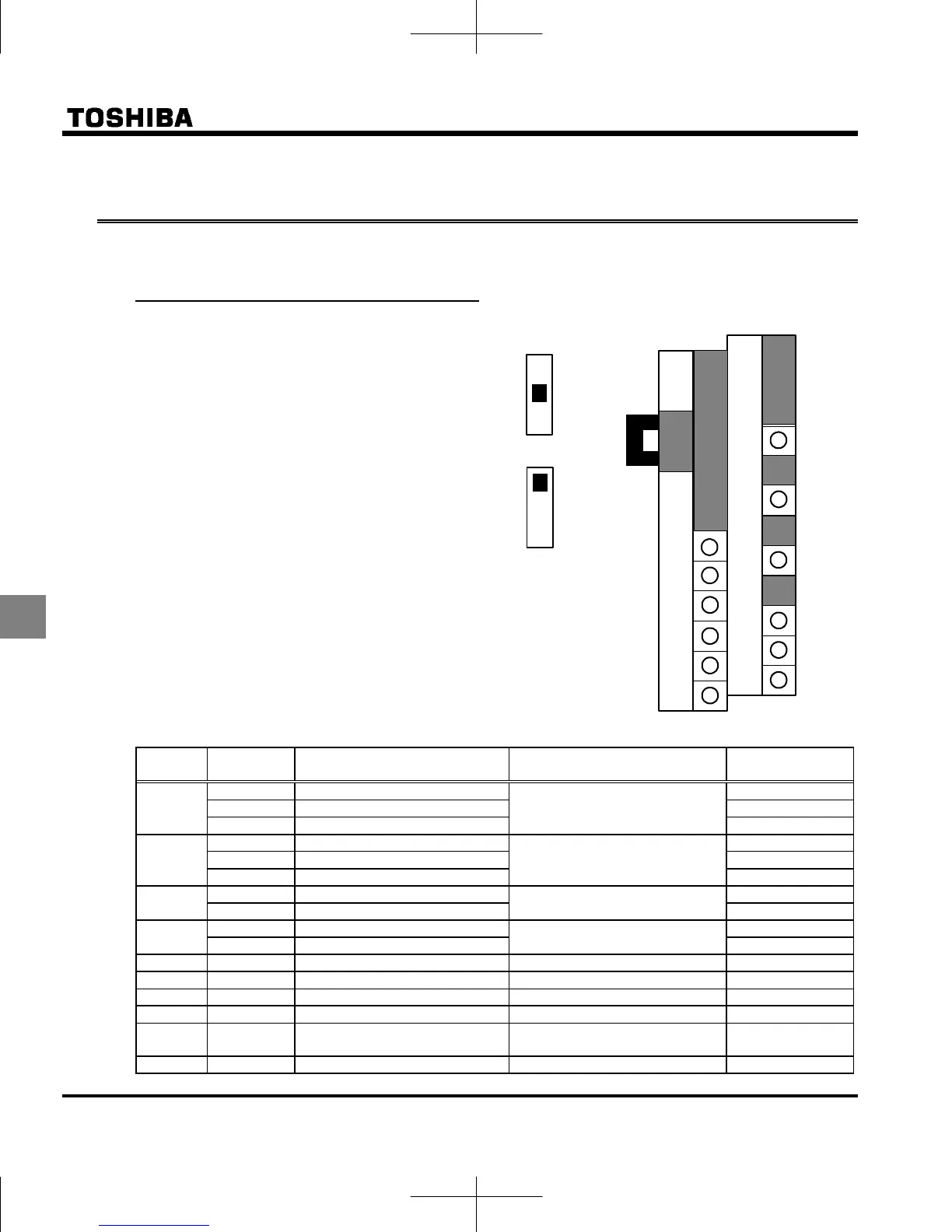

7.2 Applied operations by an I/O signal (operation from
the terminal block)
Input terminal sink and source logic are set by using slide switch SW1.
7.2.1 Input terminal function
This function is used to send a signal to the
input terminal from an external programmable
controller to operate or configure the inverter.
The ability to select from a variety of functions
allows for flexible system design.
Default settings of slide switch SW1and SW2 are
PLC side and LOGIC side.
Refer to page B-11 and 12 for details.
 Settings for the logic input terminal function
Terminal
symbol
Title Function Adjustment range Default setting
 Input terminal selection 1A (F) 2 (F)

Input terminal selection 1B (F) 0 (No function)
F

Input terminal selection 1C (F)
0-203 Note 1)
0 (No function)

Input terminal selection 2A (R) 4 (R)

Input terminal selection 2B (R) 0 (No function)
R

Input terminal selection 2C (R)
0-203 Note 1)
0 (No function)

Input terminal selection 3A (RES) 8 (RES)
RES

Input terminal selection 3B (RES)
0-203 Note 1)
0 (No function)

Input terminal selection 4A (S1) 10 (SS1)
S1

Input terminal selection 4B (S1)
0-203 Note 1)
0 (No function)
S2

Input terminal selection 5 (S2) 0-203 Note 3) 12 (SS2)
S3

Input terminal selection 6 (S3) 0-203 Note 4) 14 (SS3)
VIB

Input terminal selection 7 (VIB) 8-55 Note 5) 16 (SS4)
VIA

Input terminal selection 8 (VIA) 8-55 Note 6) 24 (AD2)
VIA
VIB

Analog/logic input
selection (VIA/VIB)
0-4 0
F to VIB

Input terminal response time 1-1000 (ms) Note 7) 1
[Control terminal board]
FLA
FLC
FLB
CC
FM
CC
P24
CC
PP
VIB
VIC
VIA
RY
RC
OUT
NO
F
R
S1
S2
S3
RES
STO
+SU
SW1
SOURCE
PLC
SINK
SW2(S3)
LOGIC
PTC
