E6581697
F-1
6

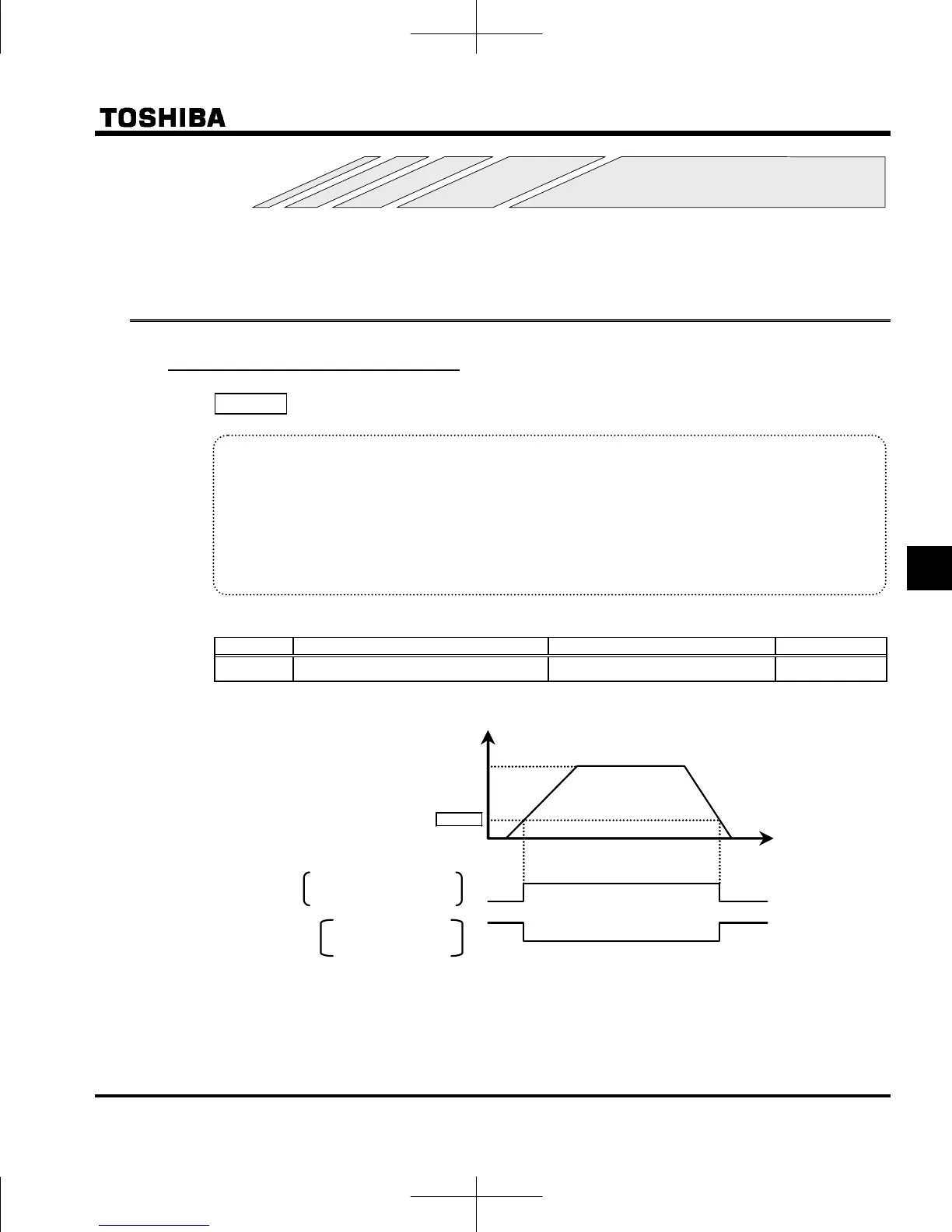

6. Other parameters
Extended parameters are provided for sophisticated operation, fine adjustment and other special purposes. Modify
parameter settings as required. Refer to section 11 tables of extended parameters.
6.1 Input/output parameters
6.1.1 Low-speed signal
f100 : Low-speed signal output frequency
Function
When the output frequency exceeds the setting of f100 an ON signal will be generated. This signal
can be used as an electromagnetic brake excitation/release signal.
This signal can also be used as an operation signal when f100 is set to 0.0Hz, because an ON
signal is put out if the output frequency exceeds 0.0Hz.
+ Output from the open collector output terminal RY-RC. (Default)
Output FLA-FLB-FLC and OUT are possible depending on the parameter settings.
[Parameter setting]
Title Function Adjustment range Default setting
f100 Low-speed signal output frequency 0.0 - fh (Hz) 0.0
Output frequency
Time [s]
Low-speed detection signal :
OUT-NO terminals
ON
OFF
Inversion of low-speed
detection signal
ON
OFF
[Hz]
0
Setting frequency
To Next Page
