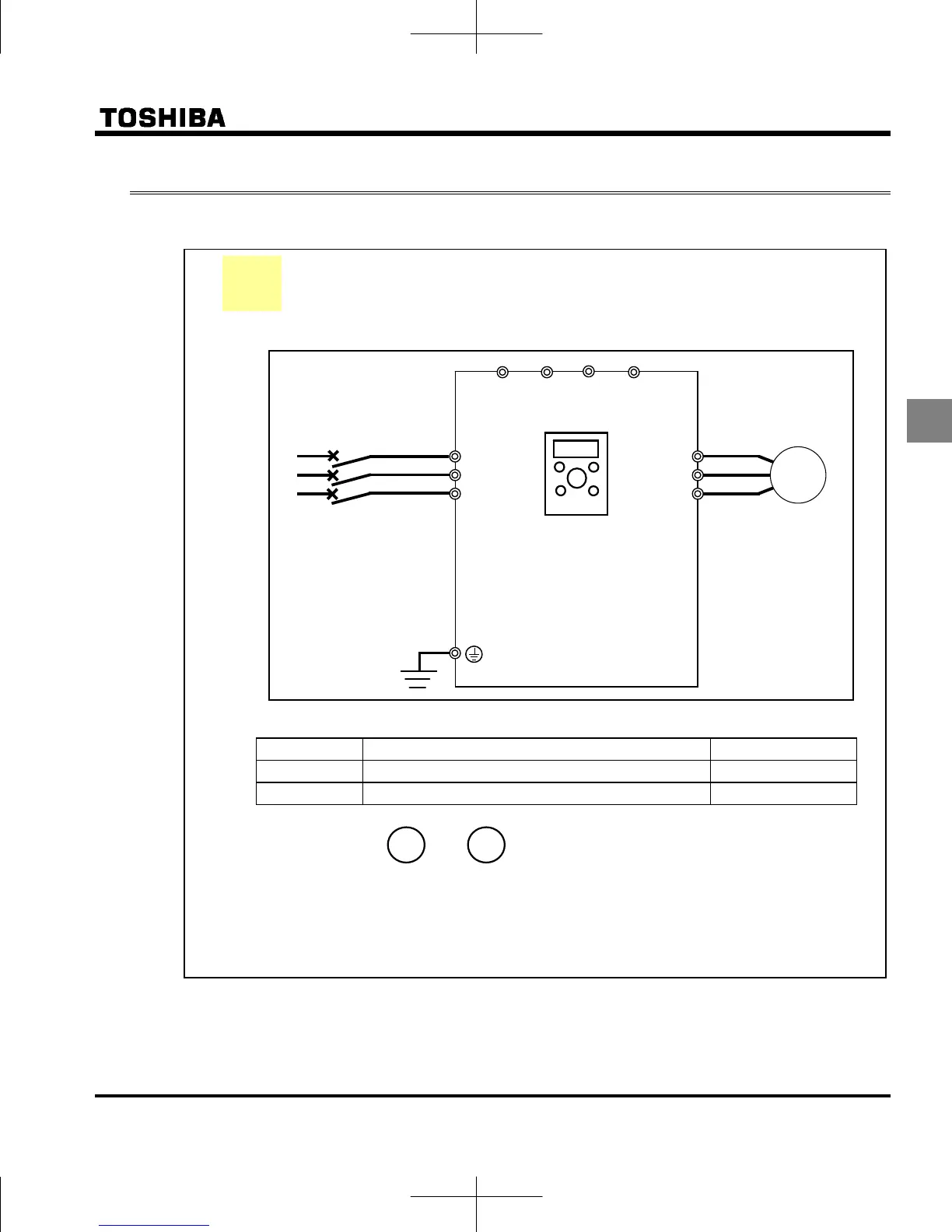

3.3 How to operate the VF-MB1
Overview of how to operate the inverter with simple examples
Setting the frequency using the setting dial, and run/stop using the
panel keypad (1)
(1) Wiring
(2) Parameter setting (default setting)
Title Function Programmed value

Command mode selection 1

Frequency setting mode selection 0
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Turn the setting dial to set the frequency. The frequency setting is saved just by
turning the setting dial.
*1: Single-phase models are R/L1 and S/L2/N.
Ex.1
RUN
STOP
Motor
M
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Operation panel
MCCB
PBe
PC/-
PA/+
PB
*
1
