E6581697
C-10
3

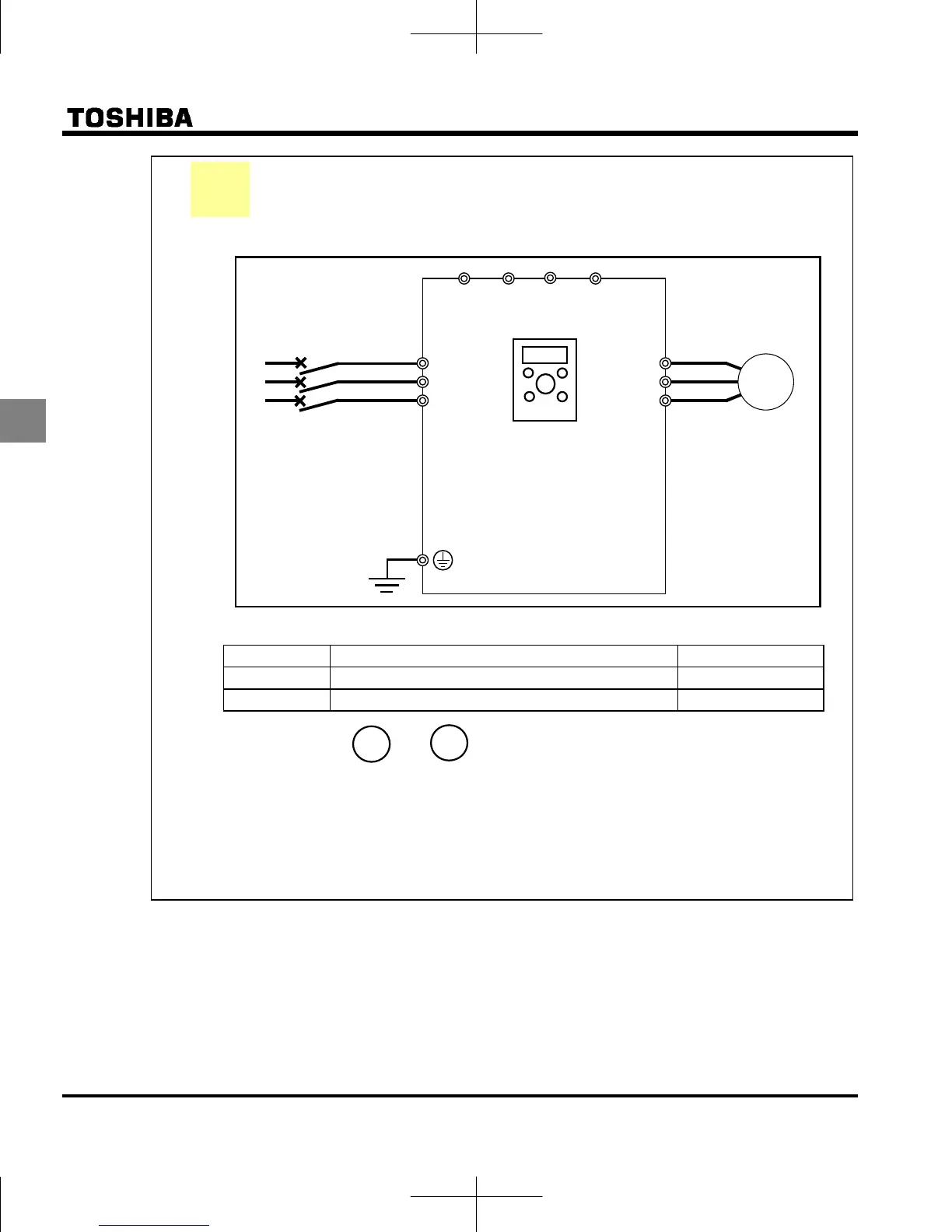

Setting the frequency using the setting dial, and run/stop using the
panel keypad (2)
(1) Wiring
(2) Parameter setting
Title Function Programmed value

Command mode selection 1

Frequency setting mode selection 3
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Turn the setting dial to set the frequency.
To save the frequency setting, press the center of the setting dial.
and the set frequency will flash on and off alternately.
*1: Single-phase models are R/L1 and S/L2/N.
Ex.2
RUN
STOP
Motor
M
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Operation panel
MCCB
PBe
PC/-
PA
/
+ PB
*
1
