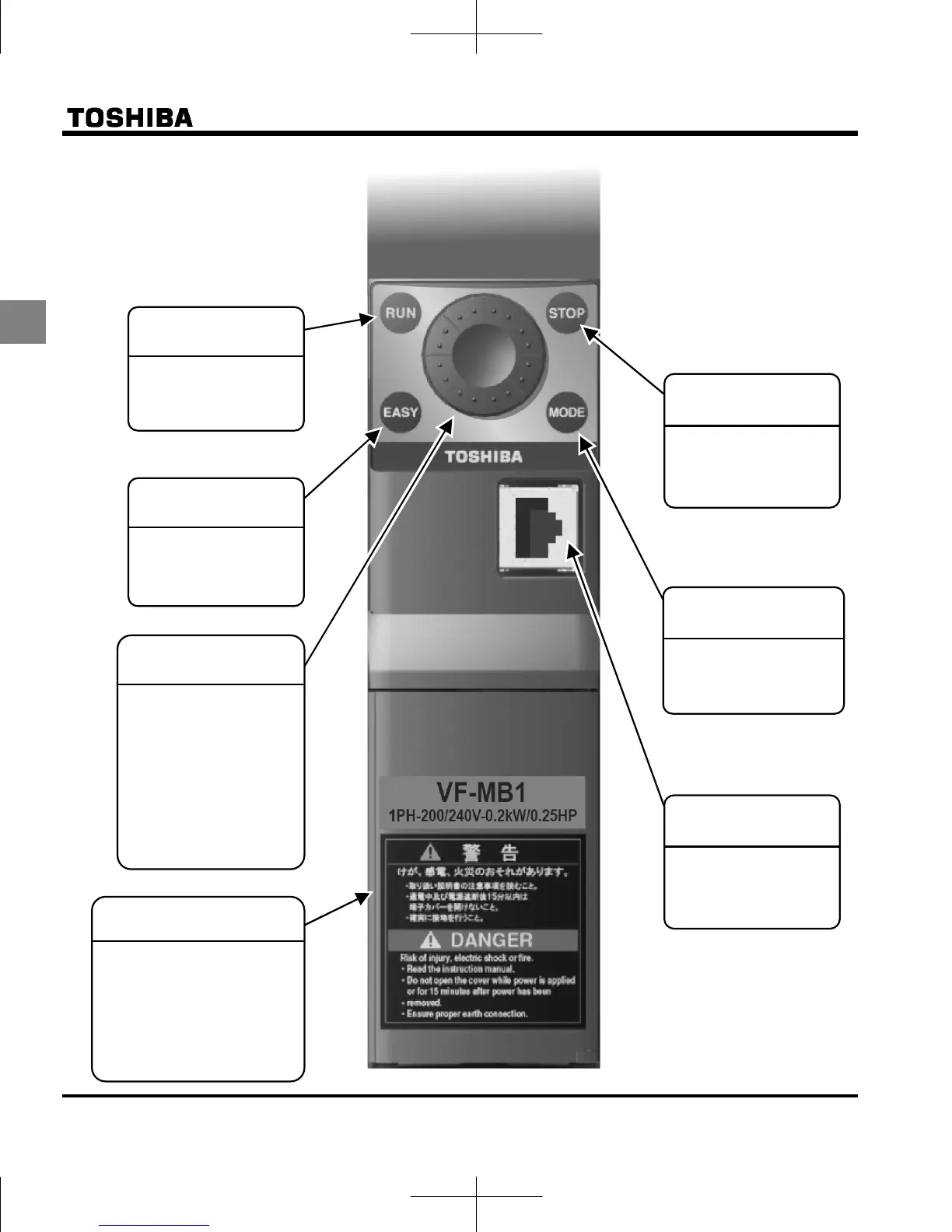

[Control panel 2]
Setting dial
Turning the dial left and
right changes the
operation frequency,
cycles parameters, and
cycles among menus
within parameters.
Pressing the center of
the setting dial is used
for executing operations
and determining values.
EASY key
Switches between
easy and standard
setting modes.
RUN key
Pressing this key
while the run lamp is
on starts operation.
Control terminal cover
This is the control terminal
board cover.
Always close this cover
before operation to avoid
accidentally touching the
terminal board.
The serial number is recorded
on the back side.
MODE key
Switches between run,
settings, and status
monitor modes.
RJ45 connector for
using RS485/CANopen
communication and
other options
RS485 connector
While the running lamp
is blinking, pressing
this key slows down
and stops the inverter.
STOP ke
y
