E6581697
F-55
6
6.18.2 Hit and stop control
382 : Hit and stop control
383 : Hit and stop control frequency
Function
These parameters are can be used as hit and stop control for material handling smooth deceleration
and stopping is ensured by limit switch.
[Parameter setting]
Title Function Adjustment range Default setting
Hit and stop control 0: Disabled, 1: Enabled, 2: -
0
Hit and stop control frequency
0.1-30.0 (Hz) 5.0
, This function is valid when the parameter f382 = 1 is set.
■ Input terminal settings
Assign the following functions to the input terminal, you can operate the hit and stop control by using the
terminal's ON/OFF.
Input terminal function ON OFF
140 Forward deceleration Forward operation toward f383 setting Clear
142 Forward stop Forward stop Clear
144 Reverse deceleration Reverse operation toward f383 setting Clear
146 Reverse stop Reverse stop Clear
Each of the following numbers (141, 143, 145, 147) are reverse signals.

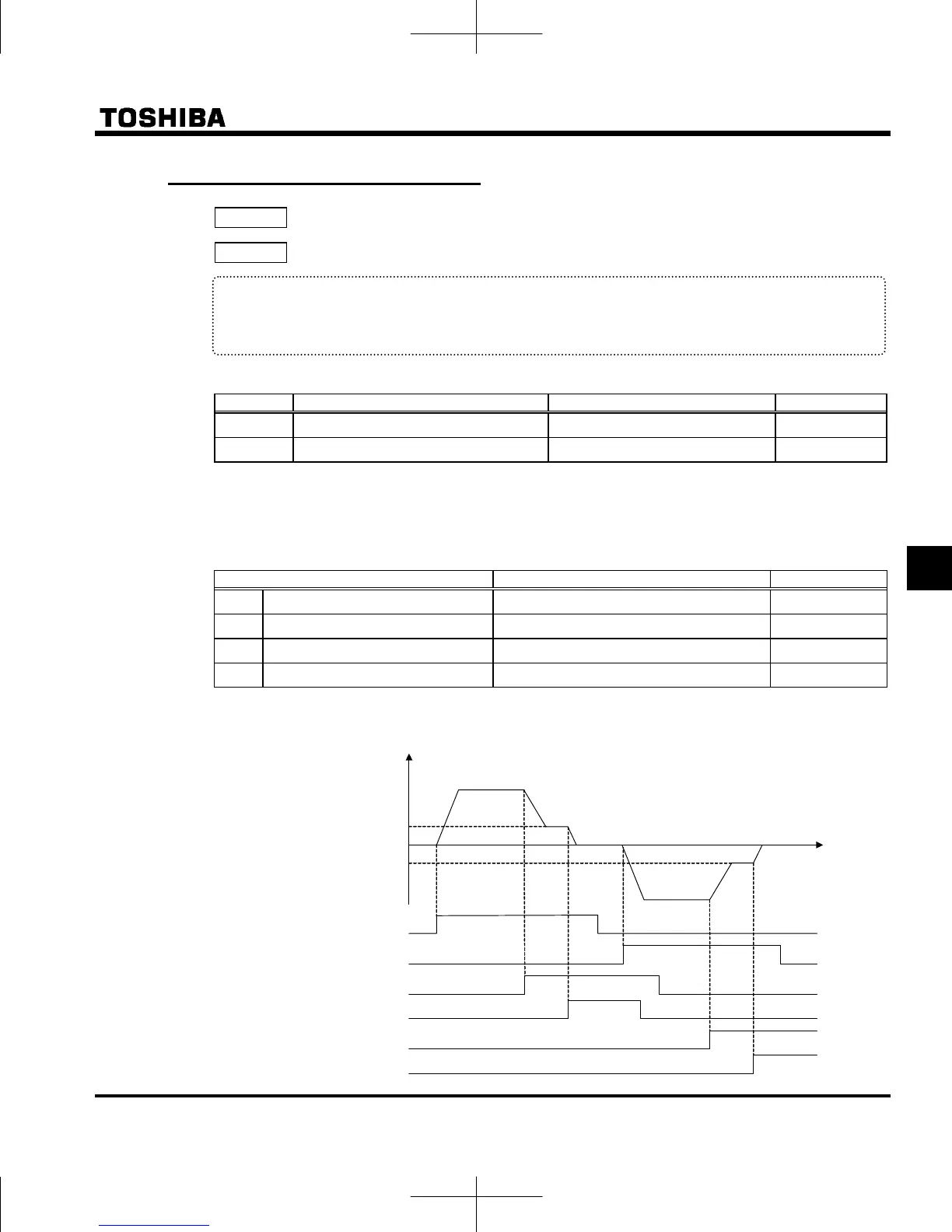

<Sample sequence diagram>
Forward
R - slow down
F - slow down
R - stop
F - stop
Reverse
Forward
Reverse
f383
f383
0
