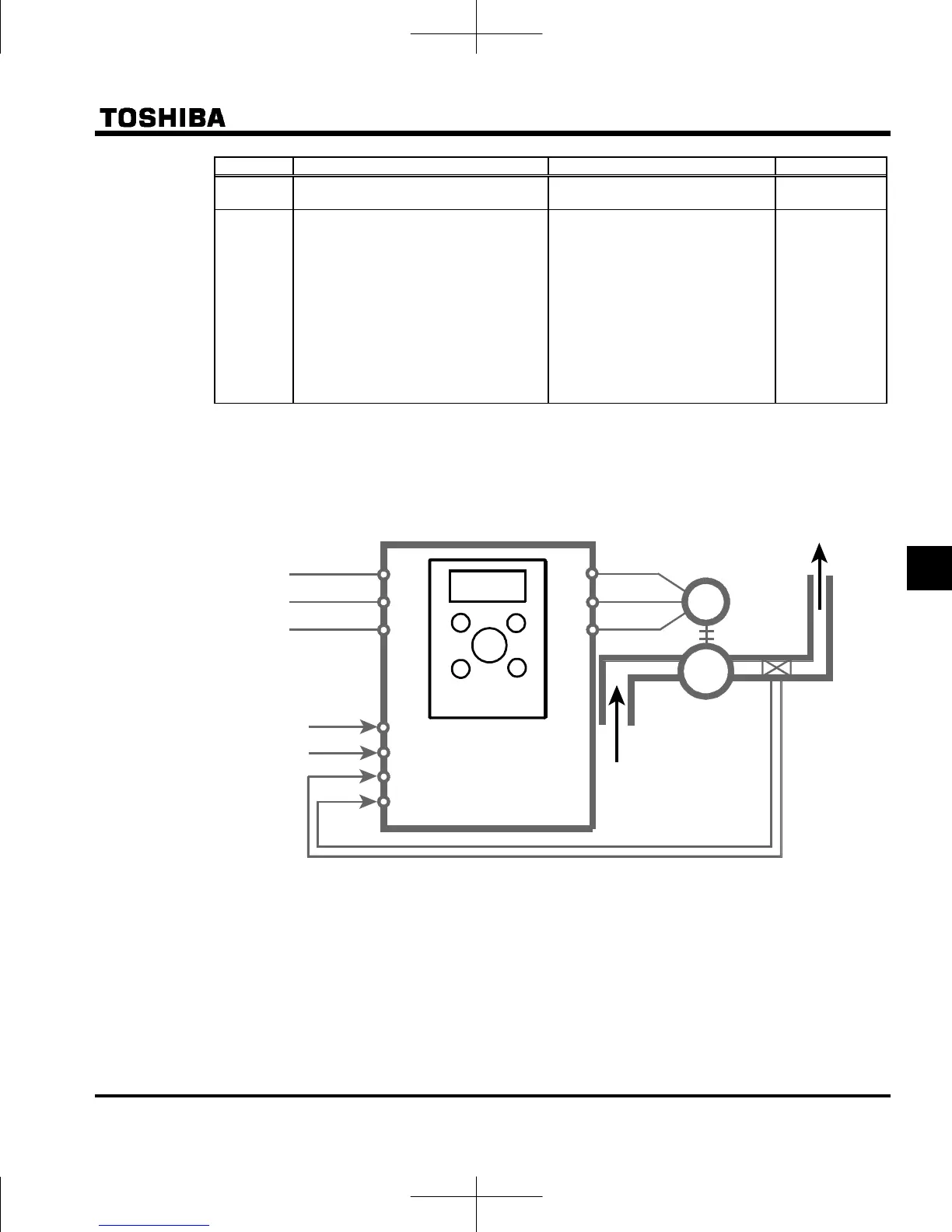

E6581697
F-59
6
Title Function Adjustment range Default setting
f380
PID forward/reverse characteristics
selection
0: Forward
1: Reverse
0
f389
PID control reference signal selection
0:
fmod/f207 selected
1: Terminal board VIA
2: Terminal board VIB
3:
fpid
4: RS485 communication
5: UP/DOWN from external logic
input
6: CANopen communication
7: Communication option
8: Terminal board VIC
9, 10: -
11: Pulse train input
0
*1: Default setting values vary depending on the setup menu setting. Refer to section 11.5.
1) External connection
M
P
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
VIA
CC
Pressure
transmitter
(1) Process
value
DC: 0 to 10V
(2)Feedback signals DC : 4~20mA
CC
VIC
