Toshiba TOSVERT VF-MB1 User Manual

E6581697
A-14
1

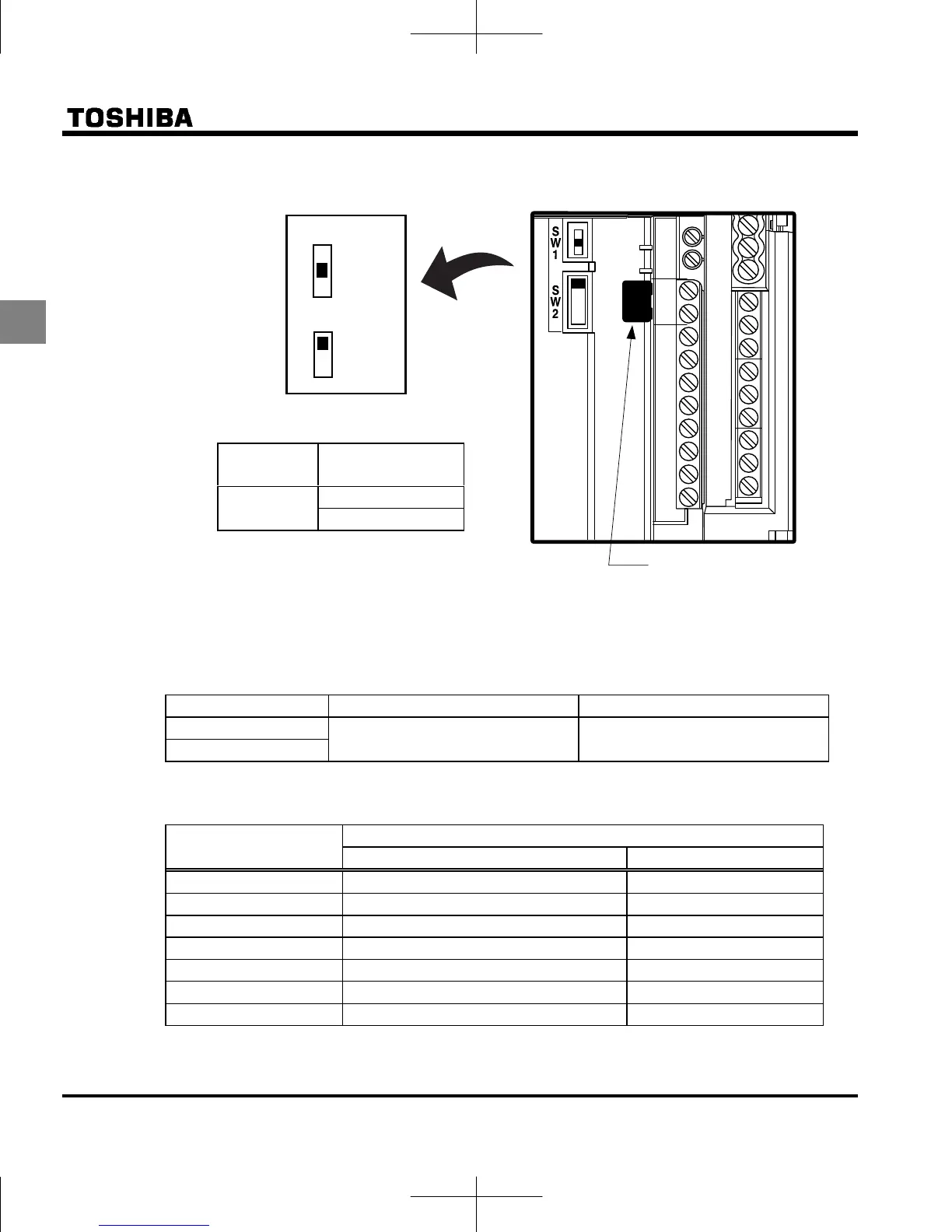

3) Control circuit terminal board
The control circuit terminal board is common to all equipment.
Wire size
Conductor 1 wire 2 wires of same size
Solid
Stranded
0.3-1.5mm
2
(AWG 22-16) 0.3-0.75mm
2
(AWG 22-18)
Recommended ferrule
Using ferrule to be improved efficiency and reliability of wiring is recommended.
Type Wire size
mm
2
(AWG)
PHOENIX CONTACT Dinkle International.,Ltd
0.34 (22) AI 0.34-6TQ DN00306
0.5 (20) AI 0.5-6WH DN00506
0.75 (18) AI 0.75-6GY DN00706
1 (18) AI 1-6RD DN01006
1.5 (16) AI 1.5-8BK DN01508
2 X 0.5 (-) AI TWIN2 X 0.5-8WH DTE00508
2 X0.75 (-) AI TWIN2 X 0.75-8GY DTE00708
*1: Crimping pliers CRIMPFOX ZA3 (PHOENIX CONTACT), CT1 (Dinkle International., Ltd)
*2: These ferrules enable practical crimping of two wires in a ferrule.
FLA
FLB
FLC
CC
CC
VIC
VIB
VIA
CC
P24
F
R
RES
S1
S2
S3
NO
OUT
+SU
RC
RY
STO
PP
FM
Stripping length: 6 (mm)
Screwdriver: Small-sized flat-blade screwdriver
(Blade thickness: 0.6 mm, blade width: 3.5 mm)
Screw size
Recommended
tightening torque
0.5 Nm
M3 screw
4.4 lbin
Refer to section 2.3.2 for details about all terminal functions.
*2
*2
SW1
SOURCE
SINK
PLC
SW2 (S3)
LOGIC
PTC
Shorting-bar
Default setting is PLC side and LOGIC side.
