Toshiba TOSVERT VF-MB1 User Manual

E6581697
I-5
9

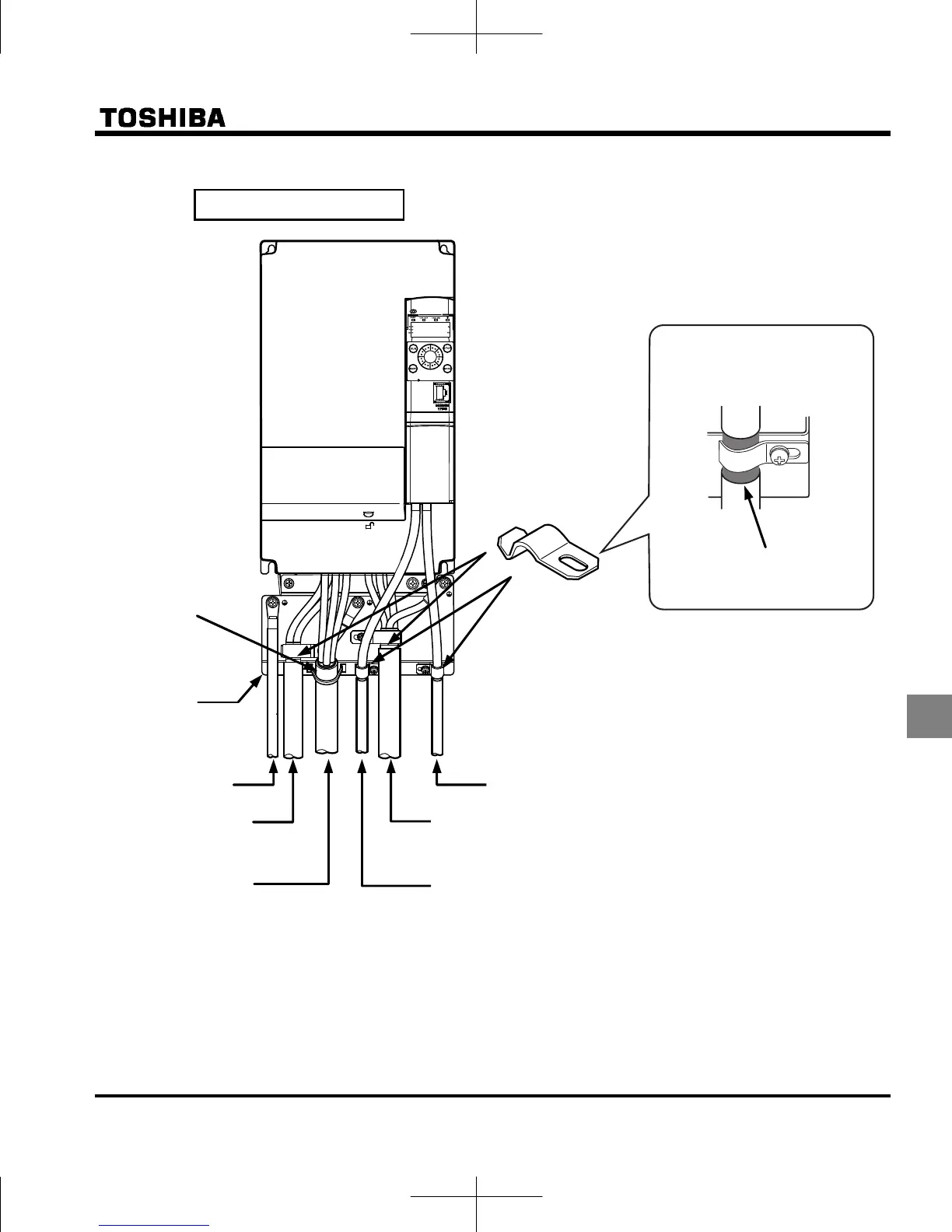

Power supply wiring
(Shielded cables)
R/L1, S/L2, T/L3
EMC plate
Motor wiring (Shielded cables)
U/T1, V/T2, W/T3
Braking resistor wiring
(Shielded cables)
PBe, PB
Control wiring (Shielded cables)
Install the shield cable after
modifying it as shown below.
Remove the covering of the cable
and fix the shield in the metal saddle.
Earth wiring
Control wiring (Shielded cables)
Fixed by
insulation lock
VFMB1-4055 to 4150PL
