E6581697
J-6
10

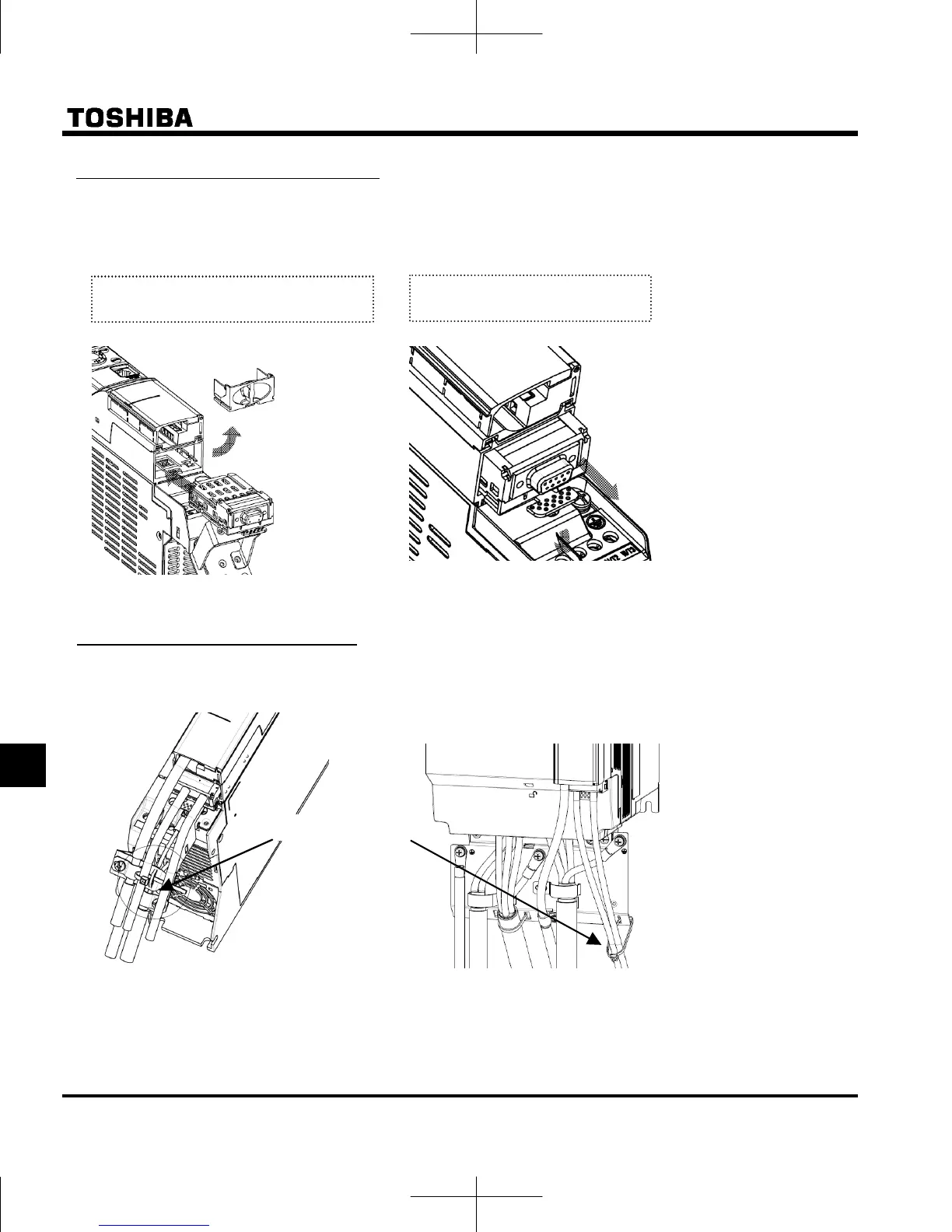

How to mount the communication option
Turn off all input power, wait at least 15 minutes, and confirm that the charge lamp of inverter is no longer lit.
・Mounting ・Dismounting
■Fix the wiring of option to the inverter
・For inverter capacity : 4.0kW or less ・For inverter capacity : 5.5kW or more
Fix by plastic band etc.
①Push the tab for release
②Pull the option out at the same
①Take out the option cover in the inverter
②Insert the o
tion into the inverter.
①
②
①
②
