10.2. Tool Air Piping
The robot is provided with four (4) air lines for the tool.
The outer diameter of the air pipelines is 4 mm. Fig. 10.2 shows the tool air
piping.

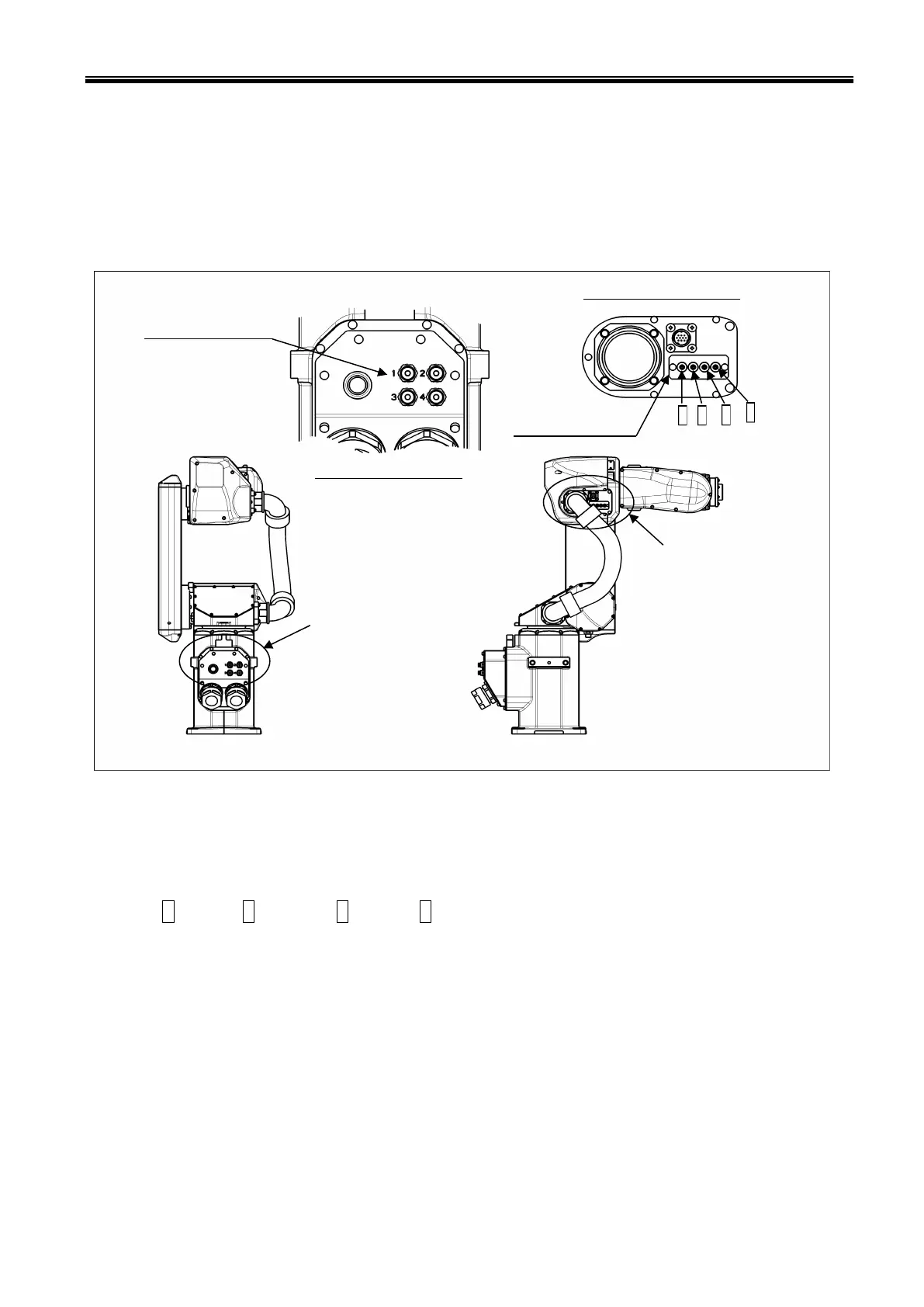

Fig. 10.2 Tool air piping
The air tube is identified by the number and color. At piping, make sure that each
tube is connected properly, referring to the below-mentioned.
1 : Red 2 : White 3 : Blue 4 : Yellow
4 x 4 (dia) air tube
(one-touch type)
Enlarged view of base rear
E
n
Enlarged view of hand panel
1
2
3
4
4 x 4 (dia) air tube
(one-touch type)
E
n
Wiring panel
Details of wiring panel
4xM5 hand air joint
