Toshiba TSL3000E Series User Manual

TRANSPORTATION AND INSTALLATION MANUAL
13

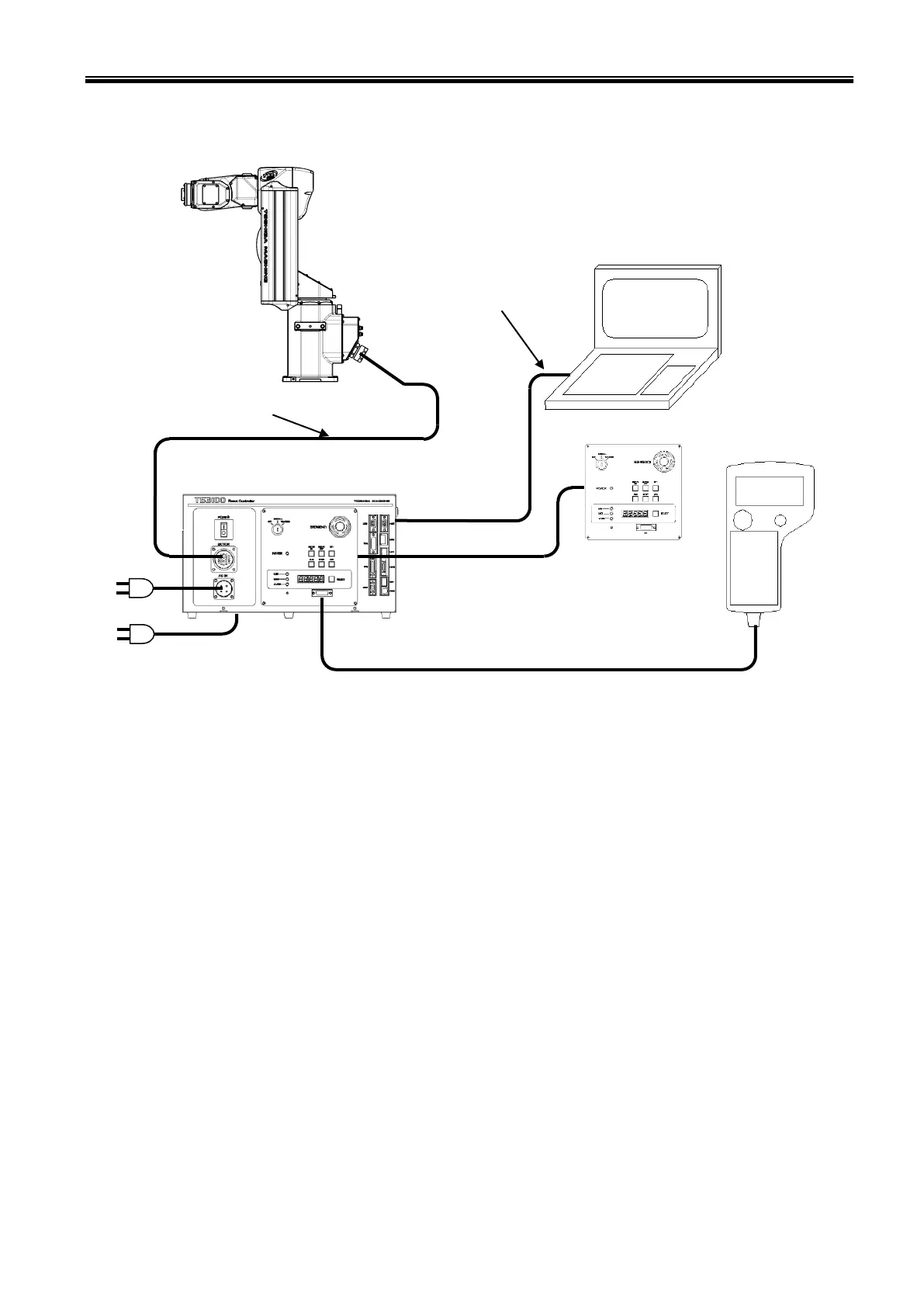

Equipment Configuration Drawing (For the TS3100)
1.1.3.
Fig. 1.3 Equipment Configuration (TS3100)
As for the connection method of power supply 200V, see "9.1.2 Connecting the Power
Cable "ACIN"". Again, for the connection method of power supply 24V, see "9.1.5
Connecting Power Supply Cable for External Input/Output".
24V power supply
(from the rear)
TVL500
Robot controller
TS3100
Operation panel
of detached
specification
(option)
For TSPC6ax
communication
cable (provided
by the customer)
200V power
supply
TP cable
RS-232C (cross cable )
or
LAN cable (cross cable)
PC (provided by the
customer)
Program support software
TSPC6ax (option)
TCPRGOS (option)
Cable between the robot and the
controller
Teaching pendant (option)

Toshiba TSL3000E Series Specifications

General

Brand	Toshiba
Model	TSL3000E Series
Category	Controller
Language	English
