TRANSPORTATION AND INSTALLATION MANUAL
121
11. Tool Interface (for the TSL 3100)
11.1. Tool wiring
The robot is provided with the tool cable air pipe and arm 1 (1) (arm 2 (2) and arm 3 as
options).
Connection to external equipment from the robot controller can also be made without
using the tool wiring in the robot arm.
Tool Signals (Controller Side) 11.1.1.
Eight input signals for components such as sensors, eight control signals for
components such as solenoid valves, 24 VDC, and 24 VDC GND are provided as tool
signals for the controller, thus enabling the wiring from the controller to external
equipment. (Cables between the controller and external equipment are optional.) The
signals are explained below.

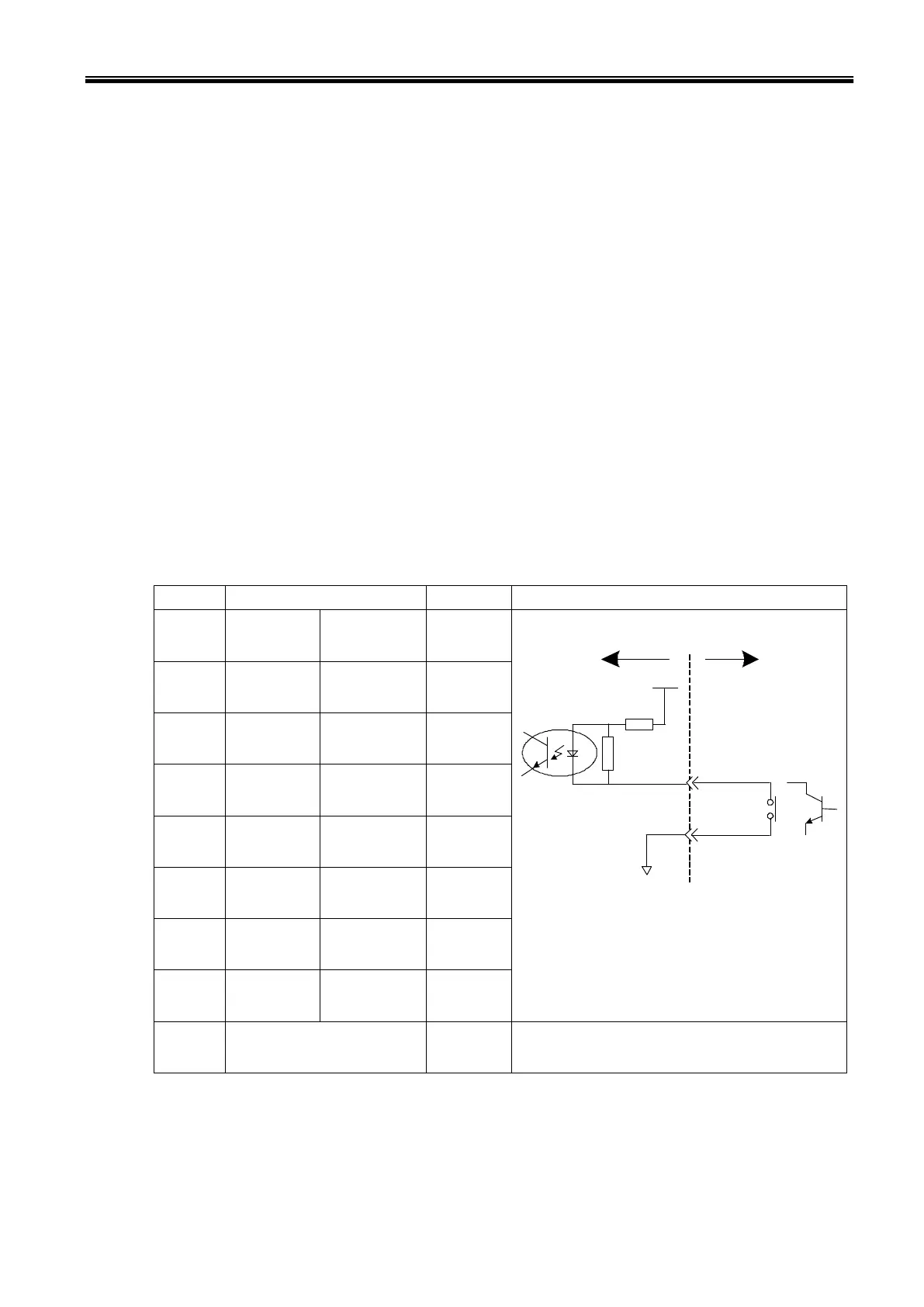

a-1) Input signal connector HAND (TSL3100 Type-N)
Pin
Signal name
Signal No.
Input circuit and example of connections
A1
D_IN1
Input signal 1
201
INPUTCOM
[Source type (+Common)]
TSL3100
Customers side
P24G
Contact or
transistor
The INPUTCOM signal is the same as that of the
pins 6, 17 and 30 connected to the INPUT
connector on the controller front face.
B1
D_IN2
Input signal 2
202
A2
D_IN3
Input signal 3
203
B2
D_IN4
Input signal 4
204
A3
D_IN5
Input signal 5
205
B3
D_IN6
Input signal 6
206
A4
D_IN7
Input signal 7
207
B4
D_IN8
Input signal 8
208
A5
DC 24V GND(P24G)
