TRANSPORTATION AND INSTALLATION MANUAL
53

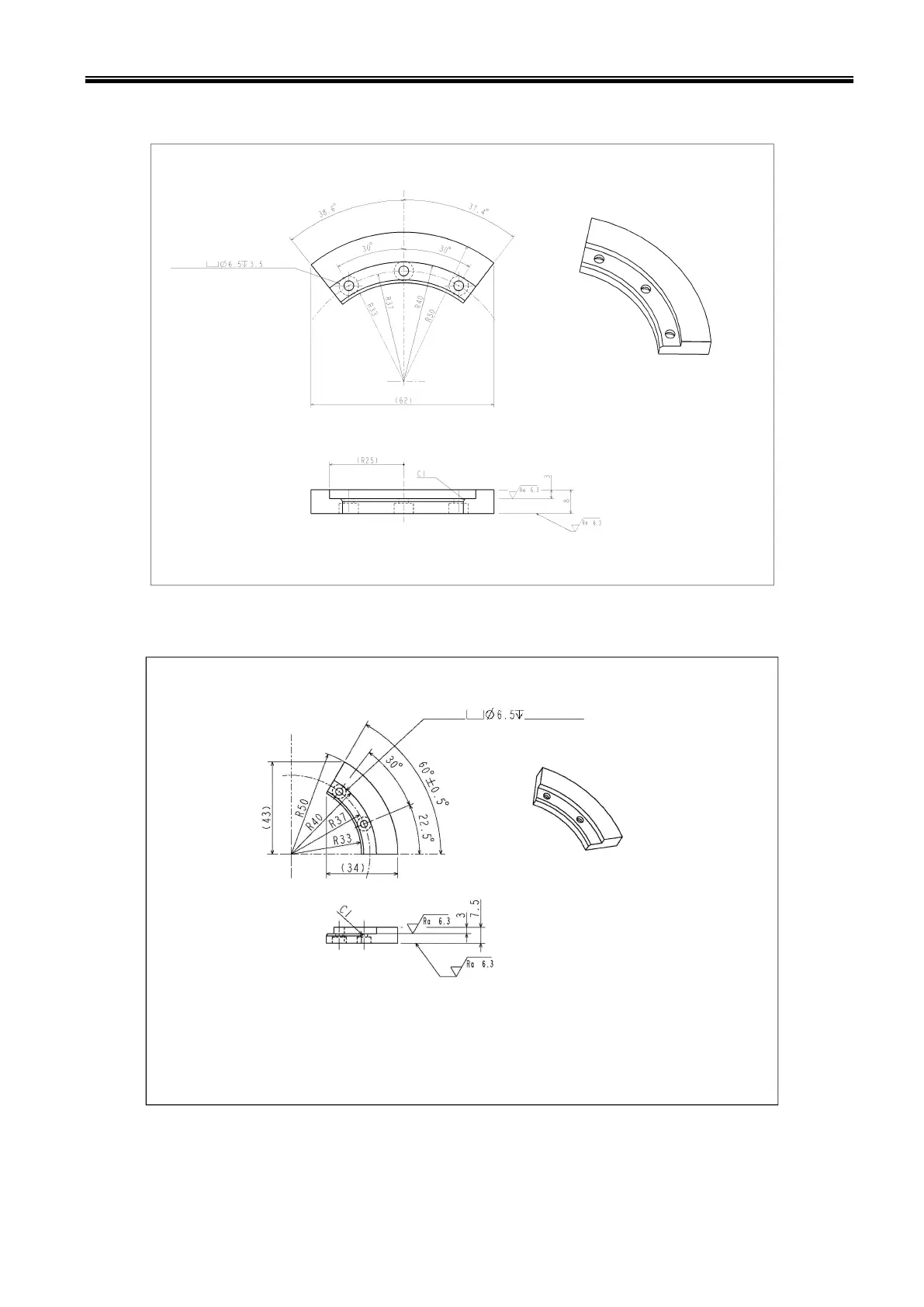

Fig. 3.22 Arm 1 side mechanical stopper (TVL500)
Fig. 3.23 Arm 1 side mechanical stopper (TVL700)
3x3.3 drilling,
* This cannot be changed by
the customer.
Example of material: S45C
from rear side
* This cannot be changed by
the customer.
Example of material: S45C
3x3.3 drilling,
from rear side
