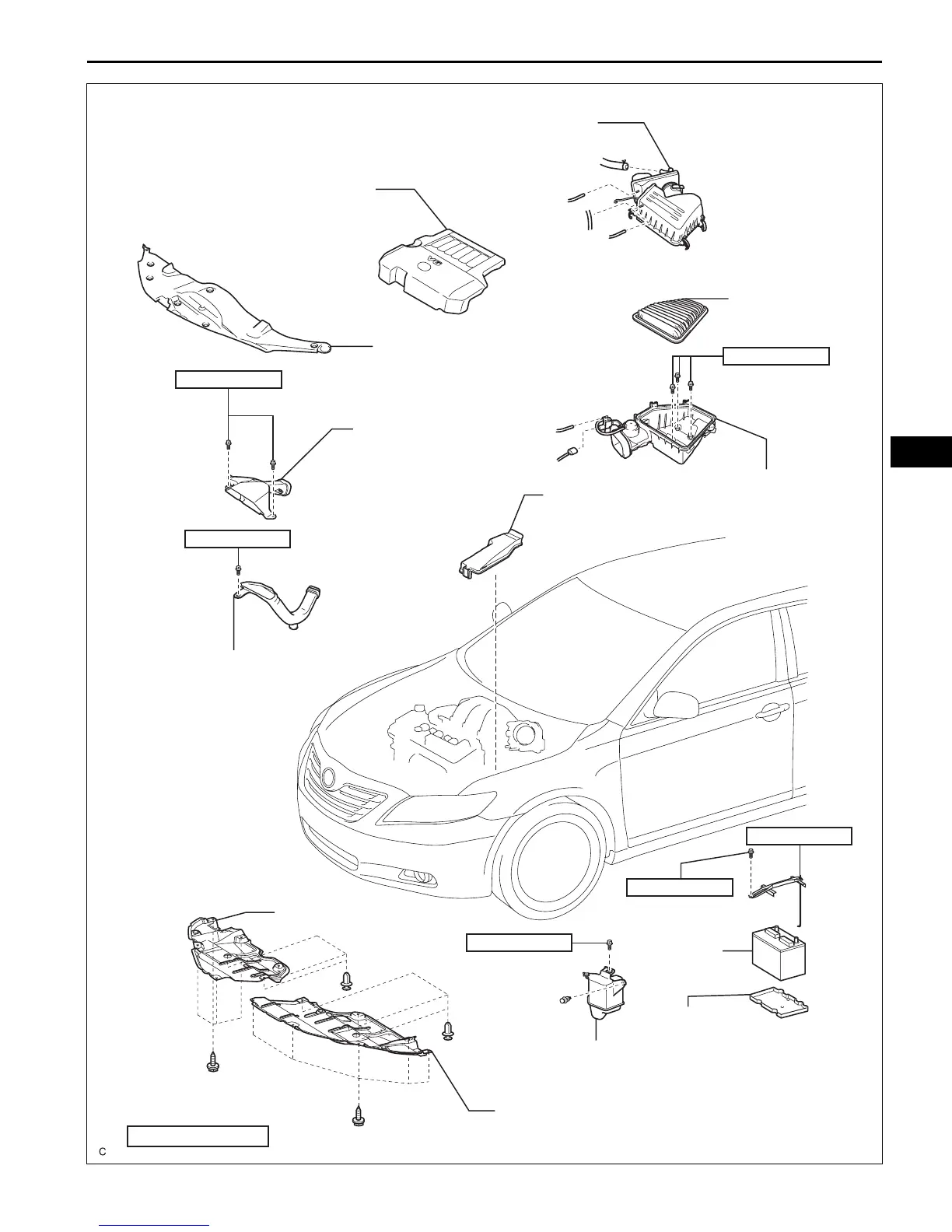

2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–15
EM
AIR CLEANER CAP SUB-ASSEMBLY
AIR CLEANER CASE
SUB-ASSEMBLY
AIR CLEANER INLET
ASSEMBLY
BATTERY
COOL AIR INTAKE DUCT SEAL
INTAKE AIR RESONATOR
SUB-ASSEMBLY
NO. 1 AIR CLEANER INLET
RELAY BLOCK
COVER UPPER
V-BANK COVER SUB-ASSEMBLY
5.0 (51, 44 in.*lbf)
5.0 (51, 44 in.*lbf)
5.0 (51, 44 in.*lbf)
5.0 (51, 44 in.*lbf)
N*m (kgf*cm, ft.*lbf)
: Specified torque
3.5 (36, 31 in.*lbf)
9.0 (92, 80 in.*lbf)
AIR CLEANER
FILTER ELEMENT
ENGINE UNDER COVER RH
ENGINE UNDER COVER LH
BATTERY TRAY
A132994E01

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
