2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–27
EM

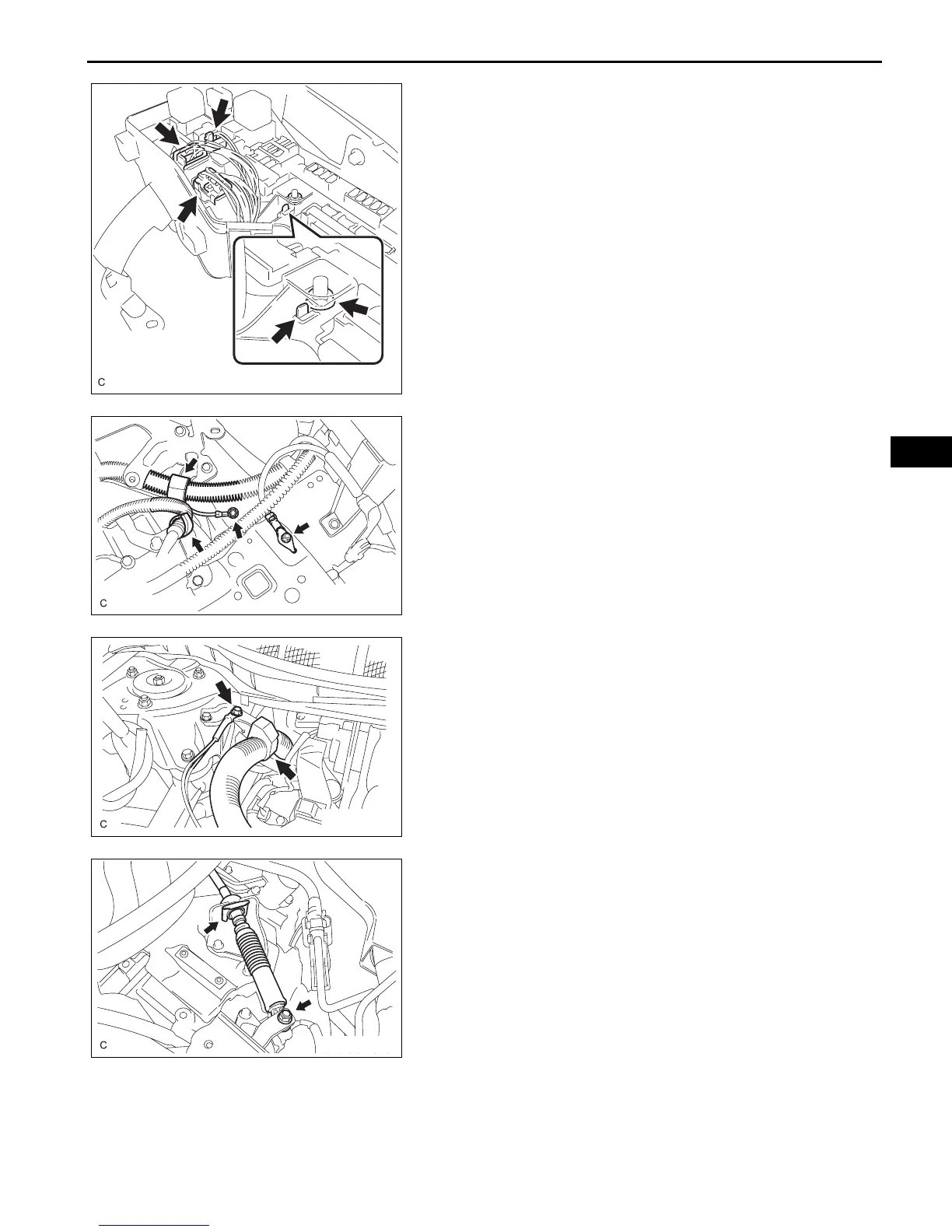

34. DISCONNECT ENGINE WIRE
(a) Disconnect the engine wire from the engine room
junction block.
(1) Remove the nut and separate the wire harness.
(2) Using a screwdriver, unlock the engine room J/
B. Pull the engine room J/B upward.
(3) Disconnect the engine wire connectors.
(b) Remove the 2 bolts and 2 clamps from the body.
(c) Remove the bolt and clamp from the bracket.
35. DISCONNECT TRANSMISSION CONTROL CABLE
ASSEMBLY
(a) Remove the clip and nut, and separate the cable
from the transaxle.
A132975
A132976
A132981
A132973
