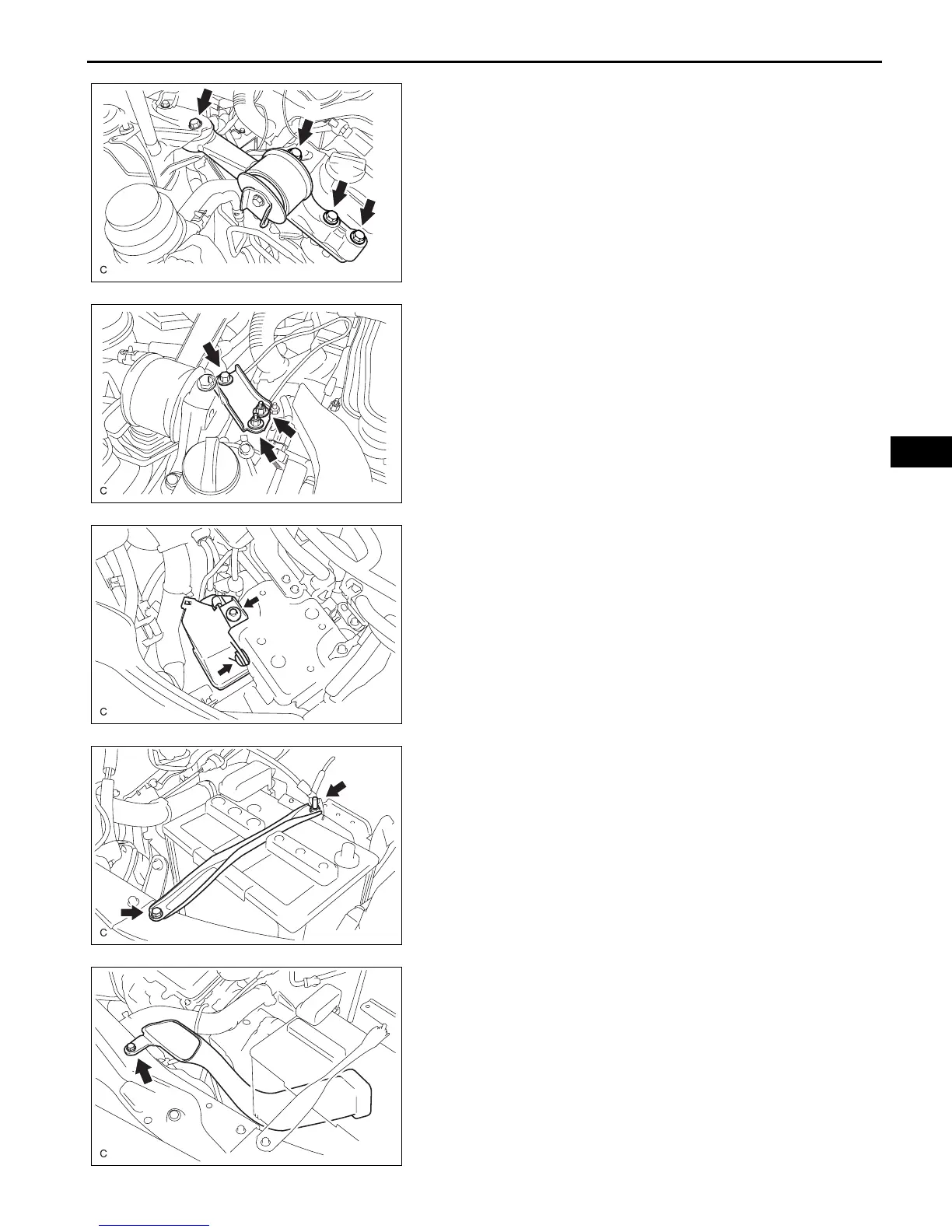

66. INSTALL ENGINE MOVING CONTROL ROD SUB-
ASSEMBLY
(a) Temporarily install the engine moving control rod
with the 4 bolts.
(b) First install the bolts A, and then the remaining bolt
B.
Torque: 38 N*m (388 kgf*cm, 28 ft.*lbf)
67. INSTALL NO. 2 ENGINE MOUNTING STAY RH
(a) Temporarily install the No. 2 engine mounting stay
RH with the bolt.
Torque: 38 N*m (388 kgf*cm, 28 ft.*lbf)
(b) Tighten the 2 nuts.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
68. INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY
(a) Install the intake air resonator with the bolt and clip.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
69. INSTALL BATTERY
(a) Install the battery and battery tray.
(b) Install the battery clamp with the bolt and nut.
Torque: Bolt
9.0 N*m (92 kgf*cm, 80 in.*lbf)
Nut
3.5 N*m (36 kgf*cm, 31 in.*lbf)
70. INSTALL NO. 1 AIR CLEANER INLET
(a) Install the No. 1 air cleaner inlet with the bolt.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
