Toyota 2GR-FE - Install Vane Pump Assembly;Engine Assembly with Transaxle

EM–44
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
(c) Connect the connector and clamp.
(d) Connect the 2 clamps.

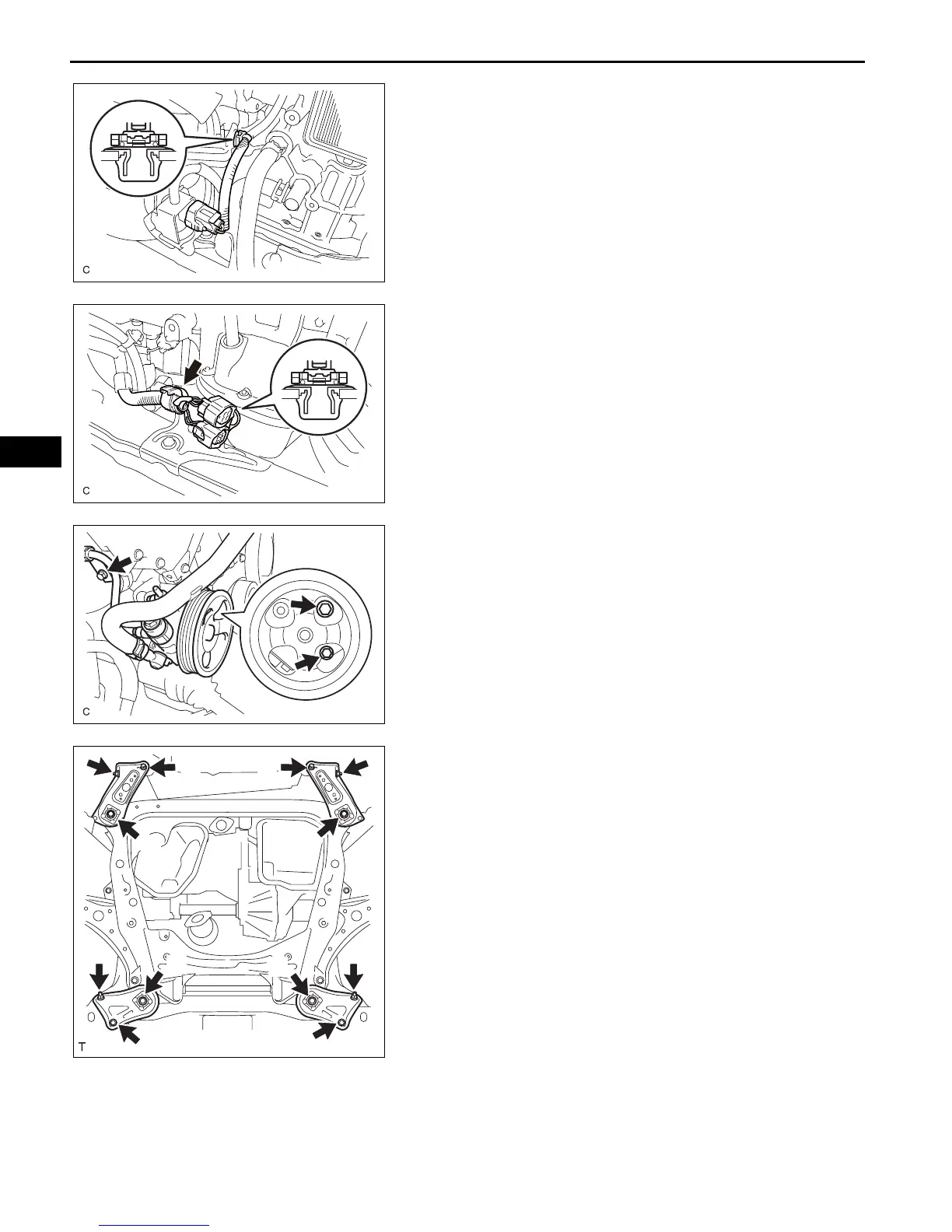

30. INSTALL VANE PUMP ASSEMBLY
(a) Install the vane pump with the 2 bolts.
Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
(b) Install the pressure feed tube clamp bolt.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
(c) Connect the power steering oil pressure switch
connector.
31. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Set the engine assembly with transaxle on the
engine lifter.
(b) Install the engine assembly to the vehicle.
(c) Install the frame side rail plates RH and LH with the
4 bolts and 2 nuts.
Torque: A
85 N*m (867 kgf*cm, 63 ft.*lbf)
B
32 N*m (329 kgf*cm, 24 ft.*lbf)
(d) Install the front suspension member brace rear RH
and LH with the 4 bolts and 2 nuts.
Torque: C
85 N*m (867 kgf*cm, 63 ft.*lbf)
D
32 N*m (329 kgf*cm, 24 ft.*lbf)
