Toyota 2GR-FE - Remove Camshaft Housing Sub-Assembly Lh;No 1 Valve Rocker Arm Sub-Assembly; Remove Valve Lash Adjuster Assembly

EM–80
2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

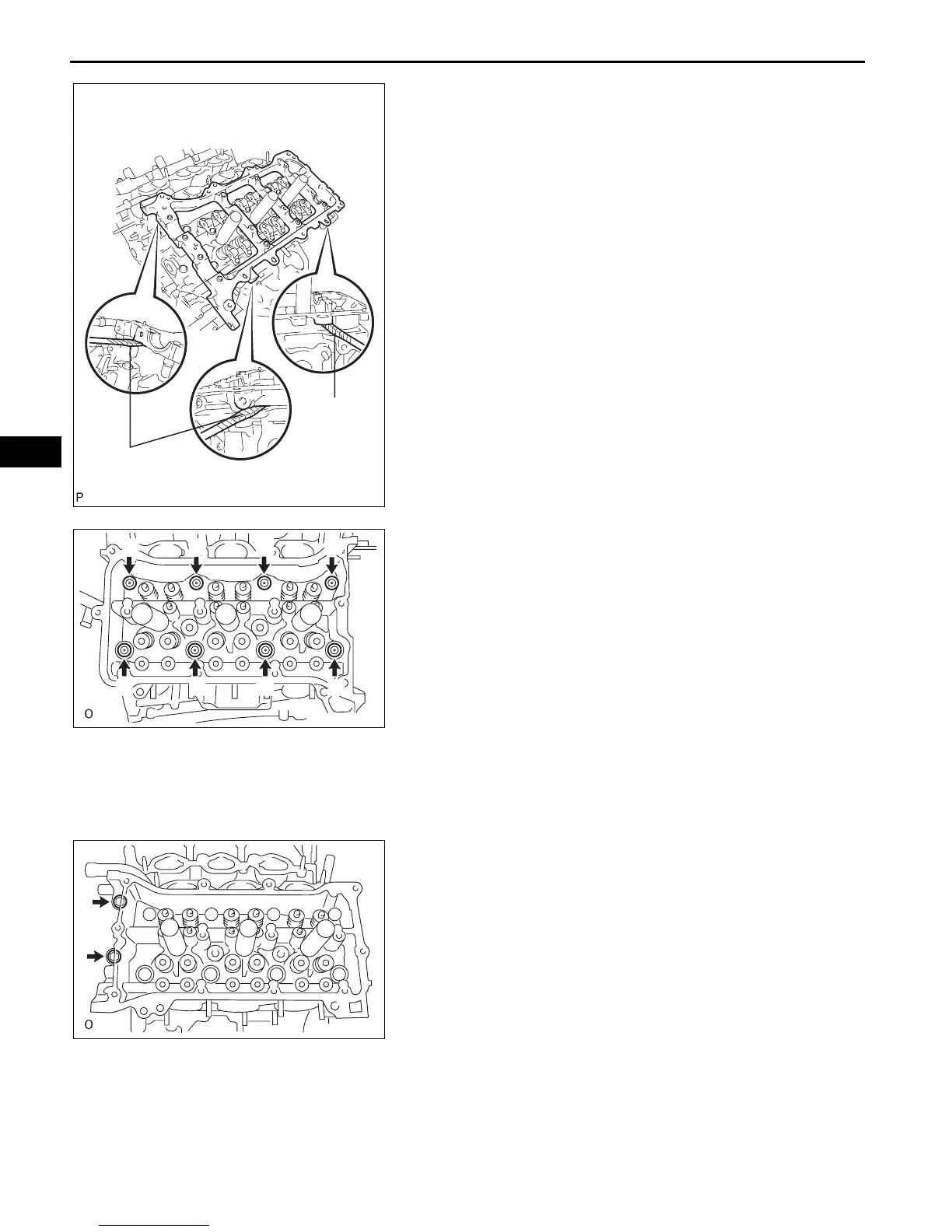

46. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY LH
(a) Remove the camshaft housing by prying between
the cylinder head and camshaft housing with a
screwdriver.
NOTICE:
Be careful not to damage the contact surfaces of
the cylinder head and camshaft housing.
HINT:
Tape the screwdriver tip before use.
47. REMOVE NO. 1 VALVE ROCKER ARM SUB-
ASSEMBLY
(a) Remove the 24 valve rocker arms.
HINT:
Arrange the removed parts in the correct order.
48. REMOVE VALVE LASH ADJUSTER ASSEMBLY
(a) Remove the 24 valve lash adjusters from the
cylinder head.
HINT:
Arrange the removed parts in the correct order.
49. REMOVE CYLINDER HEAD SUB-ASSEMBLY RH
(a) Using a 10 mm bi-hexagon wrench, uniformly
loosen the 8 bolts in the sequence shown in the
illustration. Remove the 8 cylinder head bolts and
plate washers.
NOTICE:
• Be careful not to drop washers into the
cylinder head.
• Cylinder head warpage or cracking could
result from removing bolts in an incorrect
order.
HINT:
Be sure to keep separate the removed parts for
each installation position.
(b) Remove the cylinder head and gasket.
50. REMOVE CYLINDER HEAD SUB-ASSEMBLY LH
(a) Uniformly loosen and remove the bolts in the
sequence shown in the illustration.
Protective Tape
Protective
Tape
A129709E01
3572
1864
A129712E01
2
1
A129710E01
