Toyota 2GR-FE - Remove Connecting Rod Bearing;Crankshaft

EM–84
2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

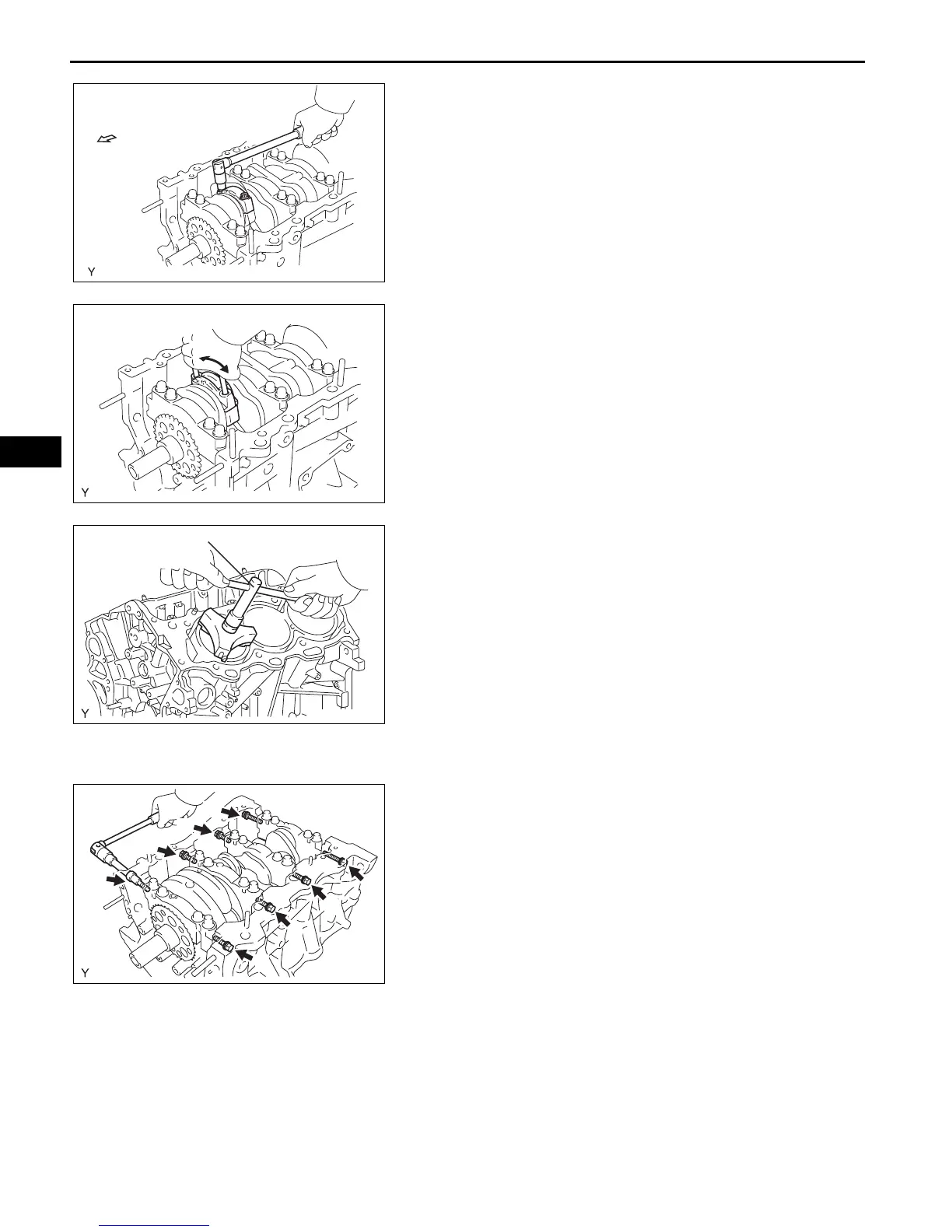

(b) Remove the 2 connecting rod cap bolts.
(c) Using the 2 removed connecting rod cap bolts,
remove the connecting rod cap and lower bearing
by wiggling the connecting rod cap right and left.
HINT:
Keep the lower bearing inserted to the connecting
rod cap.
(d) Using a ridge reamer, remove all the carbon from
the top of the cylinder.
(e) Push the piston, connecting rod assembly and
upper bearing through the top of the cylinder block.
HINT:
• Keep the bearing, connecting rod and cap
together.
• Arrange the piston and connecting rod
assemblies in the correct order.
64. REMOVE CONNECTING ROD BEARING
NOTICE:
Arrange the removed parts in the correct order.
65. REMOVE CRANKSHAFT
(a) Uniformly loosen and remove the 8 main bearing
cap bolts and seal washers in the several steps and
in the sequence shown in the illustration.
Engine Front
A129760E01
A129761
Ridge Reamer
A129720E01
5
8
7
6
1
4
3
2
A129721E03
