2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–31
EM

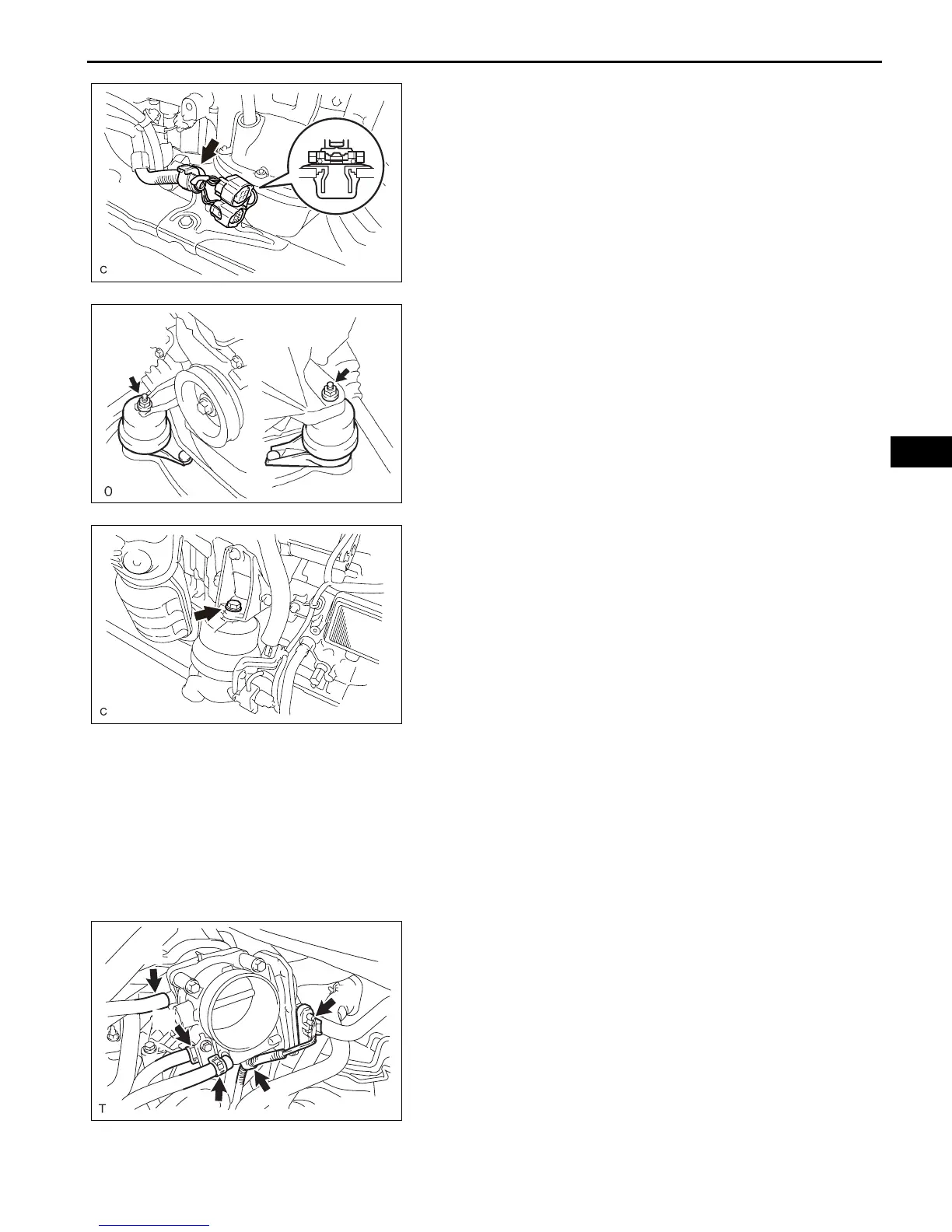

(b) Disconnect the 2 clamps.
(c) Remove the 2 nuts and disconnect the engine
mounting insulators RH and LH.
(d) Remove the bolt and disconnect the engine
mounting insulator FR.
62. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH (See
page DS-9)
63. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (See
page DS-9)
64. REMOVE ENGINE WIRE
65. REMOVE STARTER ASSEMBLY (See page ST-141)
66. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
HINT:
See page AX-207.
67. REMOVE DRIVE PLATE AND RING GEAR SUB-
ASSEMBLY (See page EM-12)
68. SECURE ENGINE
(a) Secure the engine onto an engine stand with the
bolts.
69. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
(a) Disconnect the 2 water by-pass hoses from the
throttle with motor body assembly.
(b) Disconnect the vapor feed hose.
(c) Disconnect the throttle with motor body assembly
connector and clamp.
(d) Disconnect the No. 1 ventilation hose.
