EM–46
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
49. INSTALL EXHAUST PIPE ASSEMBLY FRONT (See
page EX-4)
50. INSTALL EXHAUST PIPE NO. 1 SUPPORT BRACKET
(See page EX-4)

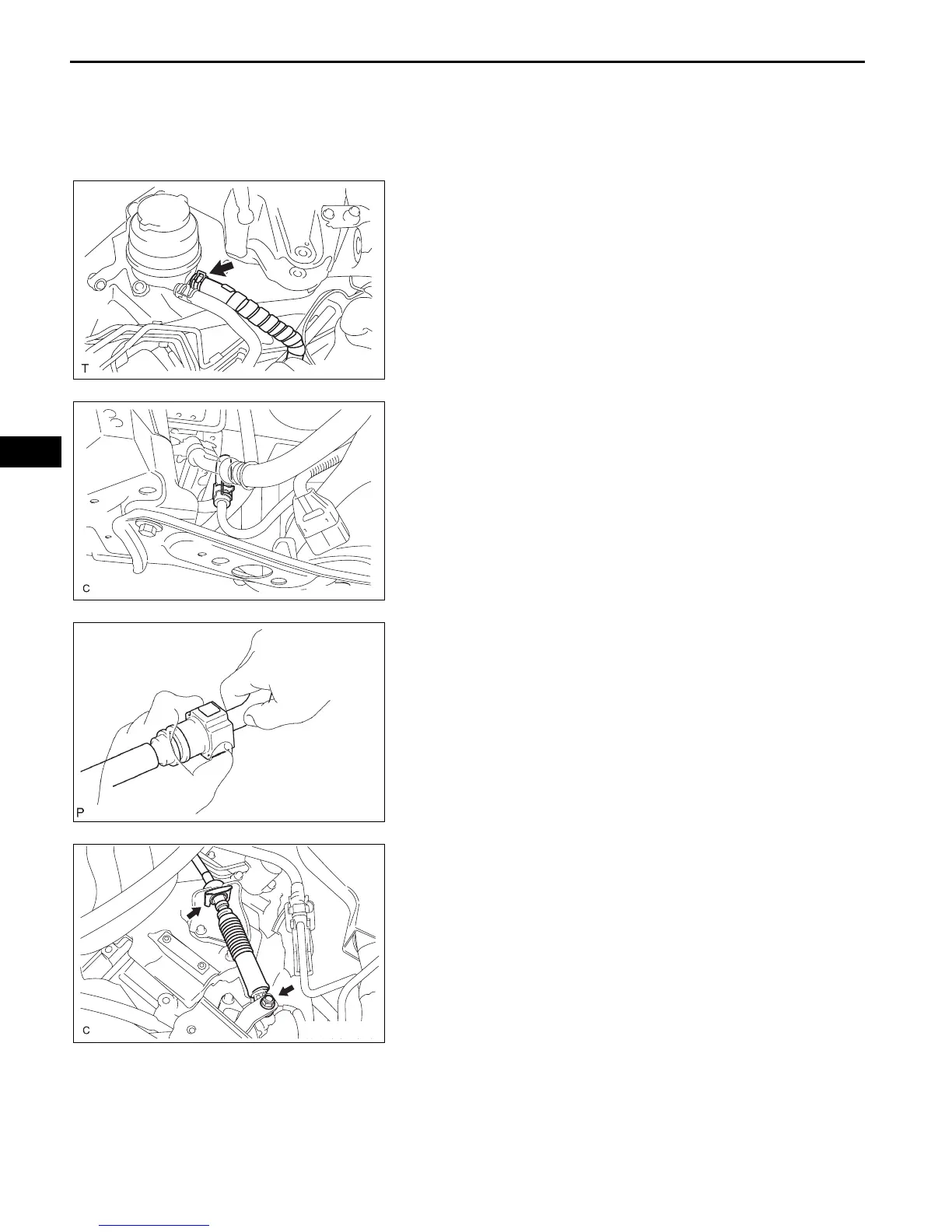

51. CONNECT NO. 1 OIL RESERVOIR TO PUMP HOSE
(a) Connect the No. 1 oil reservoir to pump hose.
52. CONNECT RETURN TUBE SUB-ASSEMBLY
(a) Connect the return tube sub-assembly.
53. CONNECT FUEL TUBE SUB-ASSEMBLY
(a) Push in the fuel tube connector to the fuel pipe until
the connector makes a "click" sound.
NOTICE:
• Check for damage or contamination on the
connected part of the pipe.
• Check if the pipe and the connector are
securely connected by trying to pull them
apart.
(b) Install the No. 1 fuel pipe clamp.
54. CONNECT TRANSMISSION CONTROL CABLE
ASSEMBLY
(a) Install the clip and nut, and connect the cable to the
transaxle.
Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
A129629
A132984
B012944
A132973
To Next Page
