18. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

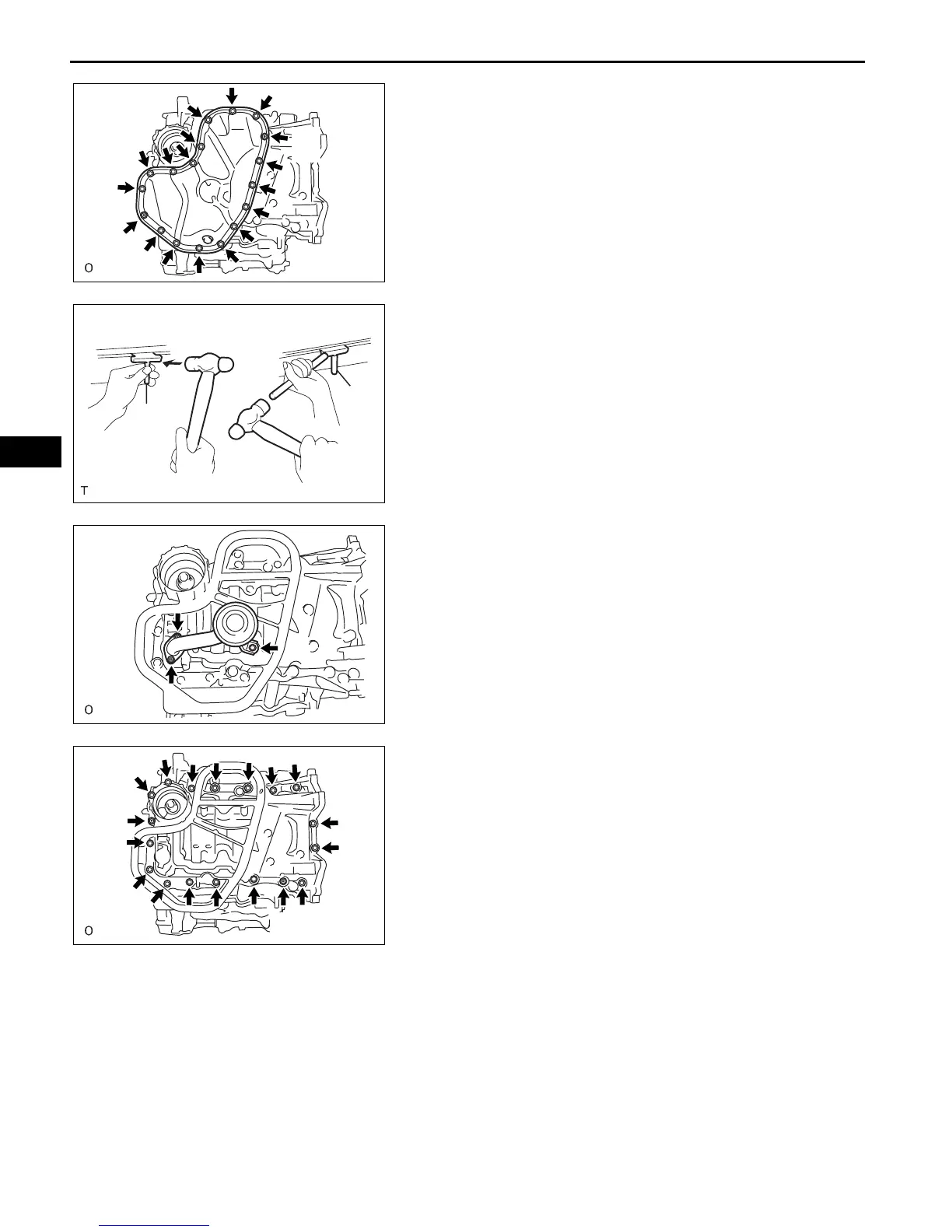

(a) Remove the 16 bolts and 2 nuts.
(b) Insert the blade of SST between the oil pans. Cut
through the applied sealer and remove the No. 2 oil
pan sub-assembly.
SST 09032-00100
NOTICE:
Be careful not to damage the contact surfaces of
the oil pans.
(c) Using "Torx" socket wrench E6, remove the 2 stud
bolts.
19. REMOVE OIL STRAINER SUB-ASSEMBLY
(a) Remove the bolt, 2 nuts, oil strainer and gasket.
(b) Using "Torx" socket wrench E6, remove the 2 stud
bolts.
20. REMOVE OIL PAN SUB-ASSEMBLY
(a) Remove the 16 bolts and 2 nuts.
HINT:
Be sure to clean the bolts and stud bolts and check
the threads for cracks or other damage.
