EM–48
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

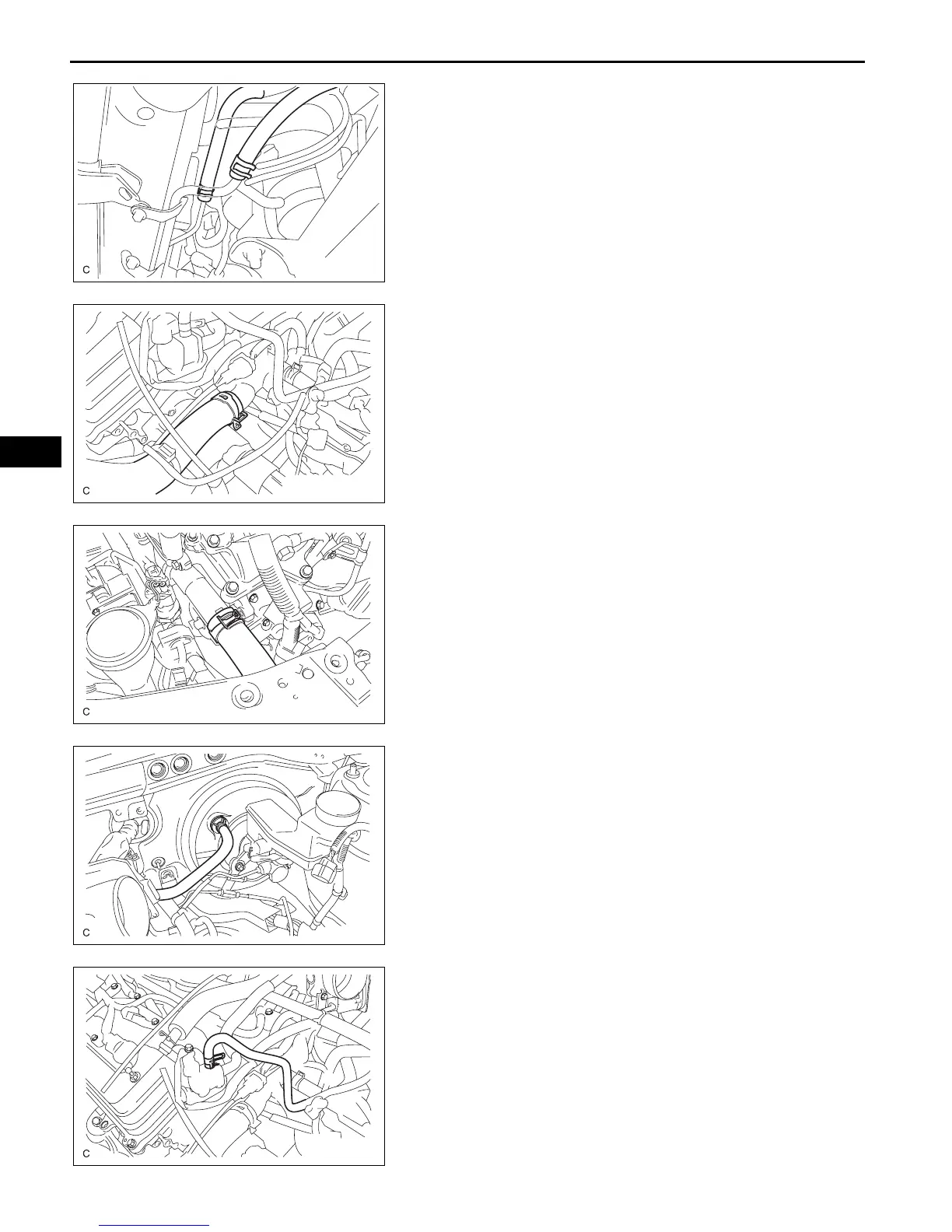

60. CONNECT NO. 1 OIL COOLER INLET HOSE
(a) Install the clamp and connect the oil cooler inlet
hose.
61. CONNECT NO. 1 OIL COOLER OUTLET HOSE
(a) Install the clamp and connect the oil cooler outlet
hose.
62. INSTALL RADIATOR HOSE INLET
(a) Install the clamp and connect the radiator hose inlet.
63. INSTALL RADIATOR HOSE OUTLET
(a) Install the clamp and connect the radiator hose
outlet.
64. CONNECT CHECK VALVE TO BRAKE BOOSTER
HOSE
(a) Install the clamp and connect the check valve to
brake booster hose.
65. CONNECT NO. 1 FUEL VAPOR FEED HOSE
(a) Install the clamp and connect the No. 1 fuel vapor
feed hose.
A133003
A132979
A132980
A132982
A132983
To Next Page
