EM–24
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

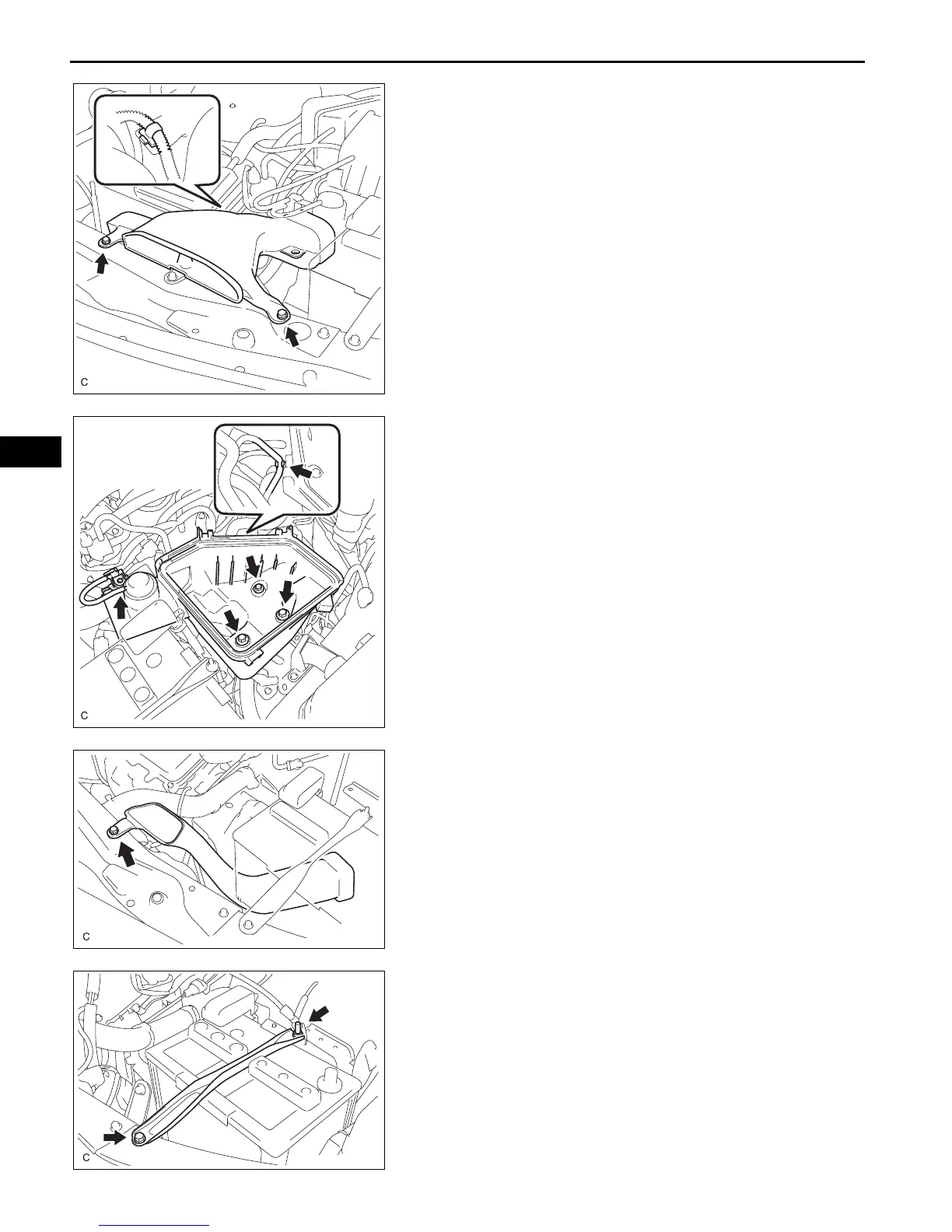

16. REMOVE AIR CLEANER INLET ASSEMBLY
(a) Remove the 2 bolts, clamp and air cleaner inlet.
17. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (See
page ES-503)
18. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
(a) Disconnect the vacuum hose and hose clamp.
(b) Remove the 3 bolts and air cleaner case.
19. REMOVE NO. 1 AIR CLEANER INLET
(a) Remove the bolt and No. 1 air cleaner inlet.
20. REMOVE BATTERY
(a) Loosen the bolt and nut, and remove the battery
clamp.
(b) Remove the battery and battery tray.
A132969
A132971
A132970
A132972

Toyota 2GR-FE Specifications

General

Configuration	V6
Displacement	3.5 L (3, 456 cc)
Compression Ratio	10.8:1
Fuel Type	Gasoline
Bore x Stroke	94 mm x 83 mm
Valvetrain	DOHC, 4 valves per cylinder
Torque	248-263 lb-ft
Oil Capacity	6.4 quarts
