2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–33
EM

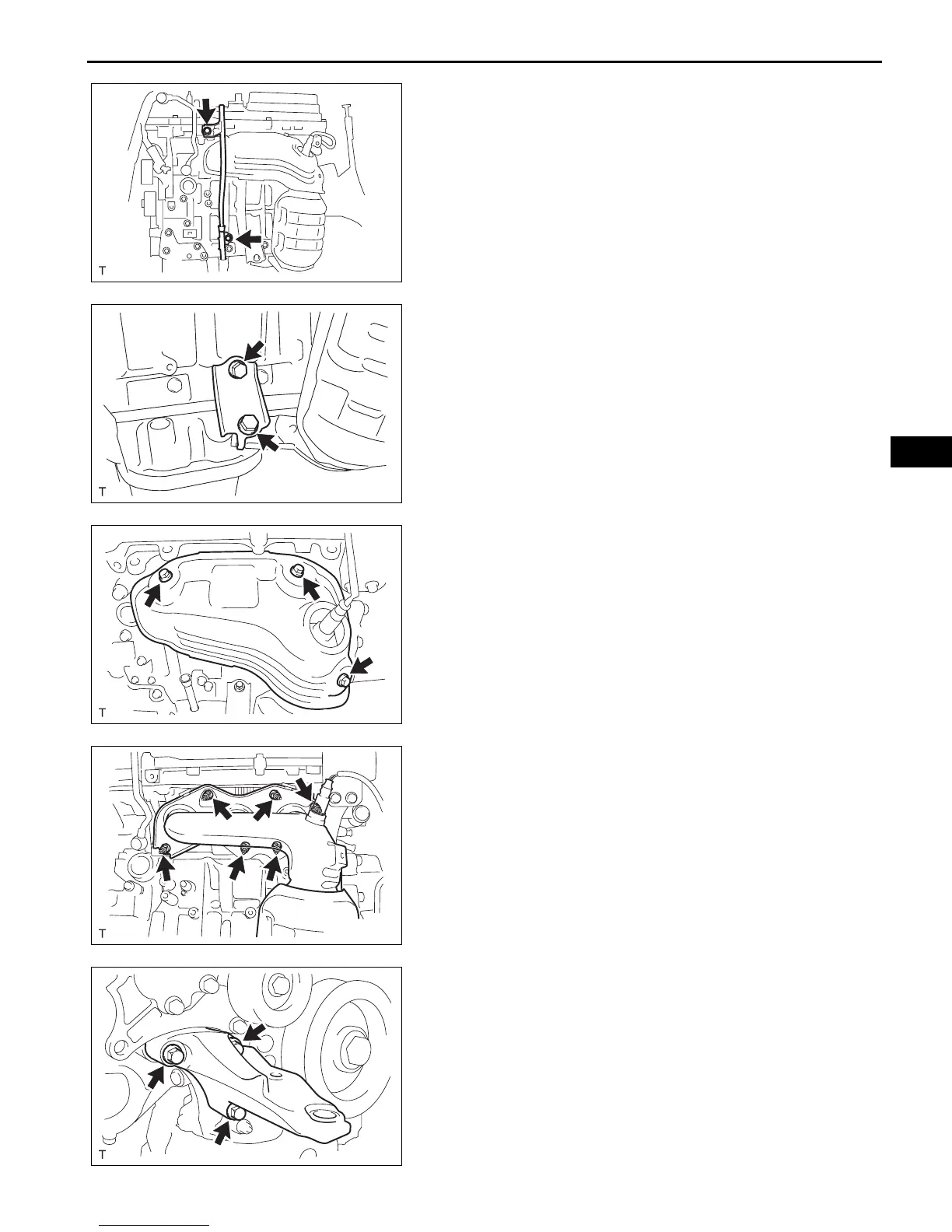

74. REMOVE OIL LEVEL GAUGE GUIDE SUB-
ASSEMBLY
(a) Remove the oil level gauge.
(b) Remove the 2 bolts, oil level gauge guides No. 1
and No. 2.
(c) Remove the O-rings from the oil level gauge guide.
75. REMOVE NO. 2 MANIFOLD STAY
(a) Remove the 2 bolts and No. 2 manifold stay.
76. REMOVE NO. 2 EXHAUST MANIFOLD HEAT
INSULATOR
(a) Remove the 3 bolts and No. 2 insulator.
77. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
(a) Uniformly loosen and remove the 6 nuts.
(b) Remove the manifold and gasket.
78. REMOVE ENGINE MOUNTING BRACKET RH
(a) Remove the 3 bolts and engine mounting bracket
RH.
A129638
A129639
A129640
A129641
A129642
