EM–52
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
84. BLEED POWER STEERING FLUID (See page PS-7)
85. CHECK FOR FUEL LEAKS (See page FU-8)
86. CHECK FOR ENGINE OIL LEAKS
87. CHECK FOR ENGINE COOLANT LEAKS (See page
CO-1)
88. CHECK FOR EXHAUST GAS LEAKS
89. CHECK SHIFT LEVER POSITION (See page AX-191)
90. CHECK AND ADJUST FRONT WHEEL ALIGNMENT
HINT:
See page SP-4.
91. CHECK IGNITION TIMING (See page EM-1)
92. CHECK ENGINE IDLE SPEED (See page EM-2)
93. CHECK CO/HC (See page EM-4)
94. CHECK FUNCTION OF THROTTLE BODY (See page
ES-503)
95. INSTALL FRONT FENDER APRON SEAL RH
96. INSTALL ENGINE UNDER COVER LH
97. INSTALL ENGINE UNDER COVER RH

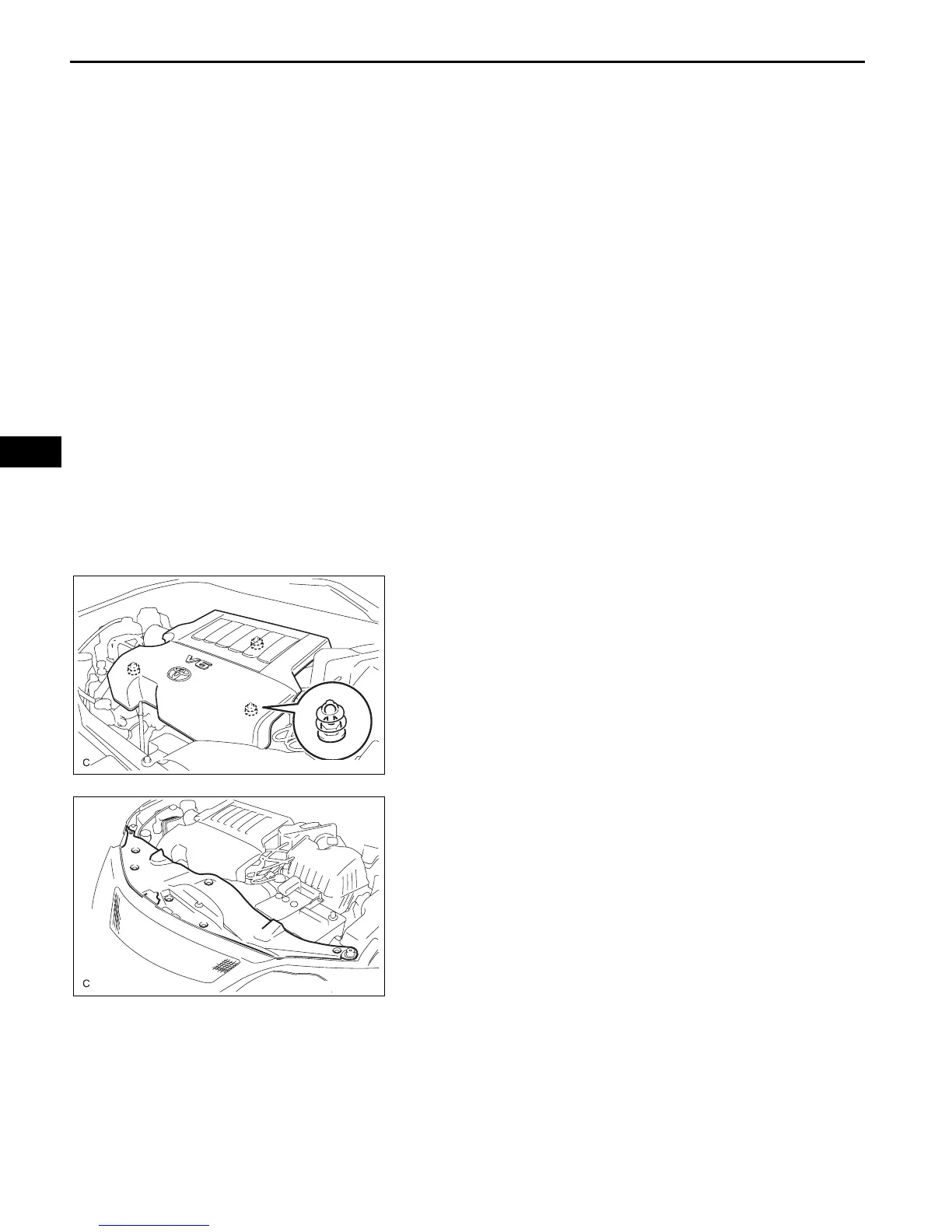

98. INSTALL V-BANK COVER SUB-ASSEMBLY
(a) Fit the 3 retainers and install the V-bank cover.
99. INSTALL COOL AIR INTAKE DUCT SEAL
(a) Install the intake duct seal with the 7 clips.
100.CHECK ABS SPEED SENSOR SIGNAL
(a) ABS: (See page BC-11).
(b) VSC (for BOSCH): (See page BC-290).
(c) VSC (for ADVICS): (See page BC-123).
A132968
A132967
