2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–65
EM

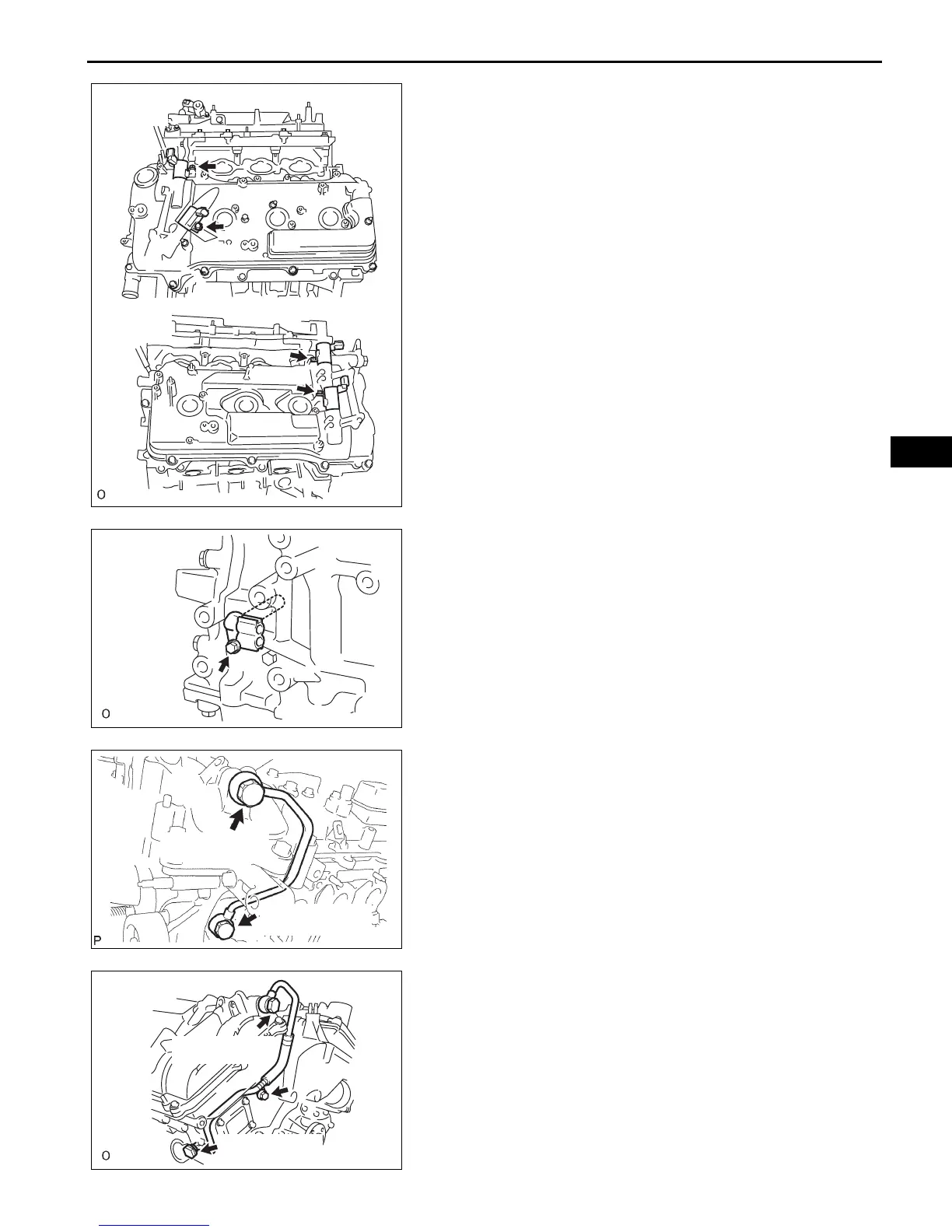

6. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
ASSEMBLY
(a) Remove the 4 bolts and 4 oil control valves.
7. REMOVE CRANKSHAFT POSITION SENSOR
(a) Remove the bolt and sensor.
8. REMOVE NO. 1 OIL PIPE
(a) Remove the 2 oil pipe unions and oil pipe.
(b) Remove the oil control valve filter LH and gaskets.
9. REMOVE OIL PIPE
(a) Remove the bolt.
(b) Remove the 2 oil pipe unions and oil pipe.
(c) Remove the oil control valve filter RH and gaskets.
LH Bank:
RH Bank:
A129662E01
A129663
Oil Pipe Union
Oil Pipe Union
A135726E01
Oil Pipe Union
Oil Pipe Union
A134878E01
To Next Page
