2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–97
EM

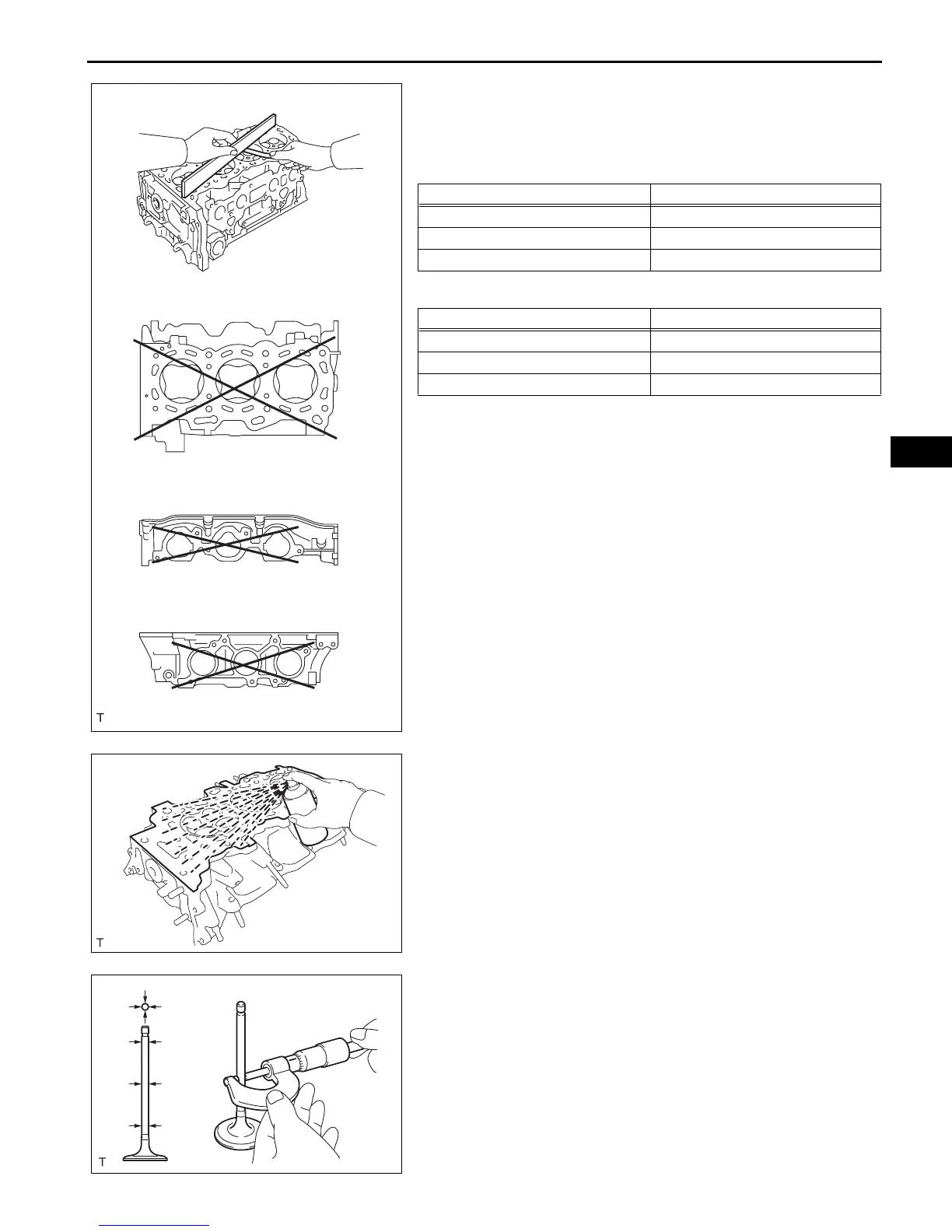

18. INSPECT CYLINDER HEAD ASSEMBLY
(a) Using a precision straight edge and feeler gauge,
measure the warpage of the contact surface of the
cylinder block and manifolds.
Standard warpage
Maximum warpage
If the warpage is greater than the maximum, replace
the cylinder head assembly.
(b) Using a dye penetrant, check the intake ports,
exhaust ports and cylinder surface for cracks.
If cracked, replace the cylinder head assembly.
19. INSPECT INTAKE VALVE
(a) Using a micrometer, measure the diameter of the
valve stem.
Valve stem diameter:
5.470 to 5.485 mm (0.2154 to 0.2159 in.)
If the valve stem is not as specified, check the oil
clearance.
Cylinder head lower side:
Intake side:
Exhaust side:
A129747E01
Item Warpage
Cylinder head lower 0.05 mm (0.0020 in.)
Intake 0.08 mm (0.0031 in.)
Exhaust 0.08 mm (0.0031 in.)
Item Warpage
Cylinder head lower 0.10 mm (0.0039 in.)
Intake 0.10 mm (0.0039 in.)
Exhaust 0.10 mm (0.0039 in.)
A120706
A121378
