Toyota 8FGCU25 Repair Manual

7-1017 DISPLAY

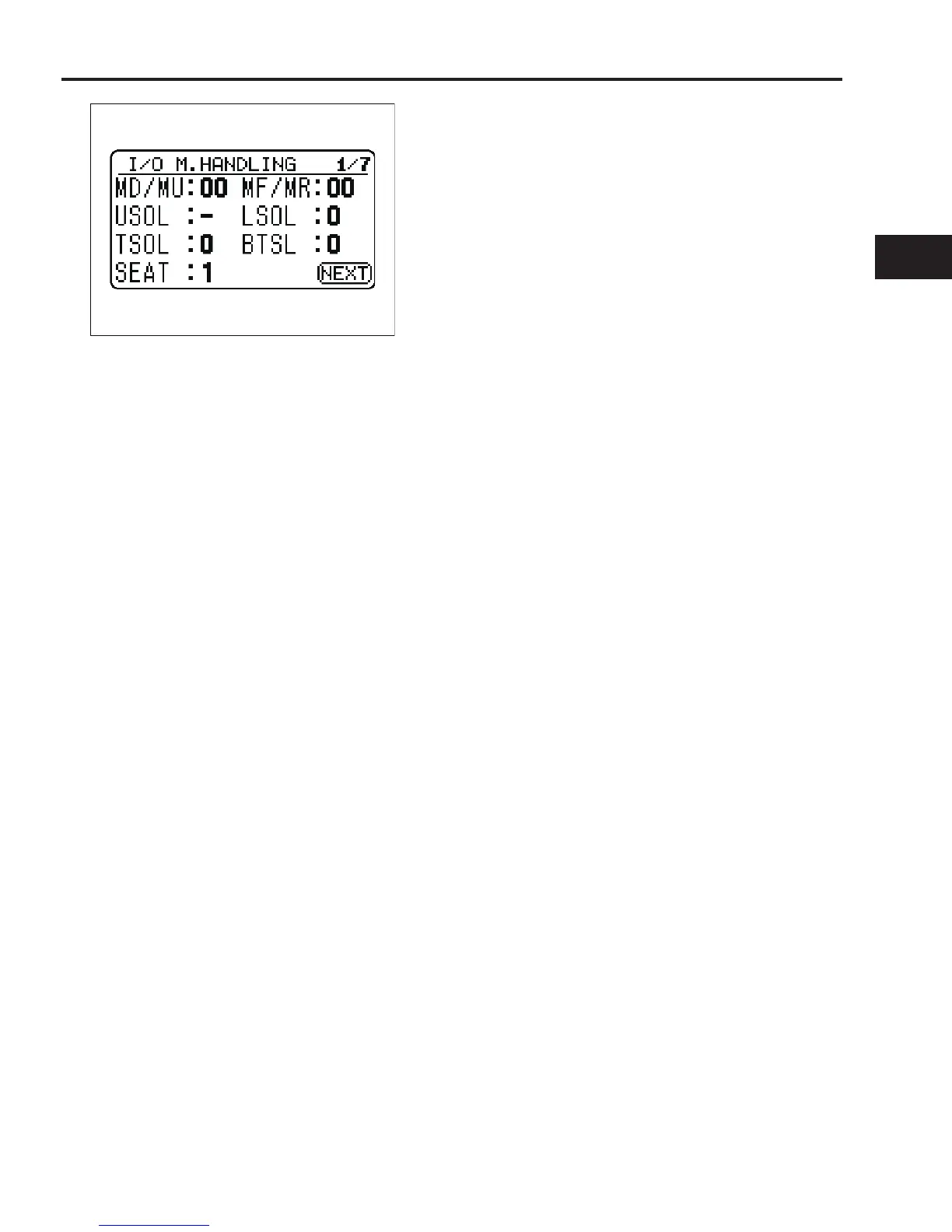

▪ "I/O M.HANDLING 1/7"
MD/MU: Lift lowering switch/Lift raising switch
Displays states of Lift lowering switch/Lift raising switch.
STD lever vehicle:
Lift lever: Lowering position
Displayed code:
MD: 1 (= ON)
MU: 0 (= OFF)
Lift lever: Neutral position
Displayed code:
MD: 0 (= OFF)
MU: 0 (= OFF)
Lift lever: Raising position
Displayed code:
MD: 0 (= OFF)
MU: 1 (= ON)
Mini lever/Joystick vehicle:
MD/MU: - = Always
MF/MR: Forward tilt switch/Backward tilt switch
Displays states of Forward tilt switch/Backward tilt switch.
STD lever vehicle:
Tilt lever: Forward tilt position
Displayed code:
MF: 1 (= ON)
MR: 0 (= OFF)
Tilt lever: Neutral position
Displayed code:
MF: 0 (= OFF)
MR: 0 (= OFF)
Tilt lever: Backward tilt position
Displayed code:
MF: 0 (= OFF)
MR: 1 (= ON)
Mini lever/Joystick vehicle:
MF/MR: - = Always
USOL: (Unused)
MF/MR: - = Always
LSOL: Lift lowering lock solenoid
Displays output signal from the controller to the lift lowering
lock solenoid.
TSOL: Tilt solenoid
Displays output signal from the controller to the tilt lock
solenoid.
BTSL: Backward tilt lock solenoid.
Displays output signal from the controller to the backward
tilt lock solenoid.
SEAT: Seat switch
Refer to "I/O TRAVELING 2/3"
Switch (4): To "I/O M.HANDLING 2/7" screen
7

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
