7-136 7 DISPLAY
7.2.6.5 MATCHING SAS "SAS"
Matching is performed for SAS functions.
Operating Procedure

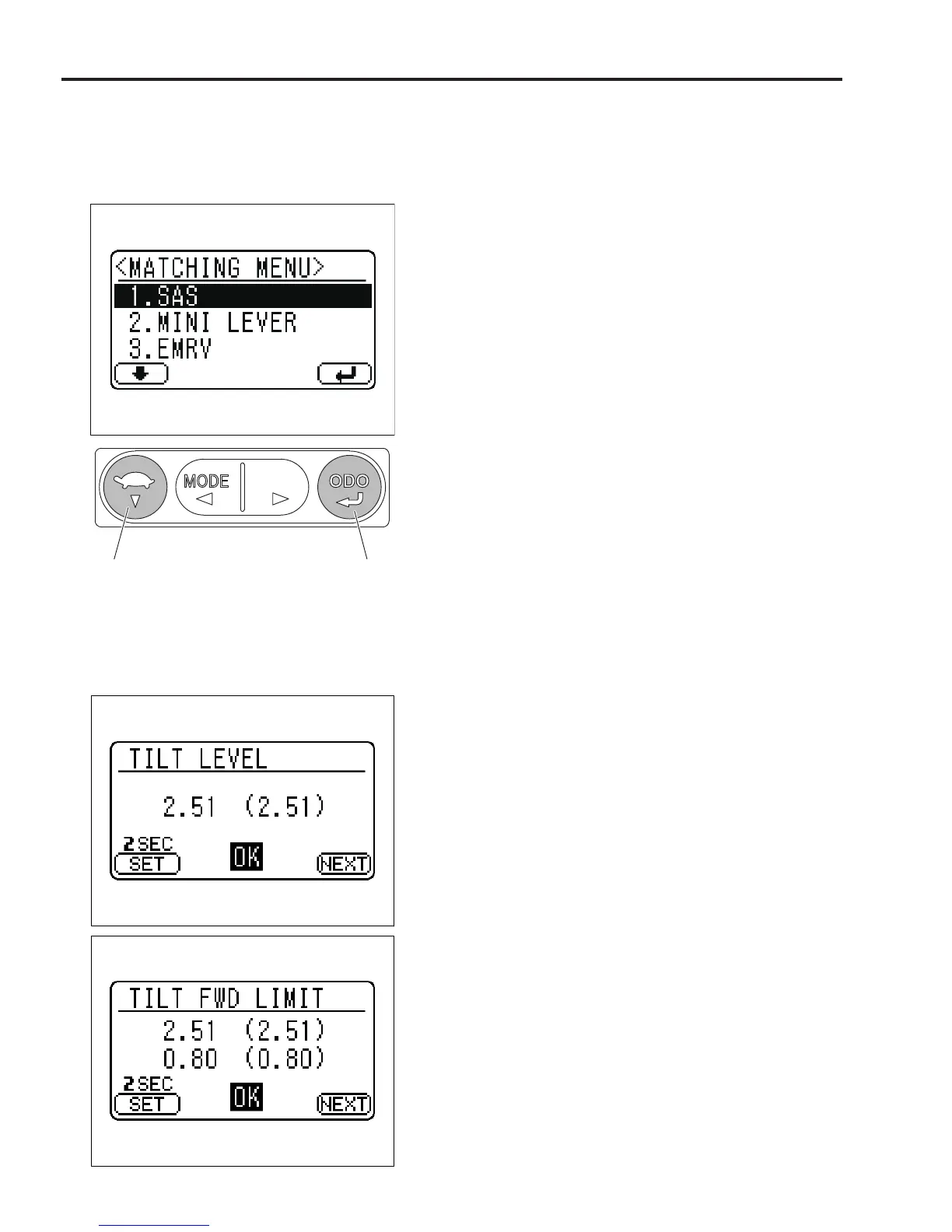

Step 1 Display the "MATCHING MENU" screen.
Switch (1) Switch (4)
Step 2 Check that "1. SAS" is selected, and press (enter)
switch (4) to display "TILT LEVEL" screen.
On SAS matching screen:
Values in bracket ( ) are currently stored value.
Values outside bracket ( ) are current vehicle condi-
tion value.
NOTICE:
▪ You cannot move directly from each matching
set screen of "SAS" to the matching set
screen of the other items. Return to "MATCH-
ING MENU" screen once, then move to match-
ing set screen of each item.
▪ "TILTL LEVEL" Screen
If matching is performed (press switch (1)), "OK" is indic-
ated on the display.
Switch (1): Pressing this for more than 2 seconds will per-
form matching.
Switch (4): To "TILT FWD LIMIT" screen
▪ "TILT FWD LIMIT" Screen
If matching is performed (press switch (1)), "OK" is indic-
ated on the display.
Switch (1): Pressing this for more than 2 seconds will per-
form matching.
Switch (4): To "TIRE POSITION" screen
