7-1137 DISPLAY

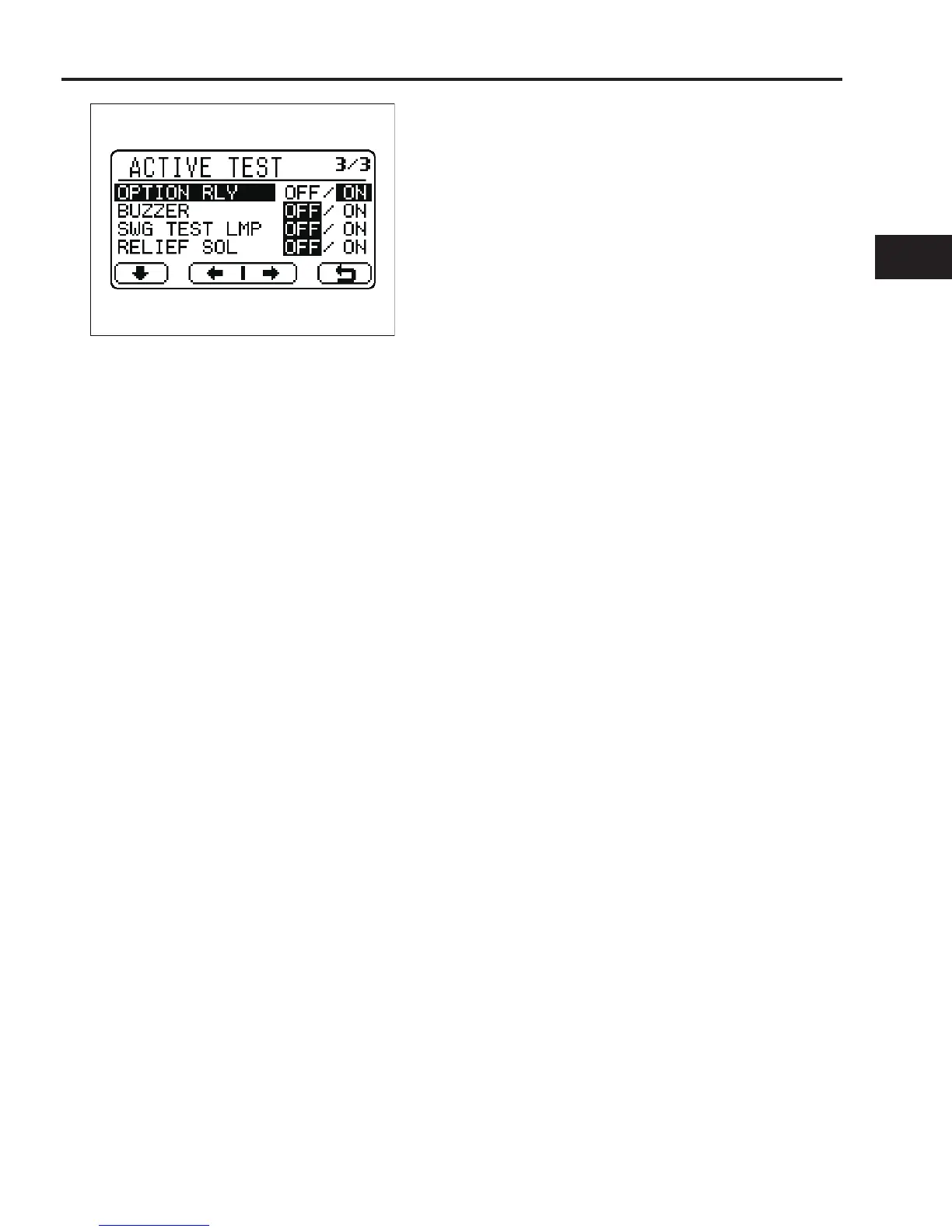

â–ª "ACTIVE TEST 3/3"
NOTICE!When performing "RELIEF SOL" item, make
sure to sit on the seat correctly. If not, OPS is activated
and material handling operation may be limited.
OPTION RLY:
T/C interlock relay forced operation (T/C interlock specifica-
tion vehicle only)
Check that T/C interlock can be enabled and disabled.
ON (relay ON): Travel is possible
OFF (relay OFF): Travel is not possible
BUZZER: Warning buzzer forced operation
Check the warning buzzer operation.
ON: Buzzer sounds
OFF: Buzzer stops
SWG TEST LAMP: Swing lock solenoid operation display
Check the swing lock operation states according to travel-
ing and material handling states by OPS light.
Vehicle without swing lock: (Unused)
Vehicle with swing lock:
ON (Indicated):
Operation situation is indicated with OPS light.
OPS light ON: Swing lock operated
OPS light OFF: Swing lock released
OFF (not indicated):
OPS light operates as OPS light (normal operation).
Switch (4): Returning to "ANALYZER MENU" screen
RELIEF SOL:Electromagnetic relief valve forced operation
Check the quality of ERV by any material handling opera-
tion.
ON (SOL ON): Material handling possible
OFF(SOL OFF): Material handling not possible
(Depending on the attachment type, 3 to 5way may be op-
erated.)
(It may be forward tilting due to a load)
