Toyota 8FGCU25 Repair Manual

9-2079 WIRING DIAGRAM
9.2 RELAY LOCATIONS

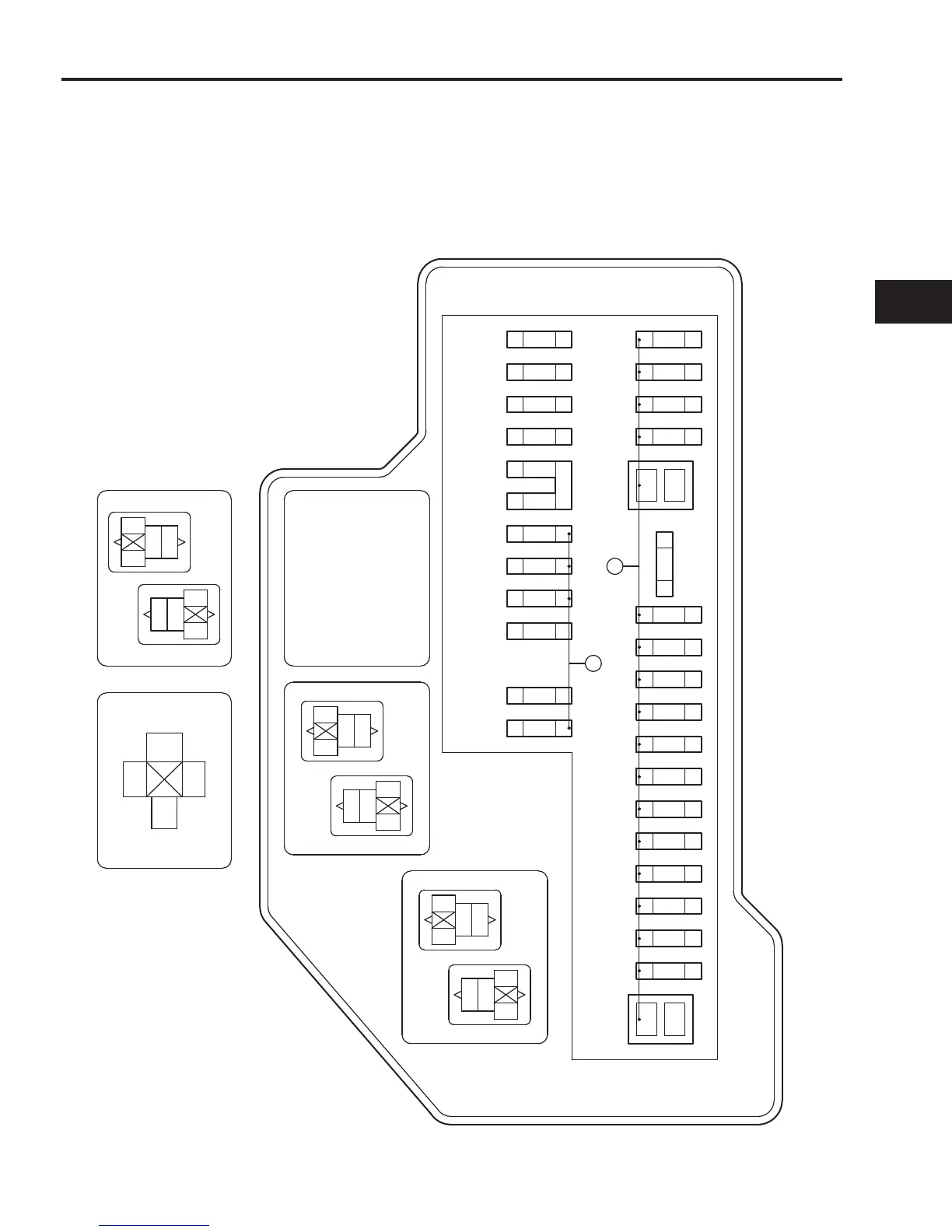

9.2.1 ENGINE ROOM R/B : ENGINE ROOM LEFT
40A AM1
*7
SPARE
* 1:15A E-THRO (4Y-E)
20A EDU (1ZS)
7.5A ECU-B2 (4Y-M,1DZ)
* 2:LPG MAIN RELAY (4Y-E)
ASC RELAY (4Y-M,1DZ)
EZ MAIN RELAY (1ZS)
* 3:15A (4Y-E)
7.5A (4Y-M,1DZ,1ZS)
* 4:POWER OFF RELAY (1ZS,4YE)
* 5:30A STA (4Y-E,4Y-M,1DZ)
30A AM2 (1ZS)
* 6:15A (4Y-E)
20A (1ZS)
* 7:40A AM2 (4Y-E,4Y-M,1DZ)
50A STA (1ZS)
* 8:10A SAS-IG (1ZS,4YE)
* 9:ST RELAY (4Y-E,4Y-M,1DZ)
EFI MAIN RELAY (1ZS)
GLOW PLUG RELAY:
SEE PAGE E2-6
SPARE
SPARE
SPARE
EFI
*1
BLR
*5
RR WIP
FR WIP
HORN
ALT-S
STOP
ACC-B
TAIL
ECU-B
HTR
WORK LP
HEAD
ST
GAUGE
BACK LP
SFT
TURN
IGN
ECU-IG
*2
*10,*11
*4
AM2 RELAY
*9
35
2
1
EFI MAIN RELAY
*10:4Y-E
*11:1ZS
C/OPN RELAY
ST RELAY
1
1
3
3
5
5
2
2
2
53
1
1
2
5 3
35
2
1
1
3 5
2
12
12
12
12
1
2
2
12
12
30A
20A
SPARE
5A
20A
20A
7.5A
*8
7.5A
7.5A
7.5A
5A
10A
*3
15A
10A
7.5A
*6
7.5A
7.5A
10A
7.5A
7.5A
15A
15A
15A
10A
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
E3-4
9
