7-557 DISPLAY
7 DISPLAY
7.1 MULTI-FUNCTION DISPLAY DX ............................................................ 55
7.2 SERVICE FUNCTIONS "MASK MENU".................................................. 71
7.1 MULTI-FUNCTION DISPLAY DX
7.1.1 General
The multi-function display DX has various functions that indicate / notify the vehicle’s information such as
vehicle speed. And the operator or administrator can set the vehicle performance with this display. Further-
more, it has functions to perform maintenance, feeling adjustments and specification setting as a service
function.
On this model, a graphic LCD (Liquid Crystal Display) has been adopted and this provides various informa-
tion to be easy-to-understand with expressive capability.

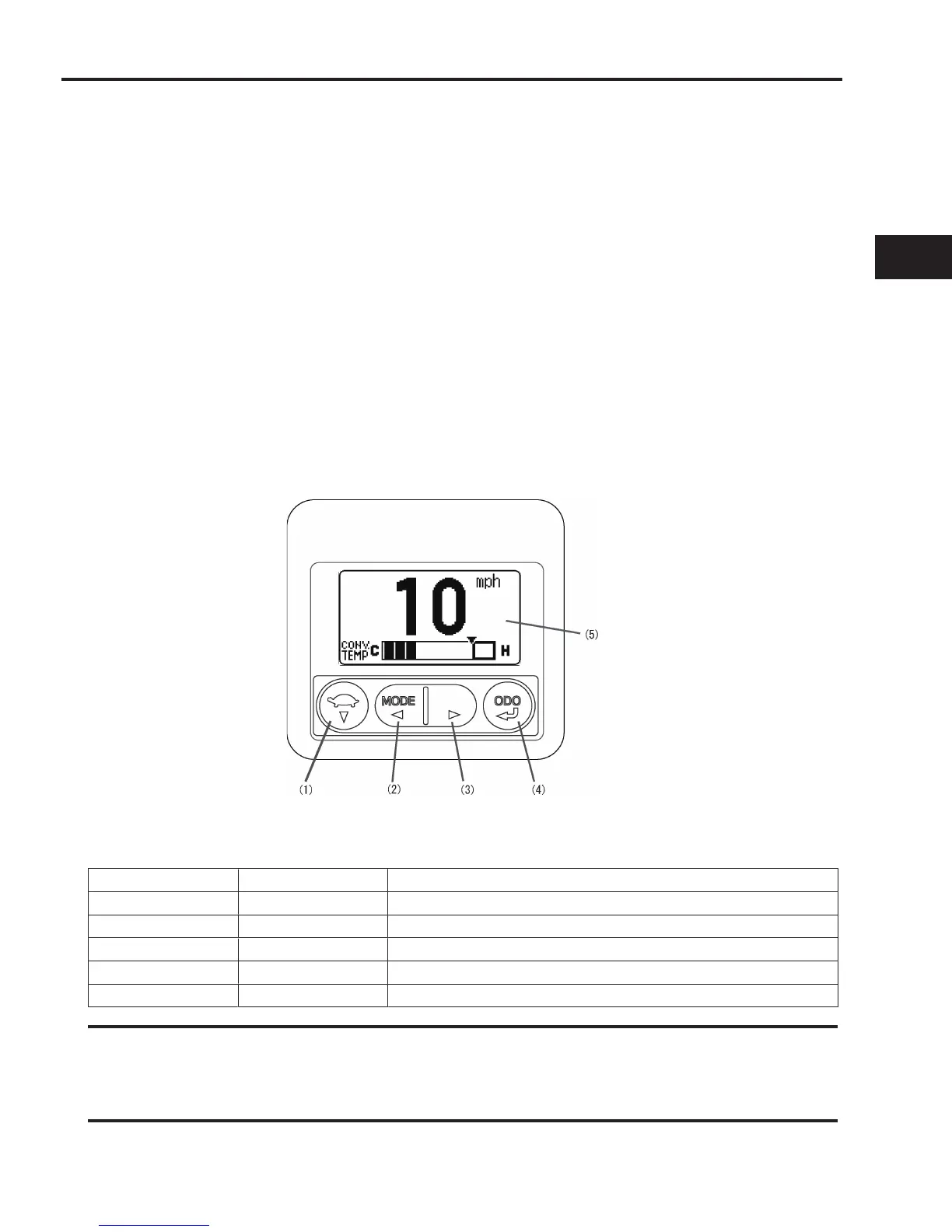

Multi-function display DX
No. Switch Name Description
(1) Switch (1) Low speed setting switch / Down switch
(2) Switch (2) Mode select switch / Left switch
(3) Switch (3) Right switch
(4) Switch (4) Meter mode select switch / Enter switch
(5) - Multiple screen display area
NOTICE
Always operate switches on the display with a fingertip. If a sharp pointed tool is used, the switch
may be damaged.
7
