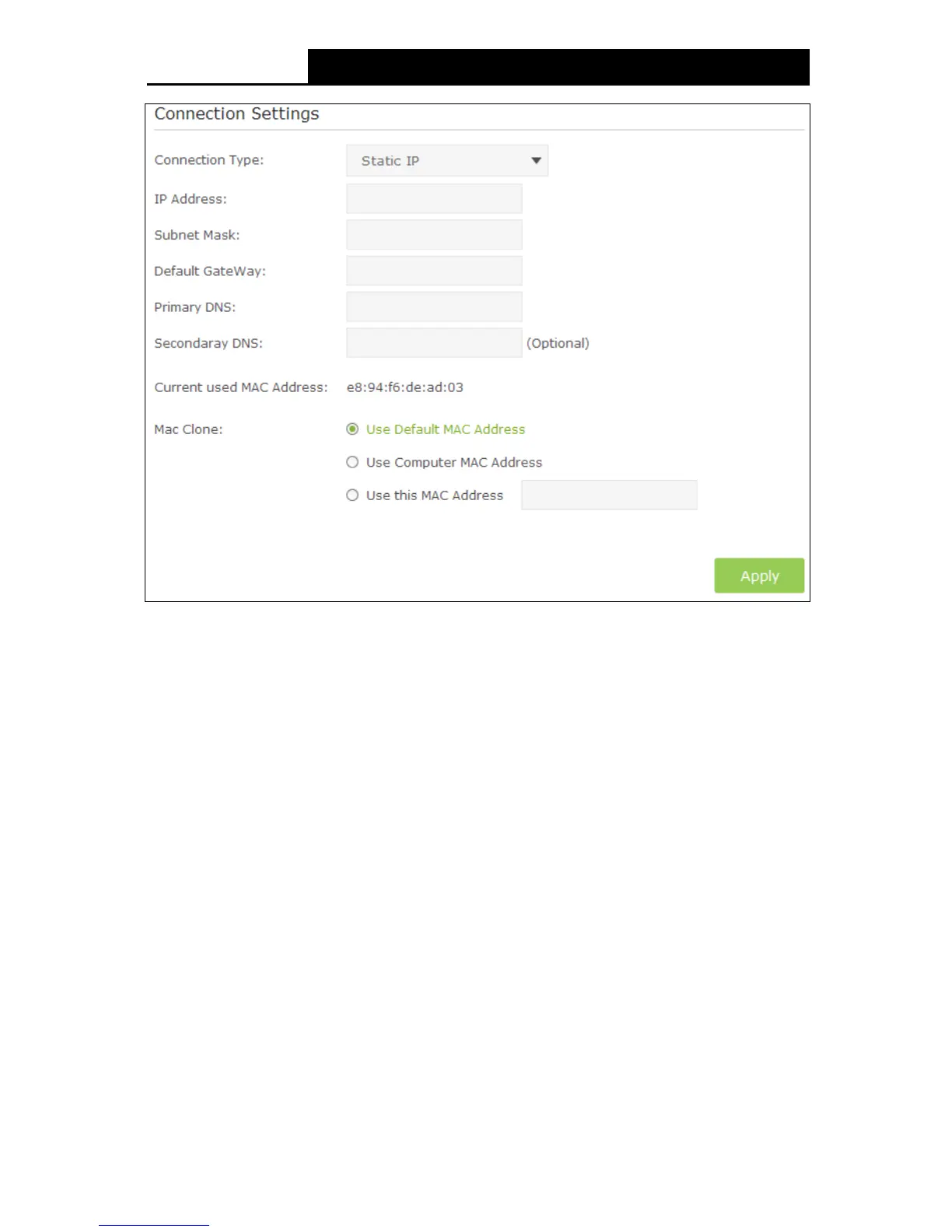

Figure 5-7
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The
Route will use this DNS Server for priority.
Current used M AC Addre ss - This field displays the current MAC address of the Internet
port.
MAC Clone - You can select one of below methods to change MAC address for this WAN
Interface depend on your needs. If you select Use this M AC Addre ss, you can enter the
MAC Address you want to change.
Click the Apply button to save the settings.
3) L2TP(Dynamic IP)
Choose L2TP(Dynamic IP) in the drop-down list if your ISP provides L2TP(Dynamic IP)
information to you. You should set User name, Password and Server IP Address/Name in the
screen below.
29
