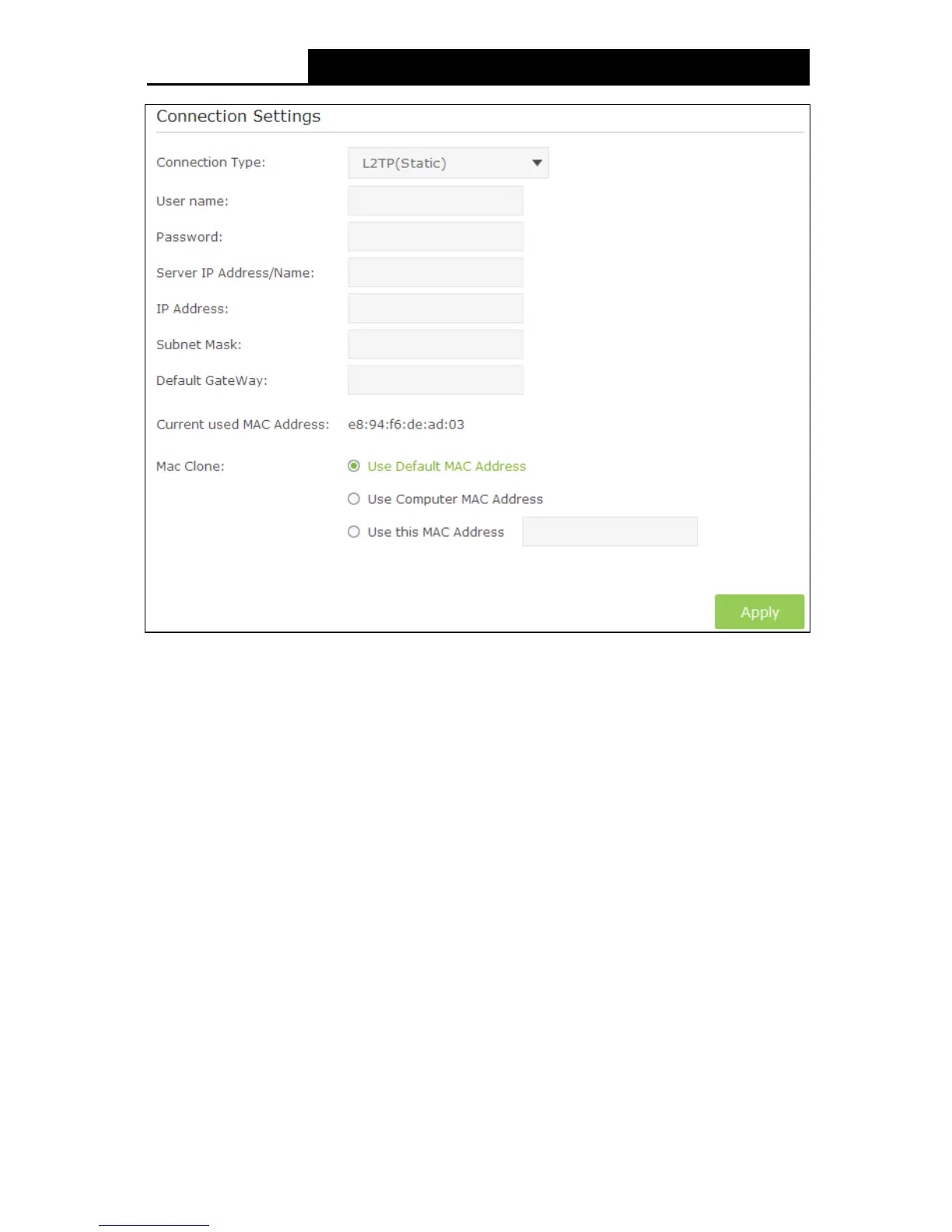

Figure 5-9
User na me /Password - Enter the Use rna me and Password provided by your ISP. These
fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
Server IP Address/Name - Enter the server IP address or domain name provided by your
ISP. If you have difficulty with this process, please contact your ISP.
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
Current used M AC Add re ss - This field displays the current MAC address of the Internet
port.
MAC Clone - You can select one of below methods to change MAC address for this WAN
Interface depend on your needs. If you select Use this M AC Addre ss, you can enter the
MAC Address you want to change.
Click the Apply button to save the settings.
31
