VALVE REBUILD PROCEDURE con’t
VALVE PACK
MAINTENANCE KIT
Part #CT-VPO-TB

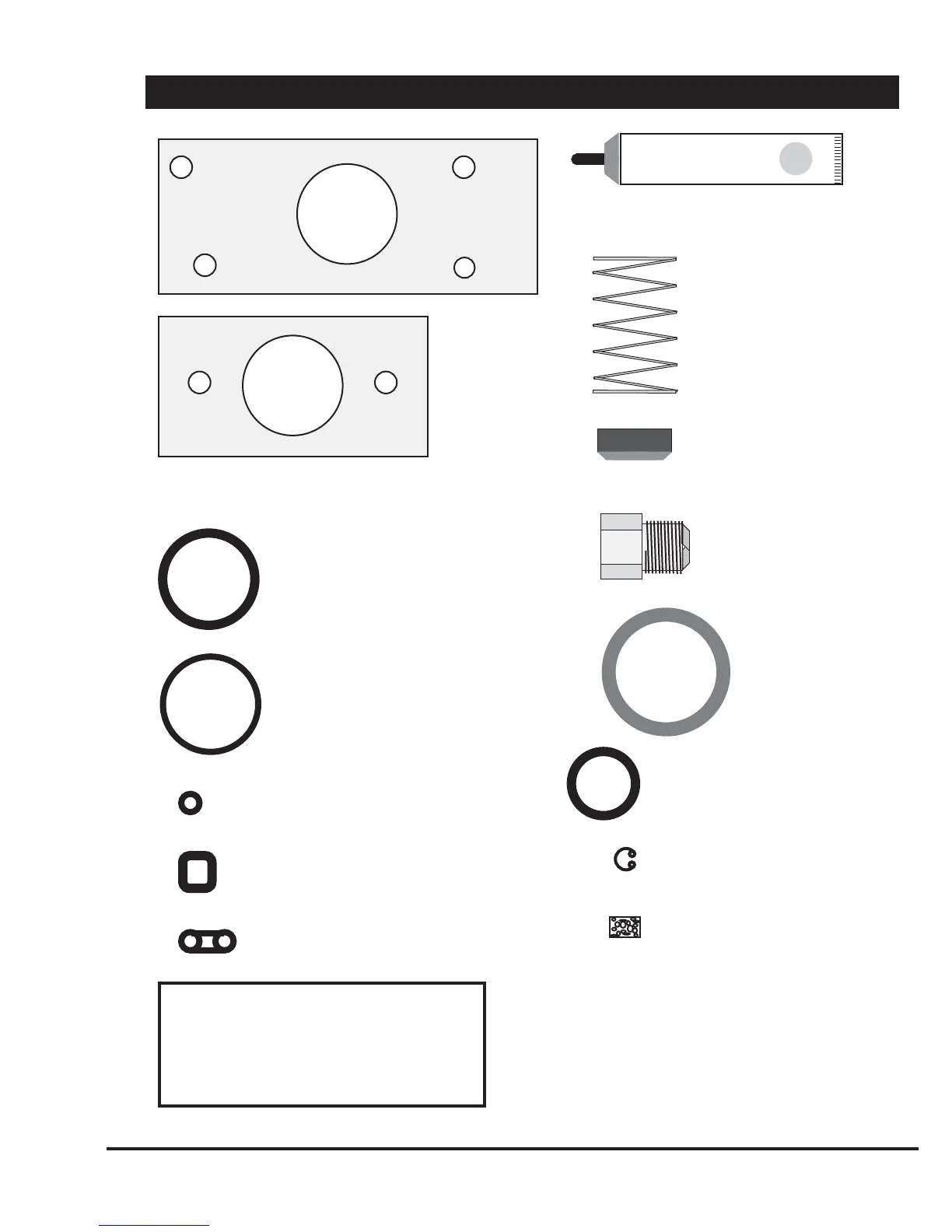

BREAKDOWN DRAWING #2
2 - PAPER GASKETS
*between manifolds and box
4 - RUBBER O-RINGS
*between valve body and manifolds
& valve body and face plate
6 - RUBBER O-RINGS
*on valve cartridges
2 - RUBBER O-RINGS
*between valve body and face plate
2 - RUBBER GASKETS
*between solenoid and harness
2 - RUBBER GASKETS
*between valve body and solenoid
2 - BRASS FILTERS
*within Static Tank orifi ce
1 - SEAL
WASHER
*On Y-fi lter cap
2 - SNAP RINGS
*retains fi lter in Static
Tank orifi ce
2 - RUBBER O-RINGS
*on valve cartridges
NOTE - One VALVE PACK MAINTENANCE
KIT is required for each valve in the TIREBOSS
system.
(Eg. Systems controlling drives and trailers will
require two VALVE PACK MAINTENANCE KITS.)
1 - INLET CHECK
VALVE
*between air supply
manifold and valve
body
1 - SPRING
*on valve cartridges
1 - VALVE SEAT
POPPET
*on valve cartridges
1 - TUBE OF GREASE
*Lubriplate 1.75 oz tube
Lubriplate
