VALVE REBUILD PROCEDURE con’t
VALVE BODY

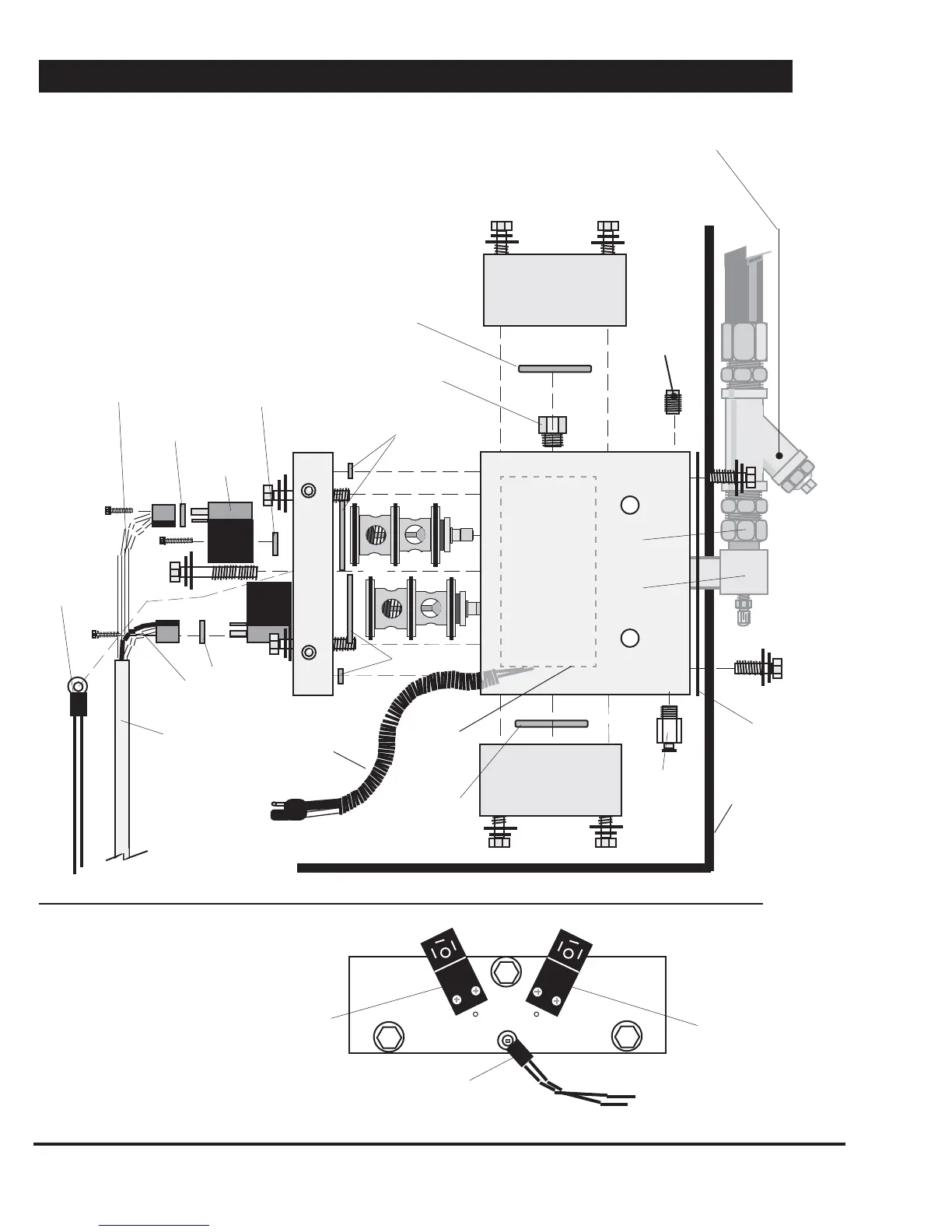

BREAKDOWN DRAWING #1
*included in Valve Pack Maintenance Kit
Y-FILTER - Clean metal screen inside
Y-fi lter and replace seal washer
Box
Sidewall
AIR SUPPLY
SIDE
MANIFOLD
EXHAUST
SIDE
MANIFOLD
HEATER
FOIL
(OPTIONAL)
HEATER
WIRE
(OPTIONAL)
SOLENOID
FACE
PLATE
(See
below)
INLET
CHECK VALVE*
BRASS
PLUG
(only on
some
valves)
(Do not
remove)
1/4” AIRLINE
FITTING
(To avoid distort-
ing fi tting, use
6 point socket
to remove and
replace)
90
o
PIPE FIT-
TING
7/8 COUPLER
SOLENOID
CABLE and HAR-
NESS’S
(Mark cable and
harness positions
prior to disassembly
to ensure they are
reinstalled in origi-
nal position during
assembly)
Red/Green
Black/White
THERMISTOR
(OPTIONAL)
VALVE BODY FACE PLATE
(View from front)
THERMISTOR
(OPTIONAL)
SOLENOID
(with Red/Green
Harness)
SOLENOID
(with White/Black
Harness)
O-RING*
O-RING*
O-RING*
O-RINGS*
GASKET*
GASKET*
GASKET*
PAPER
GASKET*
