17.3.2 Slope of a pH Electrode
As mentioned above, a pH electrode produces 0 mV output at around 7.00 pH. As the pH goes up,
an “ideal” pH electrode produces –59.16mV/pH unit at 25
O
C As the pH goes down, an ideal pH
electrode produces +59.16mV/pH unit. In practice, pH electrodes usually produce slightly less than
this. The output of a pH electrode is expressed as a percentage of an ideal electrode. For example,
an ideal electrode that produces 59.16mV/pH unit has “100% Slope”. An electrode that produces
50.15mV/pH unit has “85% Slope”.

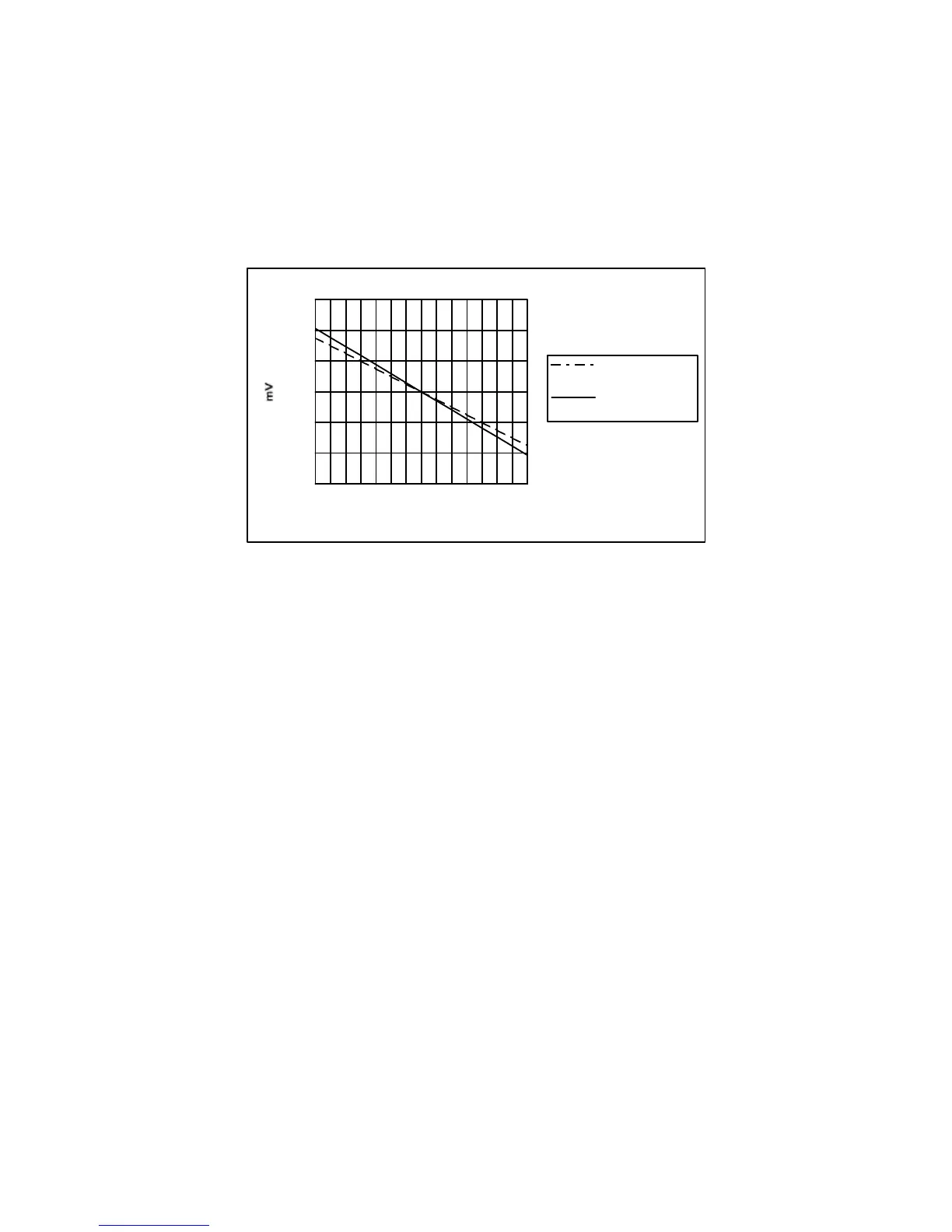

Figure 17-2 illustrates the principle of electrode slope, using a pH sensor as an example.
-600
-400
-200
0
200
400
600
0 7 14
85% Slope at 25
oC (50.15mV/pH)
100% Slope at 25
oC (59.16mV/pH)
Response of pH Electrode, as a Function of Slope
pH
Figure 17-2
