Obtain IP parameters via Flash or DHCP
TR-Electronic GmbH 2020, All Rights Reserved Printed in the Federal Republic of Germany
Page 80 of 91 TR-ECE-BA-GB-0163 v03 10/07/2020
11.2 Example, obtaining IP parameters via DHCP server
11.2.1 Requirements
• An appropriate software is required for the DHCP server, which can be obtained free of
charge from Rockwell Automation:
– Program: BootP DHCP EtherNet/IP™ Tool
– Download: Rockwell Automation - Compatibility & Downloads
– The tool is part of the control software if the Rockwell control system “Logix” is used.
• The program can be installed on a PC running under a WINDOWS
®
operating system. The
PC acting as DHCP server must be in the same network as the measuring system to be
parameterized.
11.2.2 Procedure
1. Connect the measuring system with the DHCP server
Ensure the measuring system functions as a DHCP client:
– Hardware switch = 0x00; 0xFF if Configuration Control state = unknown
– Instance Attribute 3 Configuration Control = 0x0000 0002
-> matches the as-delivered status!
2. Start BOOTP/DHCP Server Utility

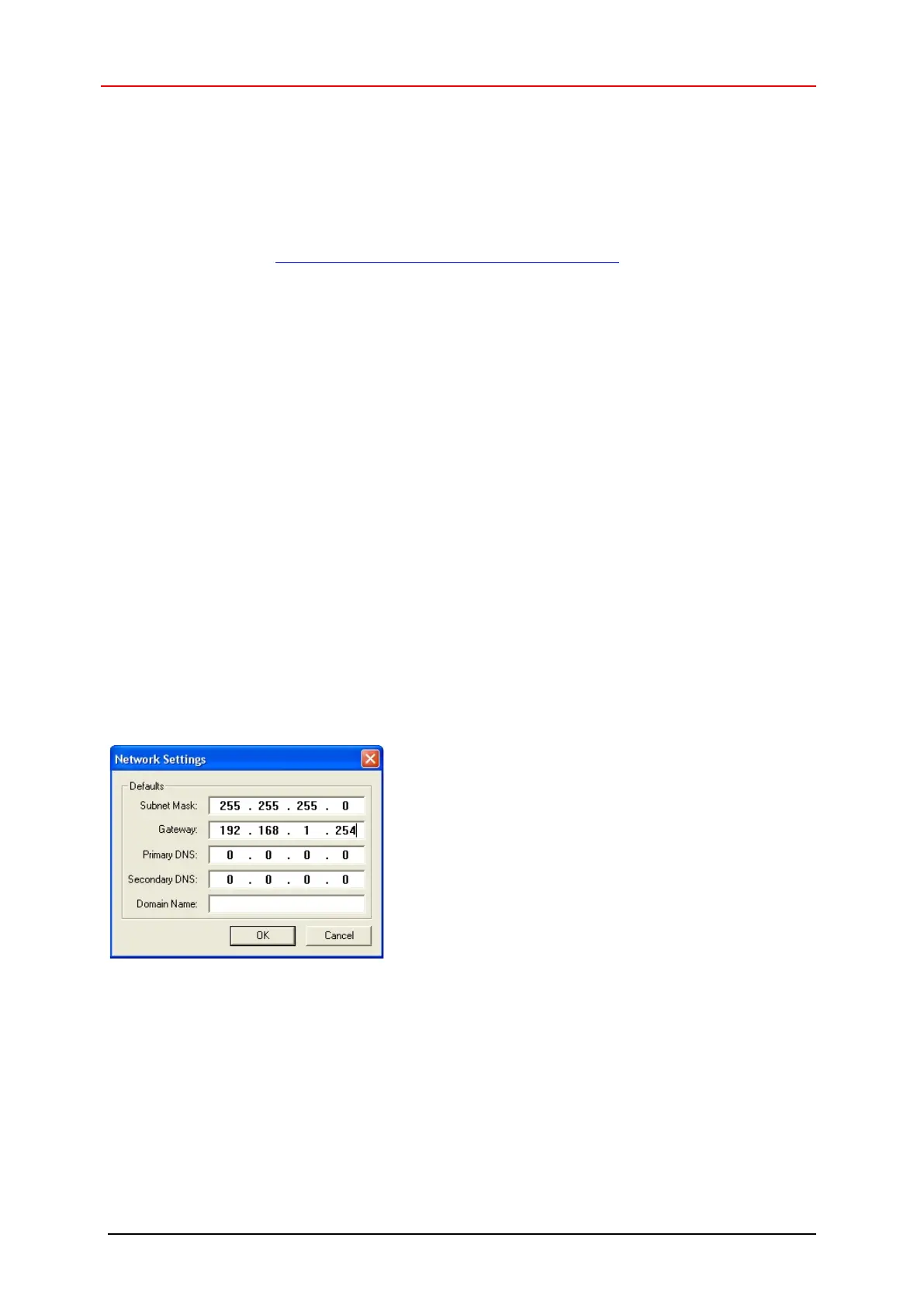

3. Make the following entries in the Tools -> Network Settings menu:
Subnet mask: desired subnet mask
Gateway: desired Default Gateway IP address
Primary DNS, Secondary DNS, and Domain name: are not supported
