CAUTION!
It is recommended that the selector be disengaged when the spindle is not
running. Never have the feed engaged when the spindle RPM is over 3000.
Always leave the selector in the disengaged position unless the feed function is
being used.
4.2.11 Fine Feed Direction Shaft

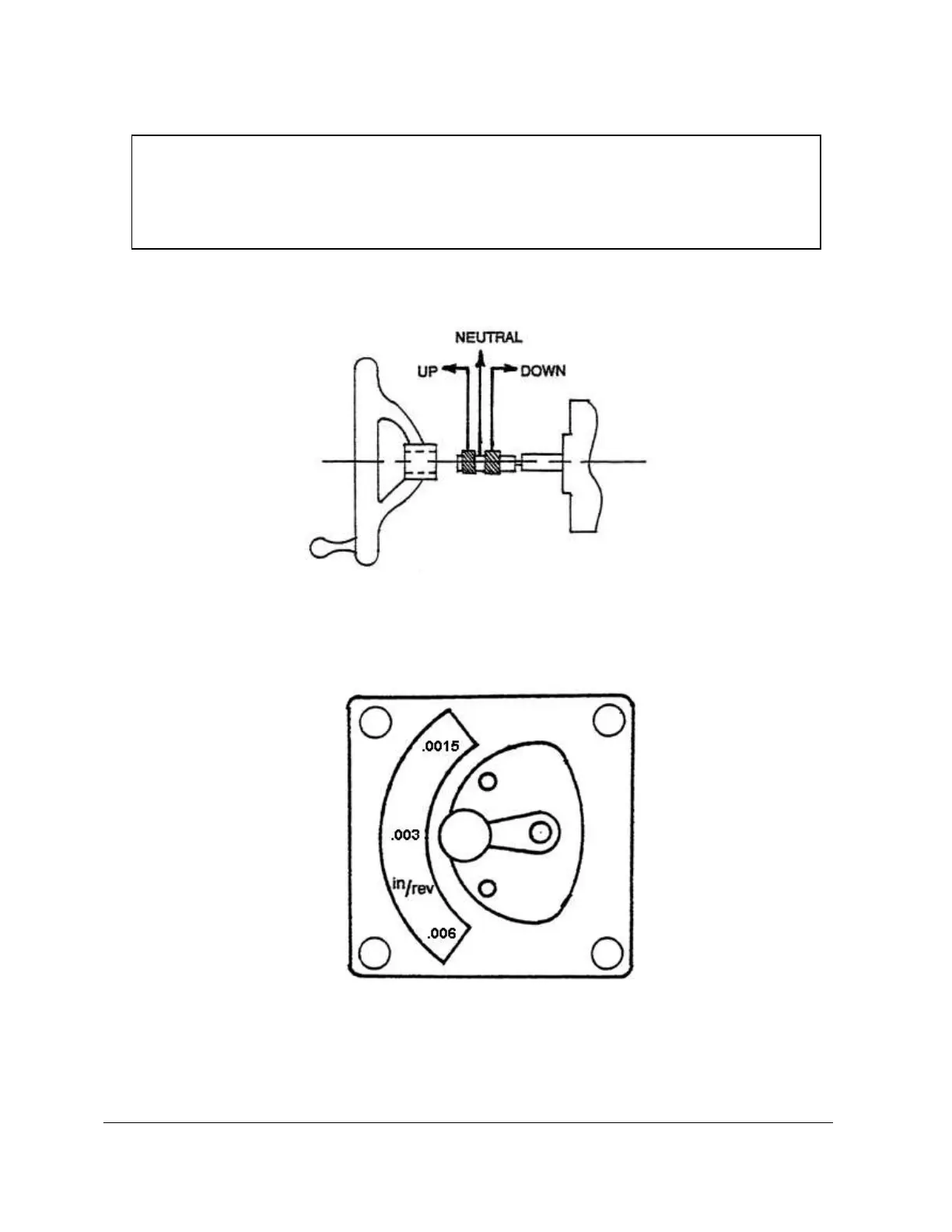

The direction of the fine feed is set by the position of the fine feed direction shaft.
IN sets the direction down, OUT sets the direction up, and NEUTRAL in the middle.
4.2.12 Quill Feed Selector
Figure 4.2.12 Quill Feed Selector for
the K3KMX
This selector is used to set the quill feed speed.
