Where:
A.G.E. Mill: A straight line from one X Y point to another.
A.G.E. Arc: Any part of a circle.
End A.G.E.: Ends the A.G.E. programming for the Irregular Pocket or Irregular
Profile.
Abort A.G.E.: Aborts all A.G.E. events. The data for all the events is lost.
8.2 A.G.E. Mill Prompts
Press the A.G.E. Mill key.
Prompts in A.G.E. Mill programming:
Tangent: this refers to the tangency of the mill to the previous event. See
Section 8.10 for a discussion of tangency.
X END: is the X dimension to the end of the mill cut; incremental is X Begin
Y END: is the Y dimension to the end of the mill cut; incremental is Y Begin
CONRAD: is the dimension of a tangential radius to the next event
LENGTH: is the length of the mill from beginning to end

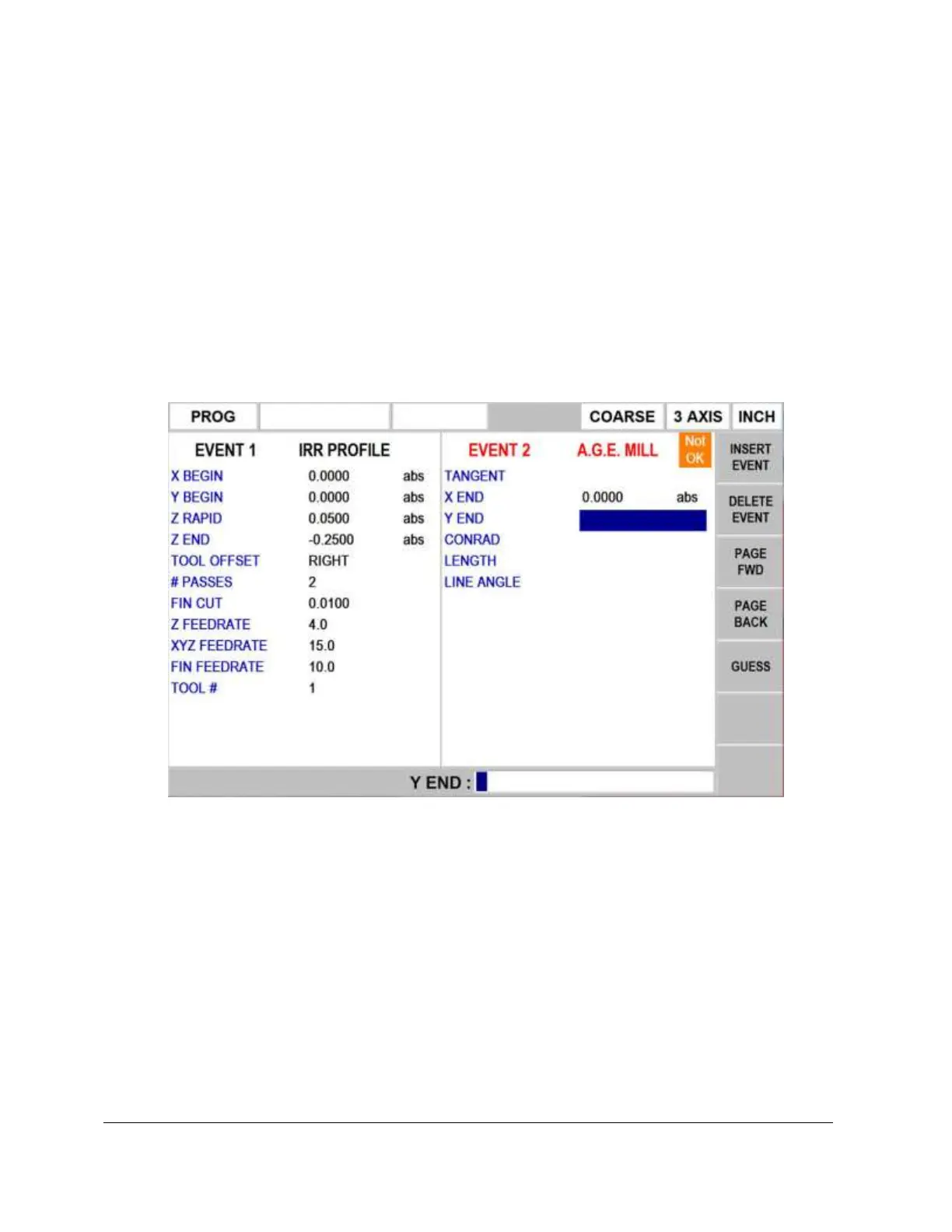

FIGURE 8.2 A.G.E. Mill prompts. Enter what you know, skip or guess the ones you don’t.
