Input the known data in the same way you would program an event. When all of the
data is entered, the solution (or solutions if there are more than one) will be shown on
the left side of the information area. Use the Up and Down arrow keys to move the
highlight.

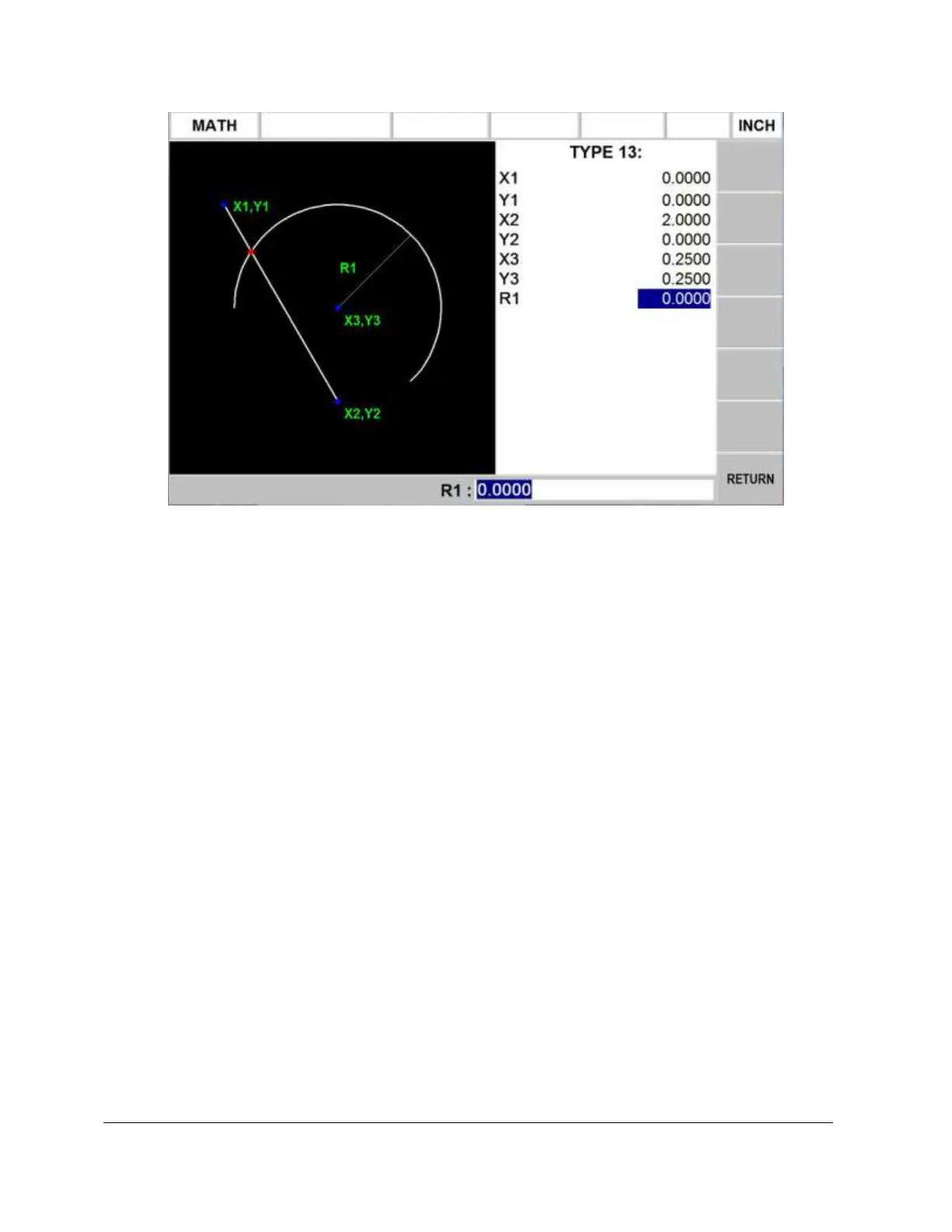

There are often multiple solutions for geometry problems. For example, in the Type 13
example above, a line will often intersect an arc or circle in two places. In these cases all
possible solutions will be calculated and displayed. In most cases a careful inspection of the
print and some common sense will tell you which solution applies to your problem.
